PISTON KIT 84-86 KTM125 54.00, FORGED WOSSNER KIT 8030DC
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

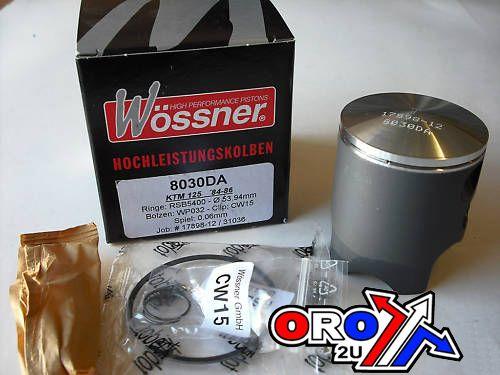

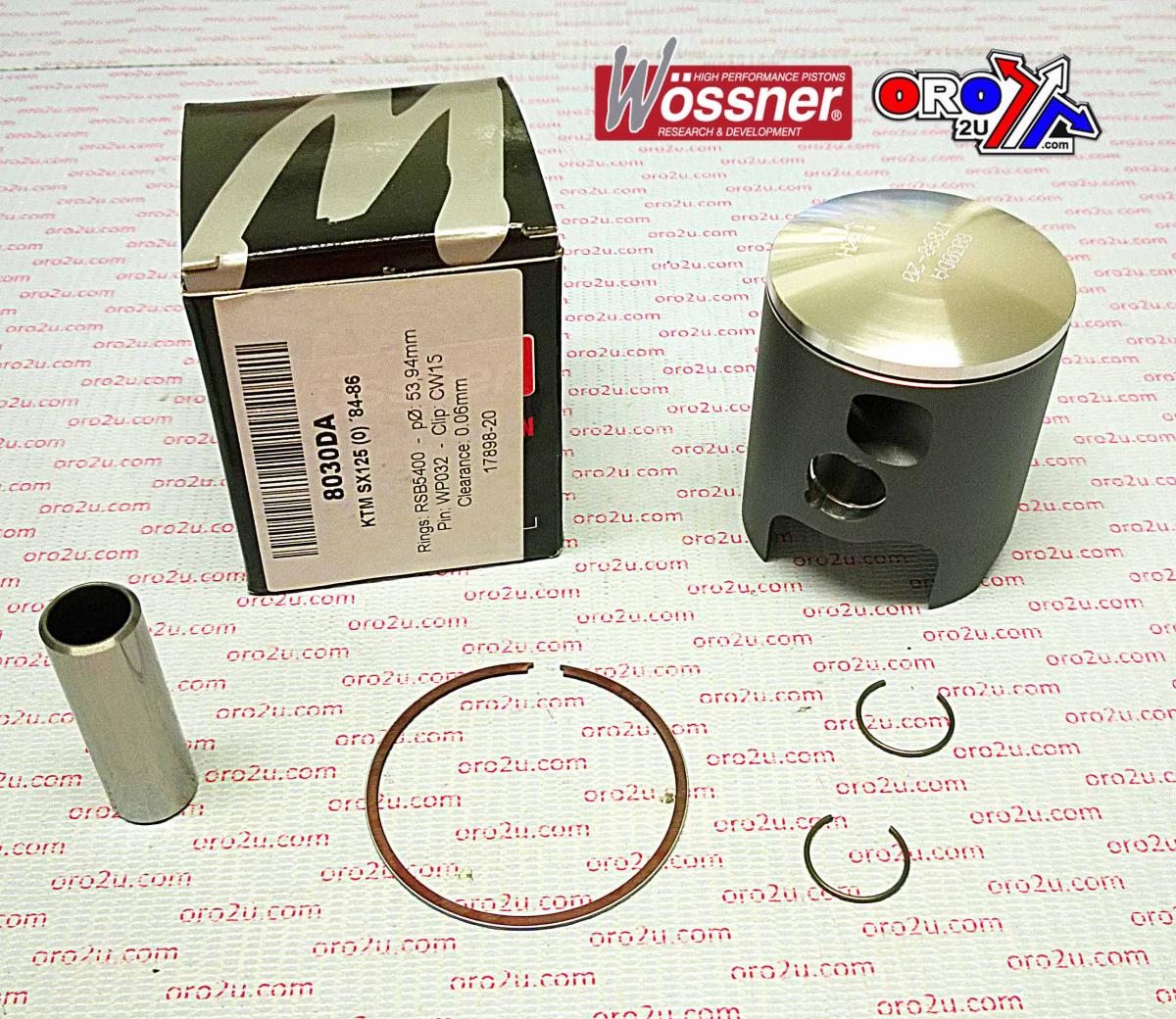

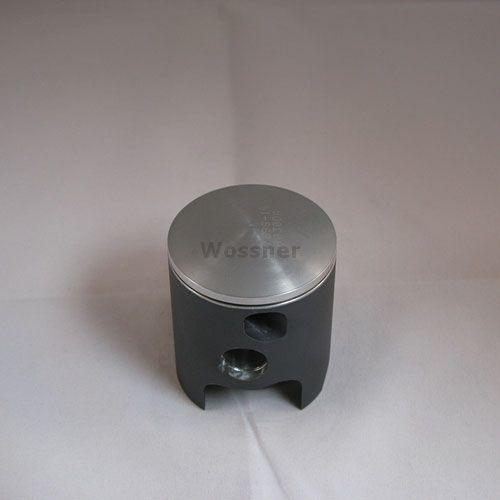

Wossner forged piston kit with a 54.00mm bore size (53.96mm actual) and a 30.00mm compression height. This kit features an elliptical design for uniform bearing surface contact and even thrust load distribution. Manufactured in Germany, it includes piston, lock (CW15), pin (WP032), and ring set (RSB5400). Specifications: 125 cm³ displacement, 54.50mm stroke, 0.06mm clearance.
- SKU
- 56-W051.C.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| KTM | 125 SX | 1984 |
| KTM | 125 SX | 1985 |
| KTM | 125 SX | 1986 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 254409
FULL DESCRIPTION
Wossner Forged Piston Kit for KTM SX 125 (1984-1986)
Upgrade your KTM SX 125 engine with this high-performance forged piston kit from Wossner. Engineered in Germany, this kit is designed for optimal combustion efficiency and superior durability.
The Wossner piston features an advanced elliptical design that ensures uniform bearing surface contact. This innovative design minimizes localized pressure, preventing piston collapse and evenly distributing thrust loads for a smoother running engine and extended component life.
Key Features:
- Forged Construction: Provides exceptional strength and reliability for demanding performance.
- Optimized Heat Transfer: Designed to efficiently transfer heat to the cylinder walls, promoting optimal operating temperatures.
- Elliptical Design: Prevents localized pressure and piston collapse for improved longevity.
- Complete Kit: Includes the piston, lock (CW15), pin (WP032), and ring set (RSB5400).
Specifications:
- Bore Size: 54.00mm (actual 53.96mm)
- Displacement: 125 cm³
- Stroke: 54.50mm
- Clearance: 0.06mm
- Compression Height: 30.00mm
- Piston Type: Forged
