PISTON KIT 83-88 500 87.50mm, WOSSNER 8037D150 HUSQVARNA
Piston kit with 87.50mm bore and 87.42mm actual bore size from Wossner, part number 8037D150 (+1.50mm oversizing). This kit includes lock part number CW20, pin part number WP086, and ring set part number RSC8750. The piston is forged and designed for superior strength and effective combustion chamber heat transfer to cylinder walls. It features an elliptical design for uniform bearing surface under piston heat expansion, distributing thrust loads evenly to prevent piston collapse. Made in Germany. For use with 500cc engines, 84.00mm stroke, 42.00mm compression height, and 0.08mm clearance. Compression ratio is 2 stroke.
- SKU
- 56-W091+1.50
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner 87.50mm Piston Kit for Husqvarna CR 500
This Wossner piston kit is designed to meet the high performance demands of your Husqvarna CR 500. Featuring a precise 87.50mm bore size, this kit represents a +1.50mm oversize from the standard specification, ensuring optimal fit and performance. Crafted with superior strength and advanced design principles, Wossner forged pistons are engineered for durability and power.

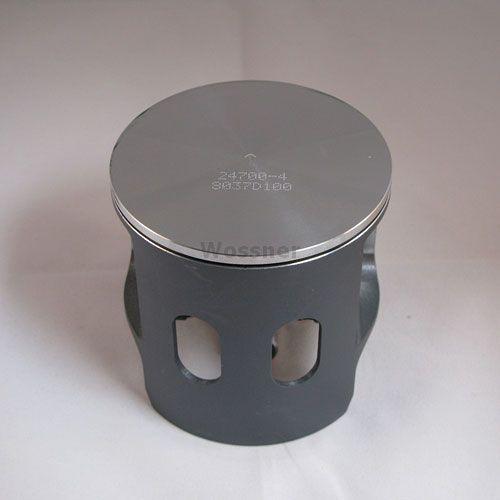

These pistons excel in efficiently transferring combustion chamber heat to the cylinder walls, a crucial factor in engine longevity and consistent performance. The elliptical design of the piston ensures a more uniform bearing surface under the heat expansion of the piston. This design distributes thrust loads more evenly, preventing localized pressure and mitigating piston collapse. Manufactured in Germany, Wossner pistons adhere to stringent quality standards.
- 87.50mm Bore Piston Kit
- Forged construction for superior strength and durability
- Engineered for optimal heat transfer
- Elliptical design for even thrust load distribution
- Made in Germany
- Includes Lock P/N CW20, Pin P/N WP086, and Ring Set P/N RSC8750
Specifications:
- Display (cm3): 500
- Hub Stroke (mm): 84.00
- Clearance (mm): 0.08
- Compression Height (mm): 42.00
- Theoretical Weight (G): 484
