PISTON KIT 83-03 KX60 44.00, WOSSNER 8232D100 KAWASAKI MX
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

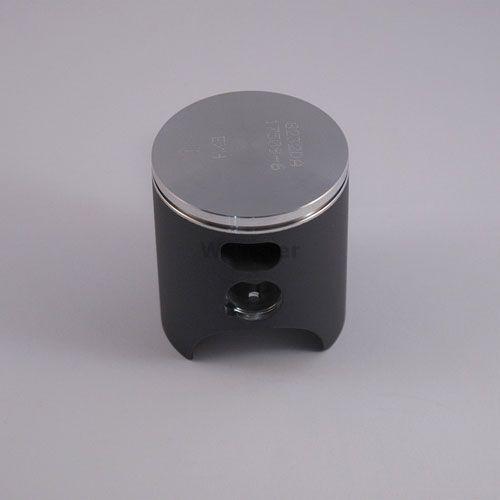

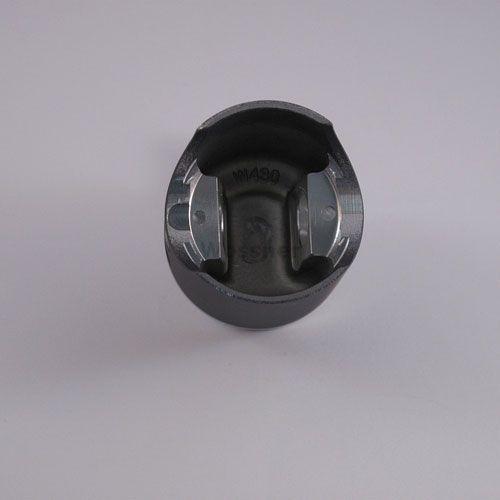

Wossner Piston Kit 8232D100 is a +1.00 oversize forged piston with a 44.00mm bore. This piston is manufactured in Germany for high strength and excellent thermal performance. Its elliptical design maintains an even bearing surface during heat expansion, reducing stress concentrations and helping to prevent piston failure. Features include enhanced durability, consistent load distribution during thermal expansion, and optimal heat transfer. Specifications: Bore 44.00 mm, Actual Piston Diameter 43.95 mm, Stroke 41.60 mm, Displacement 60 cm³, Clearance 0.05 mm, Compression Height 23.50 mm, Wossner Compression Ratio 2-stroke, OEM Compression Ratio 2-stroke. Cross-Reference OEM Part Numbers: Wossner Piston 8232D100, Lock CW12, Pin WP091, Ring Set RSB4400, Rod P2001, Internal Part No 56-W648.P4.WO.
- SKU
- 56-W648.P4.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (25)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 60 | 1983 |
| KAWASAKI | KX 60 | 1984 |
| KAWASAKI | KX 60 | 1985 |
| KAWASAKI | KX 60 | 1986 |
| KAWASAKI | KX 60 | 1987 |
| KAWASAKI | KX 60 | 1988 |
| KAWASAKI | KX 60 | 1989 |
| KAWASAKI | KX 60 | 1990 |
| KAWASAKI | KX 60 | 1991 |
| KAWASAKI | KX 60 | 1992 |
| KAWASAKI | KX 60 | 1993 |
| KAWASAKI | KX 60 | 1994 |
| KAWASAKI | KX 60 | 1995 |
| KAWASAKI | KX 60 | 1996 |
| KAWASAKI | KX 60 | 1997 |
| KAWASAKI | KX 60 | 1998 |
| KAWASAKI | KX 60 | 1999 |
| KAWASAKI | KX 60 | 2000 |
| KAWASAKI | KX 60 | 2001 |
| KAWASAKI | KX 60 | 2002 |
| KAWASAKI | KX 60 | 2003 |
| KAWASAKI | KX 60 | 2004 |
| SUZUKI | RM 60 | 2003 |
| SUZUKI | RM 60 | 2004 |
| SUZUKI | RM 60 | 2005 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 44.00mm
- Variant Id
- 257331
FULL DESCRIPTION
Wossner Forged Piston Kit 8232D100 - 44.00mm Bore
Elevate your motorcycle's performance with the Wossner Piston Kit 8232D100. This premium, +1.00 oversize forged piston is meticulously engineered for specific Kawasaki KX60 models, ensuring a precise fit and optimal power delivery. Manufactured in Germany, Wossner pistons are renowned for their superior strength and exceptional thermal efficiency, making them ideal for demanding riding conditions.
The advanced elliptical design of this piston is a key feature, promoting an even bearing surface even as the piston expands with heat. This intelligent engineering reduces stress concentrations, significantly lowering the risk of piston failure and contributing to a longer engine life.
Key Features:
- Forged construction for enhanced durability and strength.
- Elliptical profile ensures consistent load distribution during thermal expansion.
- Engineered for optimal heat transfer to cylinder walls.
- Precision manufactured in Germany for superior quality.
Specifications:
- Bore: 44.00 mm
- Actual Piston Diameter: 43.95 mm
- Stroke: 41.60 mm
- Displacement: 60 cm³
- Clearance: 0.05 mm
- Compression Height: 23.50 mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
Component Details:
- Piston: Wossner 8232D100
- Lock: CW12
- Pin: WP091
- Ring Set: RSB4400
- Rod: P2001
