PISTON KIT 81-84 RM125 54.75, WOSSNER 8124D075 SUZUKI
Wossner forged piston kit with a 54.75mm bore (54.69mm) designed for Suzuki RM125 models from 1981 to 1984. Manufactured in Germany, it provides enhanced durability and optimized heat transfer. Its elliptical shape ensures a consistent bearing surface during expansion, effectively distributing thrust loads and reducing localized stress to help prevent piston failure. Features include forged piston construction for superior strength, designed for efficient combustion heat transfer to cylinder walls, elliptical profile ensures uniform expansion and load distribution, and Made in Germany. Specifications: Bore size 54.75mm (54.69mm), Display volume 123 cm³, Stroke 54.00 mm, Clearance 0.06 mm, Compression height 29.50 mm, Theoretical weight Not specified, Compression ratio 2-stroke (Wossner and OEM). Cross-Reference OEM Part Numbers: Piston 8124D075, Lock CW14, Pin WP025, Ring Set RAB5475 x 2, Connecting Rod Kit P2040.
- SKU
- 56-W511+075.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit for Suzuki RM125 (1981-1984)
This Wossner forged piston kit is precision engineered for Suzuki RM125 motorcycles manufactured between 1981 and 1984. Featuring a nominal bore size of 54.75mm (actual 54.69mm), this German-made piston offers superior strength and improved heat transfer characteristics.
The innovative elliptical profile of the piston ensures a consistent bearing surface as it expands with heat. This design effectively distributes thrust loads across the piston's skirt, preventing localized stress and enhancing durability to help avert premature piston failure.
Key Features:
- Forged piston construction for exceptional strength and resilience.
- Engineered for optimized heat transfer from the combustion chamber to the cylinder walls.
- Elliptical piston profile for uniform expansion and even load distribution.
- High-quality manufacturing standards, made in Germany.
Specifications:
- Bore Size: 54.75mm (54.69mm)
- Display Volume: 123 cm³
- Stroke: 54.00 mm
- Clearance: 0.06 mm
- Compression Height: 29.50 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)

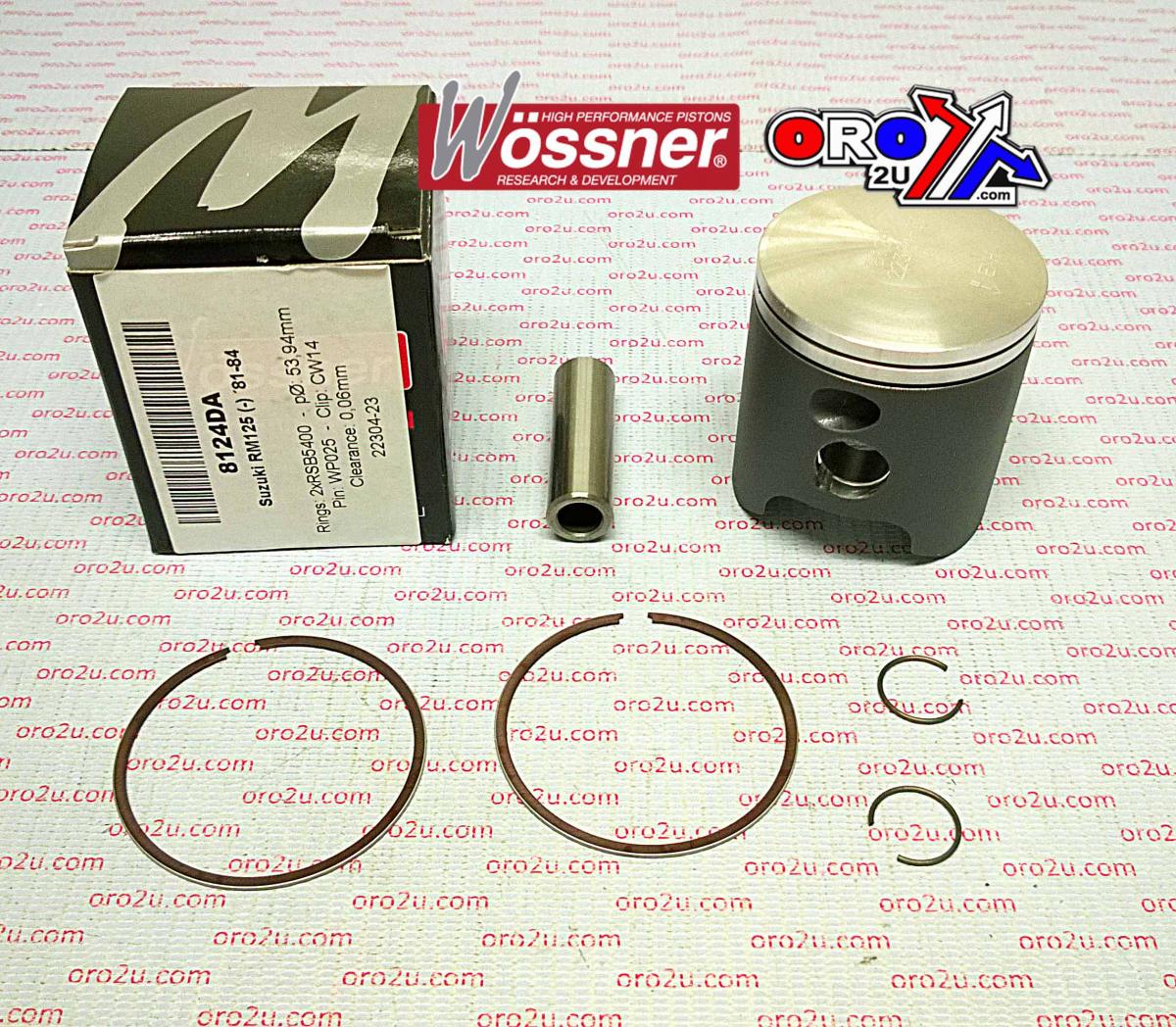

Includes:
- Forged Piston
- Piston Pin (WP025)
- Piston Rings (RAB5475 x 2)
- Circlips (CW14)
