PISTON KIT 80-84 PE175 63.00, FORGED WOSSNER 8193D100

Wossner Forged Piston Kit 63.00mm for PE175

Upgrade your Suzuki PE175 with this high-performance Wossner forged piston kit. Manufactured in Germany, this piston is engineered for superior strength and optimal engine performance.

The forged construction provides exceptional durability, while the piston's elliptical design ensures uniform load distribution under heat expansion. This intelligent design minimizes localized pressure and evenly distributes thrust loads, preventing piston collapse and promoting longevity. Furthermore, the piston is designed for optimized heat transfer to the cylinder walls, contributing to efficient combustion.

Key Features:

• Forged Construction: Offers superior strength and durability for demanding use.
• Optimized Heat Transfer: Enhances combustion efficiency.
• Elliptical Design: Provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads.
• High-Quality Manufacturing: Made in Germany for precision and reliability.

Specifications:

• Bore: 63.00mm
• Diameter: 62.94mm
• Displacement: 172 cm³
• Stroke: 57.00mm
• Clearance: 0.06mm
• Compression Height: 31.80mm
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke

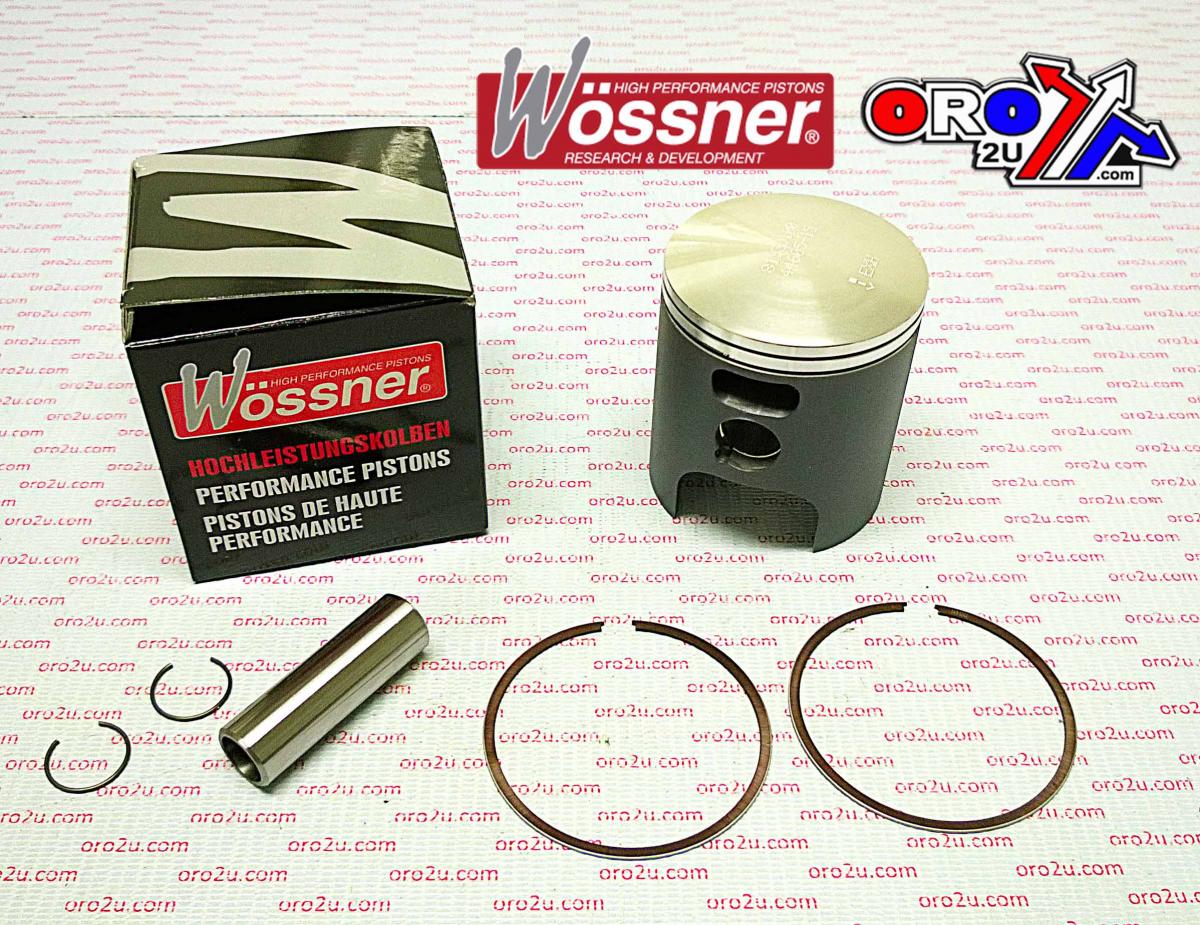

Included Components:

• Wossner Piston (PN# 8193D100)
• Lock P/N: CW16
• Pin P/N: WP041
• Ring Set P/N: RSB6300 (x2)
