PISTON KIT 80-84 KDX250 70.00, FORGED WOSSNER 8203DA 13001-1004, KAWASAKI KX250 78-81
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

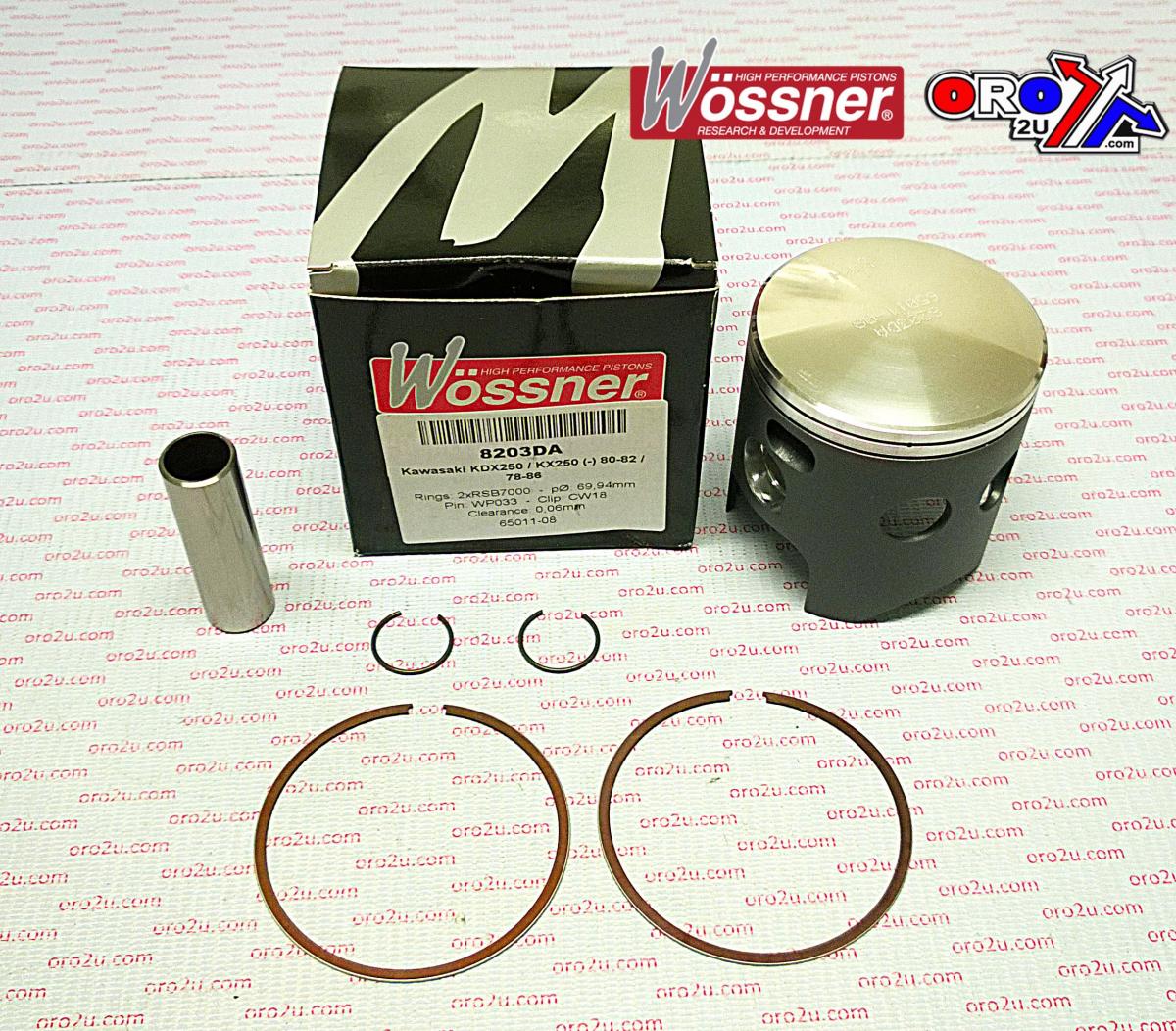

Wossner forged piston kit with a 70.00mm bore size, engineered for superior strength and optimal heat transfer. This piston features an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Specifications include actual bore diameter of 69.94mm, displacement of 249 cm³, stroke of 64.90mm, clearance of 0.06mm, compression height of 31.50mm, lock part number CW18, pin part number WP033, and ring set part number RSB7000 x 2. Cross-reference OEM part numbers include 13001-1004 and 439M07000.
- SKU
- 56-W209.A.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (21)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KDX 250 | 1980 |
| KAWASAKI | KDX 250 | 1981 |
| KAWASAKI | KDX 250 | 1982 |
| KAWASAKI | KDX 250 | 1983 |
| KAWASAKI | KDX 250 | 1984 |
| KAWASAKI | KDX 250 | 1991 |
| KAWASAKI | KDX 250 | 1992 |
| KAWASAKI | KDX 250 | 1993 |
| KAWASAKI | KDX 250 | 1994 |
| KAWASAKI | KDX 250 | 1995 |
| KAWASAKI | KDX 250 | 1996 |
| KAWASAKI | KDX 250 | 1997 |
| KAWASAKI | KX 250 | 1978 |
| KAWASAKI | KX 250 | 1979 |
| KAWASAKI | KX 250 | 1980 |
| KAWASAKI | KX 250 | 1981 |
| KAWASAKI | KX 250 | 1982 |
| KAWASAKI | KX 250 | 1983 |
| KAWASAKI | KX 250 | 1984 |
| KAWASAKI | KX 250 | 1985 |
| KAWASAKI | KX 250 | 1986 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 70mm
- Variant Id
- 255001
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KDX250 & KX250
Enhance the performance and durability of your Kawasaki motorcycle with this high-quality Wossner forged piston kit. Engineered for superior strength and optimal heat transfer, this piston is designed to withstand the demands of high-performance riding.
The advanced elliptical design ensures uniform bearing surface under heat expansion, effectively reducing localized pressure and preventing piston collapse for a longer lifespan and consistent performance. Manufactured with precision in Germany, this piston kit represents the pinnacle of engineering and reliability.
Key Features:
- Forged Construction: Provides significantly increased strength and durability over cast pistons.
- Optimized Heat Transfer: Promotes efficient combustion chamber performance.
- Elliptical Design: Ensures even thrust load distribution and reduces the risk of piston collapse under heat.
- Precision Manufacturing: Crafted in Germany for exceptional quality and reliability.
Specifications:
- Bore Size: 70.00mm
- Actual Bore Diameter: 69.94mm
- Piston Clearance: 0.06mm
- Compression Height: 31.50mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB7000 x 2
Cross-Reference OEM Part Numbers:
- 13001-1004
- 439M07000
