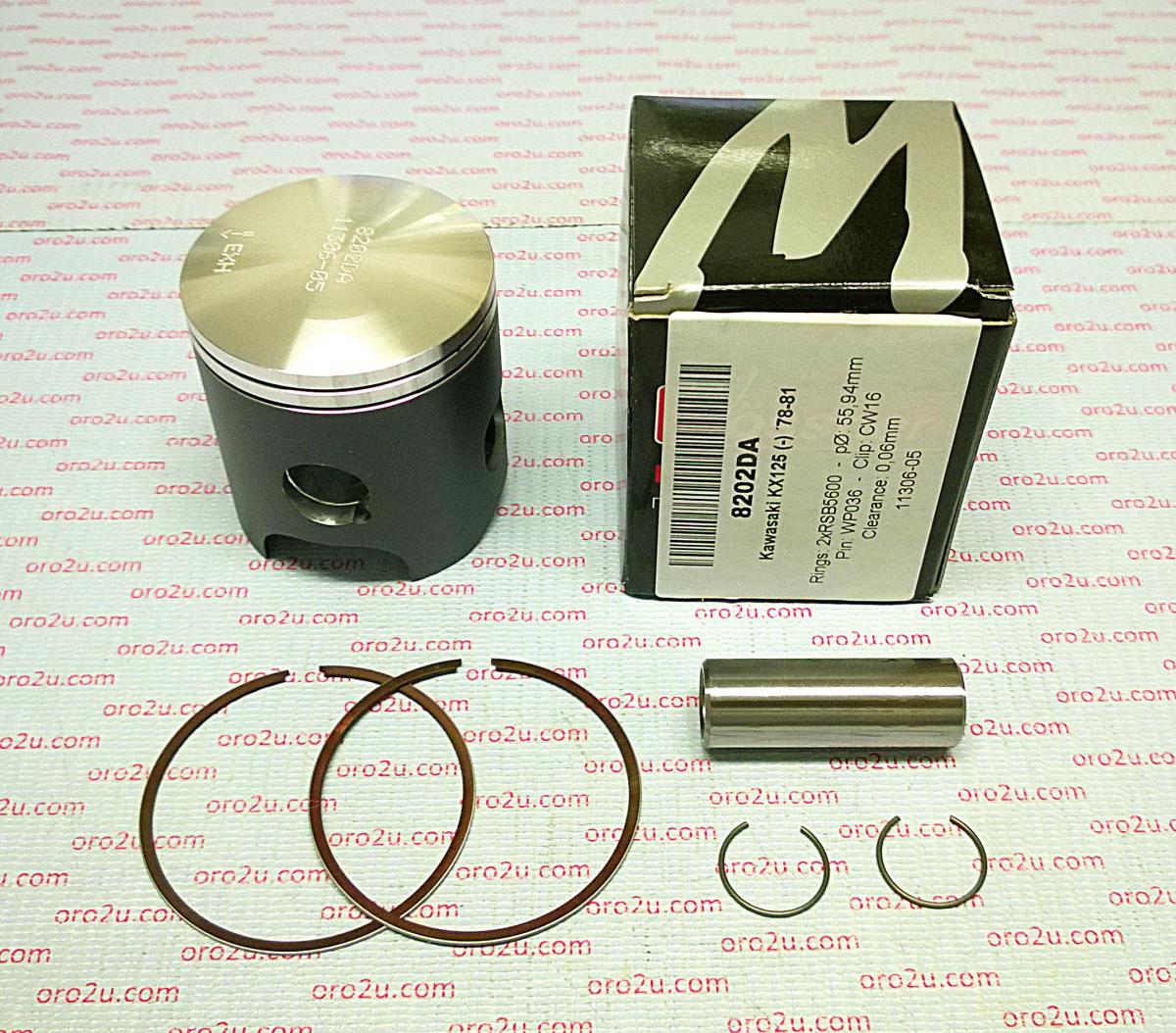

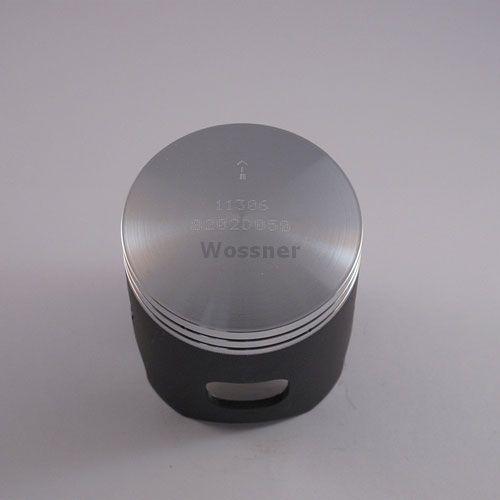

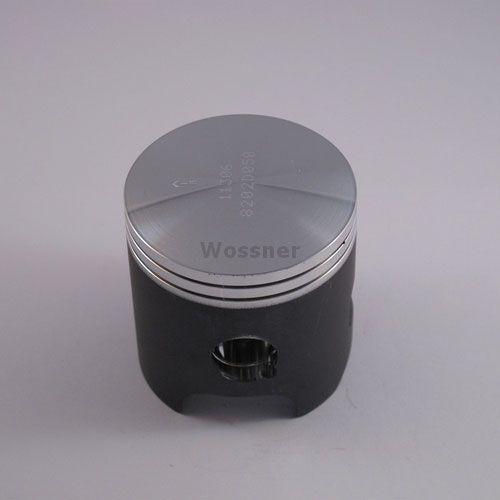

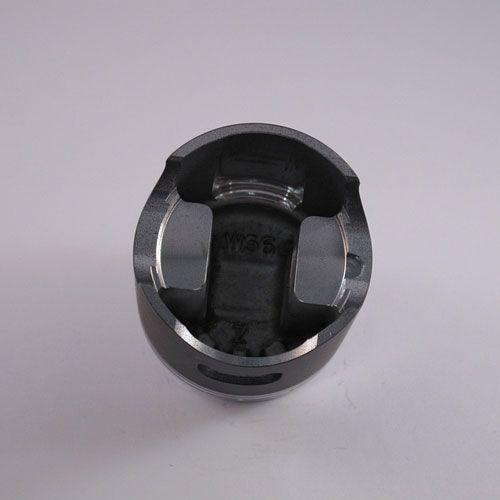

PISTON KIT 78-81 KX125 56.00, FORGED WOSSNER 8202DA 13001-1008
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit 56.00 mm bore size, actual bore 55.94 mm, stroke 50.50 mm, clearance 0.06 mm, compression height 29.70 mm, displacement 125 cm³, designed for 2-stroke engines. Features forged construction for enhanced durability and strength, optimized heat transfer for improved performance, and elliptical design for uniform bearing surface and reduced wear. Manufactured in Germany. Wossner Part No. 8202DA. Cross-references OEM Piston 13001-1008. Includes Lock P/N CW16, Pin P/N WP036, Ring Set P/N RSB5600 x 2, and Connecting Rod Kit P/N P2037.
- SKU
- 56-W438.00A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 125 | 1978 |
| KAWASAKI | KX 125 | 1979 |
| KAWASAKI | KX 125 | 1980 |
| KAWASAKI | KX 125 | 1981 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56mm
- Variant Id
- 255598
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KX125 (1978-1981)
Upgrade your Kawasaki KX125's performance with this high-quality forged piston kit from Wossner. Engineered for durability and optimal power output, this piston is manufactured in Germany to stringent standards.
Key Features:
- Forged Construction: Provides superior strength and resistance to extreme temperatures and pressures, ensuring longevity.
- Optimized Heat Transfer: Advanced material properties enhance heat dissipation for improved engine efficiency and performance.
- Elliptical Design: This intelligent design promotes uniform load distribution across the piston's bearing surface, reducing concentrated stress and minimizing wear.
- 2-Stroke Specific: Developed exclusively for 2-stroke engine applications.
Specifications:
- Bore Size: 56.00 mm
- Actual Bore: 55.94 mm
- Stroke: 50.50 mm
- Clearance: 0.06 mm
- Compression Height: 29.70 mm
- Compression Ratio: 2-stroke
- Displacement: 125 cm³
- Origin: Made in Germany
Included Components:
- Wossner Part Number: 8202DA
- Lock Ring: CW16
- Piston Pin: WP036
- Ring Sets: RSB5600 (x2)
- Connecting Rod Kit: P2037
Cross-Reference OEM Part Number:
- Kawasaki: 13001-1008
