2Bros Parts

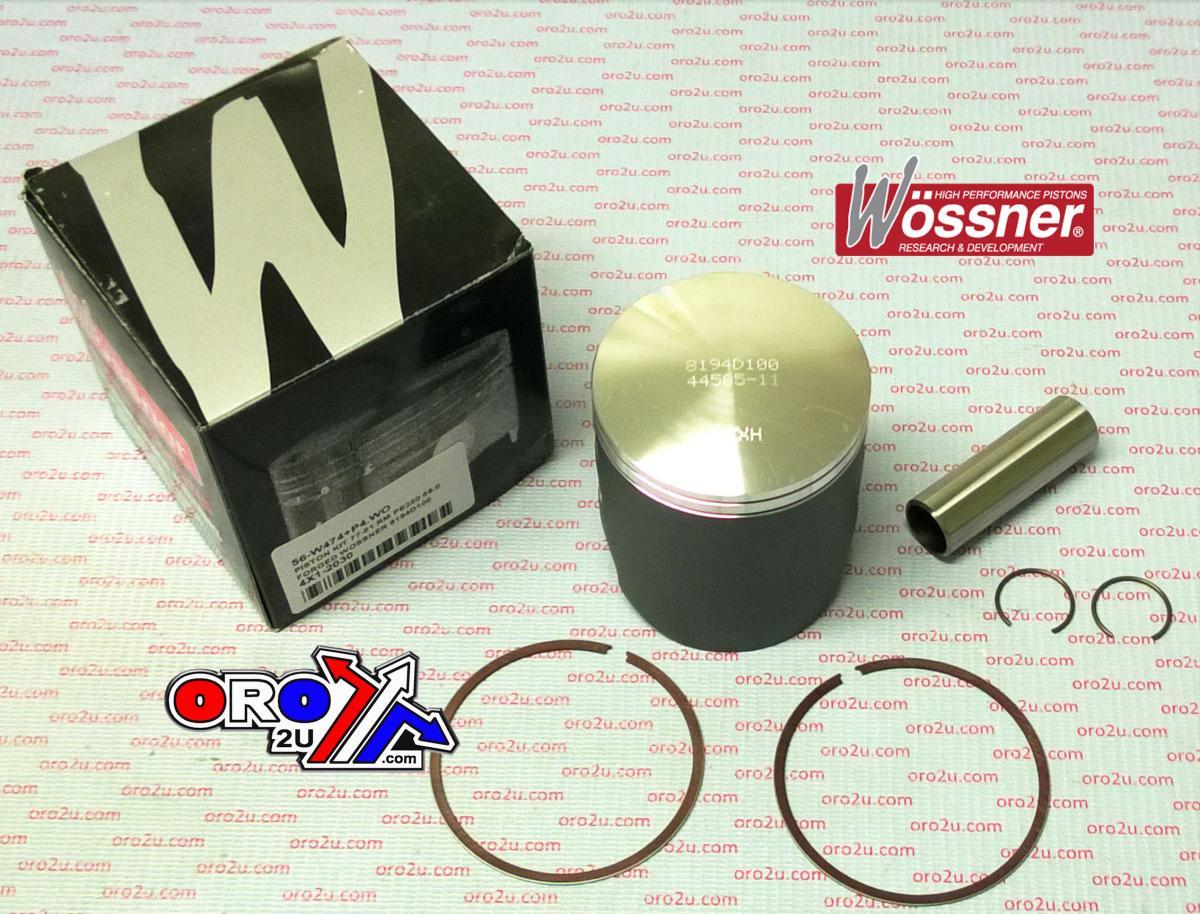

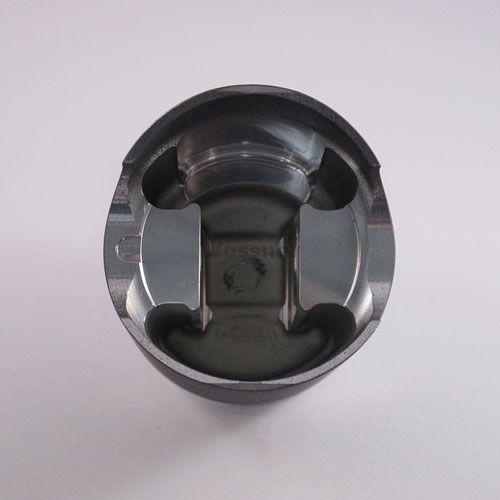

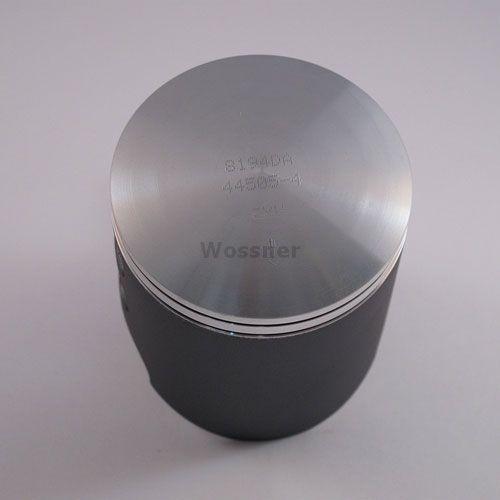

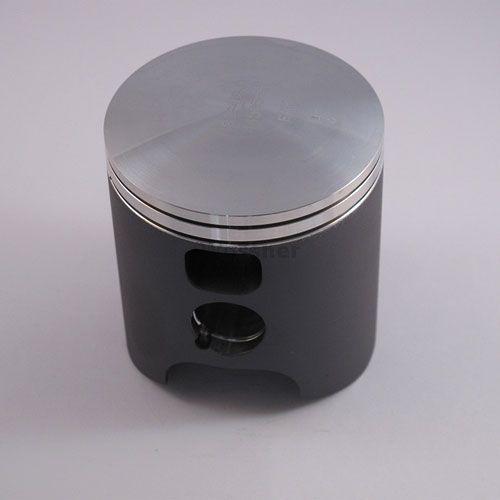

PISTON KIT 77-81 RM PE250 67.0, FORGED WOSSNER 8194DA 12110-41603

£141.59Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner 67mm Bore Piston Kit (PN# 8194DA) is a forged piston designed for high strength, efficient heat transfer, and durability. Its elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this piston meets OEM compression standards. Features include a high-strength forged piston for durability and performance, optimized heat transfer for efficient combustion, and an elliptical design that prevents piston collapse and ensures even load distribution. Specifications: Bore: 67mm, Actual diameter: 66.94mm, Display (cm³): 246, Stroke (mm): 55.50, Clearance (mm): 0.05, Compression Ratio: OEM, OEM Compression Ratio: 11.10:1, Dome Volume (cm³): -0.20, Compression Height (mm): 22.80. Cross-Reference OEM Part Numbers: Lock: CW18, Pin: WP033, Ring Set: RSB6700 X 2, OEM Part Numbers: 12110-41603, 405M06700.

Specifications
SKU
56-W474+P0.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (5)

MakeModelYear
SUZUKIPE 2501977
SUZUKIPE 2501978
SUZUKIPE 2501979
SUZUKIPE 2501980
SUZUKIPE 2501981
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
67mm
Variant Id
256026
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit

Enhance the performance and durability of your motorcycle with the Wossner 67mm Bore Piston Kit. Engineered for demanding applications, this forged piston offers superior strength and efficient heat transfer for optimal engine operation. Its innovative elliptical design ensures a uniform bearing surface even under extreme temperatures, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Key Features:

  • High-strength forged construction for exceptional durability and performance
  • Optimized heat transfer for improved combustion efficiency
  • Elliptical piston design to prevent collapse and ensure even load distribution
  • Precision manufactured in Germany
  • Meets OEM compression standards

Specifications:

  • Bore Size: 67.0mm
  • Actual Piston Diameter: 66.94mm
  • Displacement: 246 cm³
  • Stroke: 55.50mm
  • Piston Clearance: 0.05mm
  • Compression Ratio: OEM
  • OEM Compression Ratio: 11.10:1
  • Dome Volume: -0.20 cm³
  • Compression Height: 22.80mm

Included Components:

  • Lock: CW18
  • Pin: WP033
  • Ring Set: RSB6700 (x2)

Cross-Reference OEM Part Numbers:

  • 12110-41603
  • 405M06700
