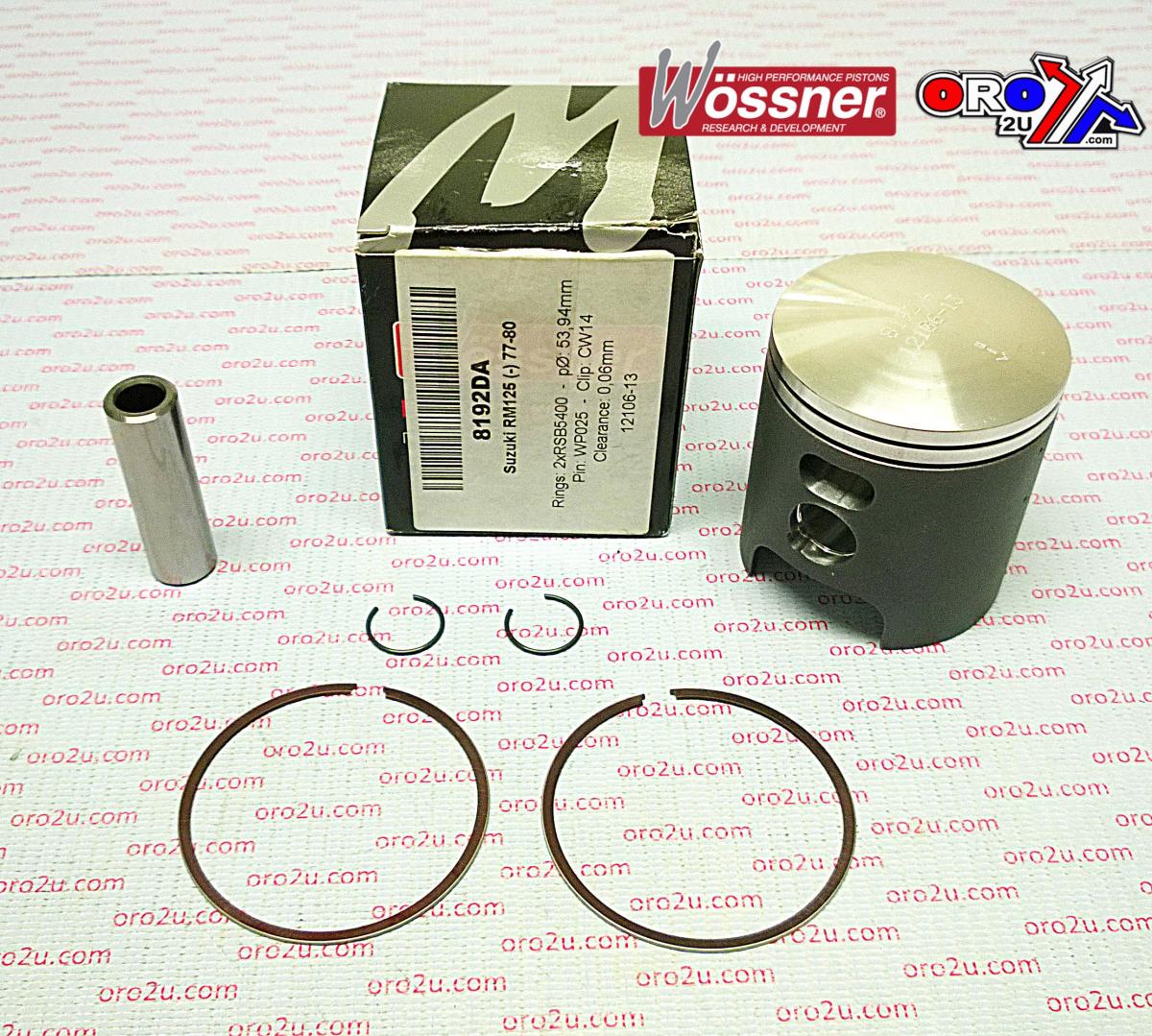

PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Wossner forged piston kit for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Features a forged piston for enhanced strength and durability, optimized heat transfer for efficient combustion, and an elliptical design to prevent piston collapse. Specifications include a bore size of 56.00mm, actual bore diameter of 55.94mm, displacement of 123 cm³, stroke of 54.00mm, clearance of 0.06mm, Wossner compression ratio of 2-Stroke, OEM compression ratio of 2-Stroke, dome volume of -0.30 cm³, and compression height of 30.50mm. Included components are lock part number CW14, pin part number WP025, and ring set part number RSB5600 x 2.
- SKU
- 56-W206+200.WO
- Brand
- Wossner
- Availability
- Out of Stock
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56mm
- Variant Id
- 254989
FULL DESCRIPTION
Wossner Forged Piston Kit 56.00mm
Enhance the performance and durability of your engine with this Wossner forged piston kit. Engineered for optimal heat transfer to cylinder walls, this piston promotes efficient combustion and helps maintain consistent engine temperatures. The advanced elliptical design ensures a uniform bearing surface, even under extreme heat expansion, which effectively reduces localized pressure and distributes thrust loads evenly to prevent piston collapse.
Key Features:
- Forged piston construction for superior strength and longevity.
- Designed for efficient heat transfer to the cylinder walls.
- Elliptical piston shape minimizes stress and prevents collapse.
- Manufactured to exacting standards in Germany.
Specifications:
- Bore Size: 56.00mm
- Actual Bore Diameter: 55.94mm
- Displacement: 123 cm³
- Stroke: 54.00mm
- Clearance: 0.06mm
- Dome Volume: -0.30 cm³
- Compression Height: 30.50mm
Included Components:
- Lock Part Number: CW14
- Pin Part Number: WP025
- Ring Set Part Number: RSB5600 (x2)
