PISTON KIT 76-82 YZ125 57.00, FORGED WOSSNER 8115D100

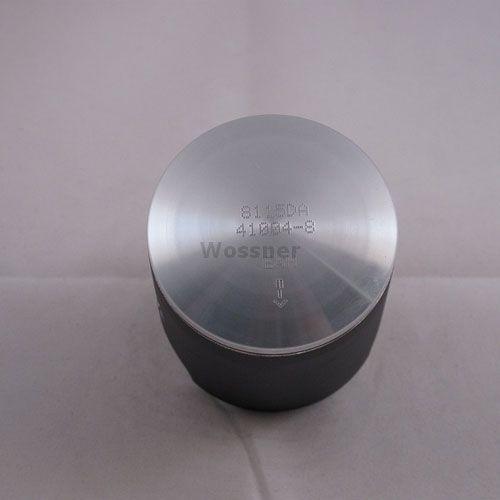

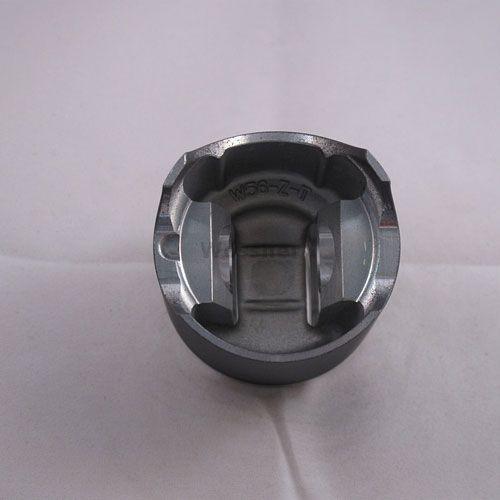

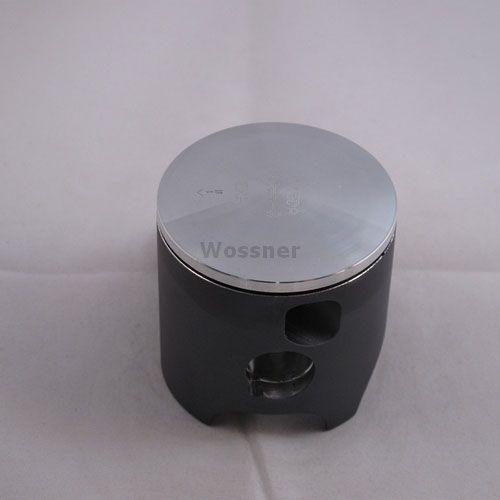

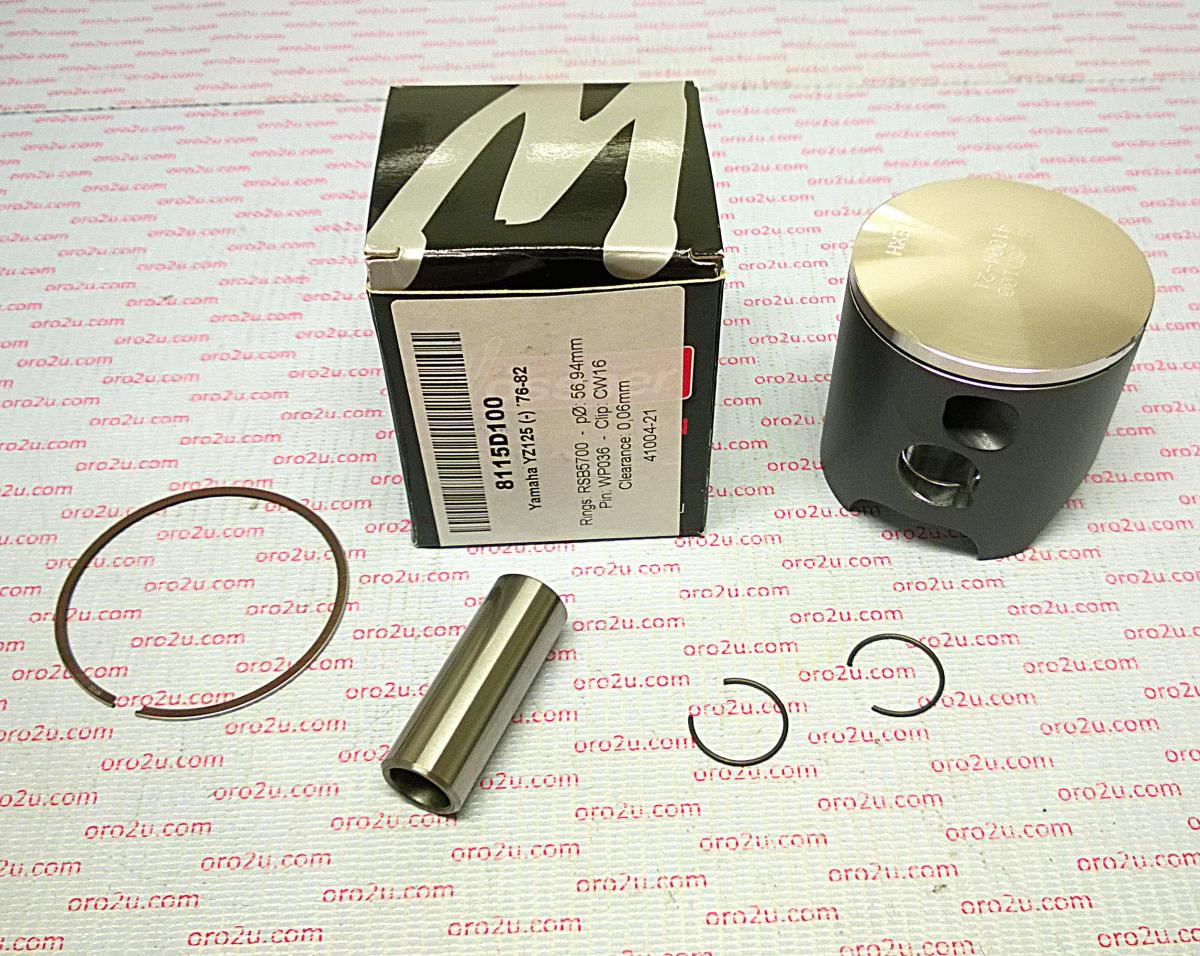

Wossner Forged Piston Kit for Yamaha YZ125

Enhance the performance and durability of your Yamaha YZ125 with this premium forged piston kit from Wossner. Engineered and manufactured in Germany, this piston is designed to withstand the demanding conditions of 2-stroke engines, offering superior strength and optimal heat transfer for improved power output.

The piston features an innovative elliptical design, which promotes even load distribution across the bearing surface. This reduces localized pressure points, minimizing wear and preventing piston collapse for extended engine life.

Key Features:

• Forged Construction: Provides exceptional strength and durability for high-performance applications.
• Optimized Heat Transfer: Ensures efficient dissipation of heat, contributing to consistent performance.
• Elliptical Design: Creates a uniform bearing surface, reducing wear and enhancing reliability.
• 2-Stroke Specific: Tailored for the unique requirements of 2-stroke engines.
• German Engineering: Manufactured to exacting standards in Germany.

Specifications:

• Bore Size: 57.00 mm
• Actual Bore: 56.94 mm
• Stroke: 56.50 mm
• Clearance: 0.06 mm
• Compression Height: 25.40 mm
• Dome Volume: +6.40 cm³
• Compression Ratio: 10.50:1 (OEM equivalent)
• Displacement: 123 cm³

Cross-Reference Information:

• Wossner Part Number: 8115D100
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5700
