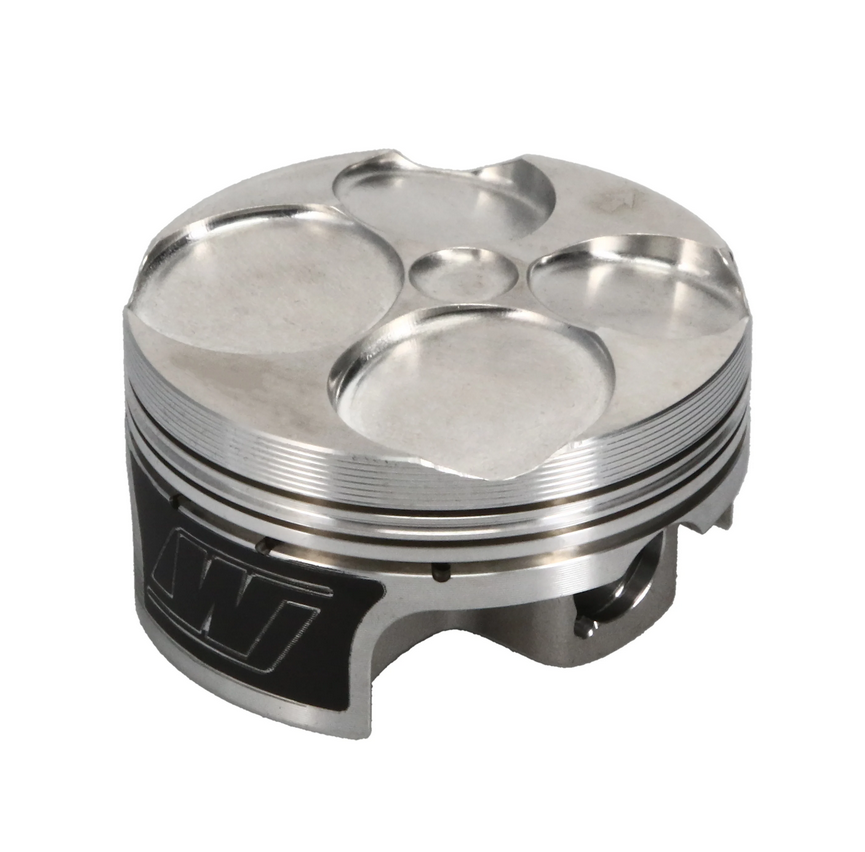

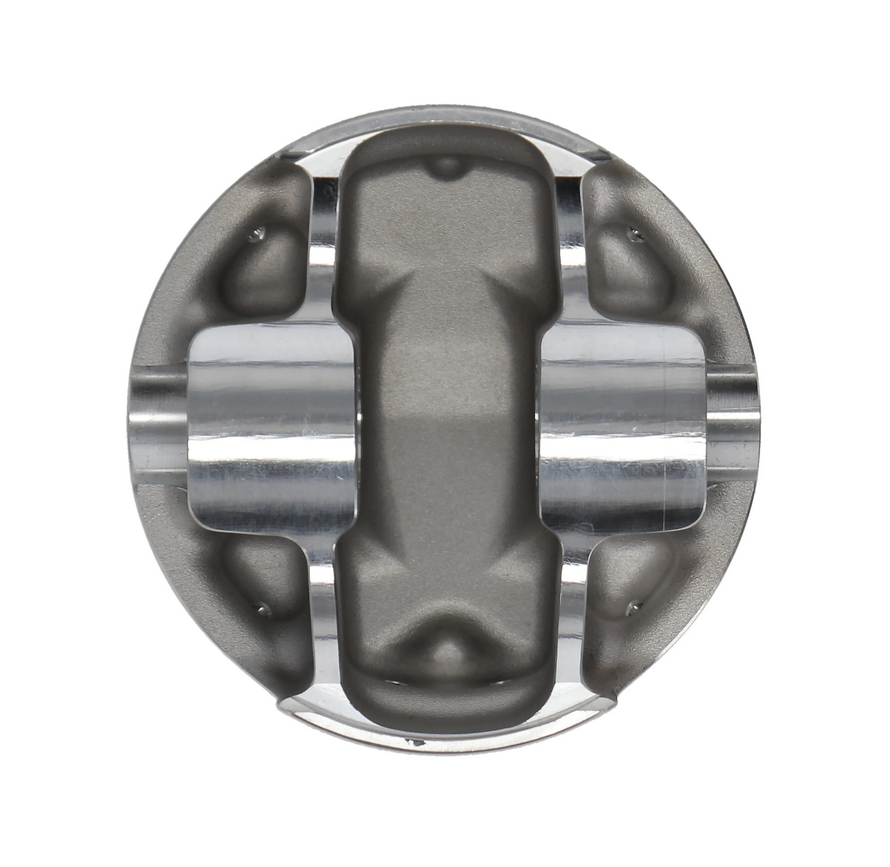

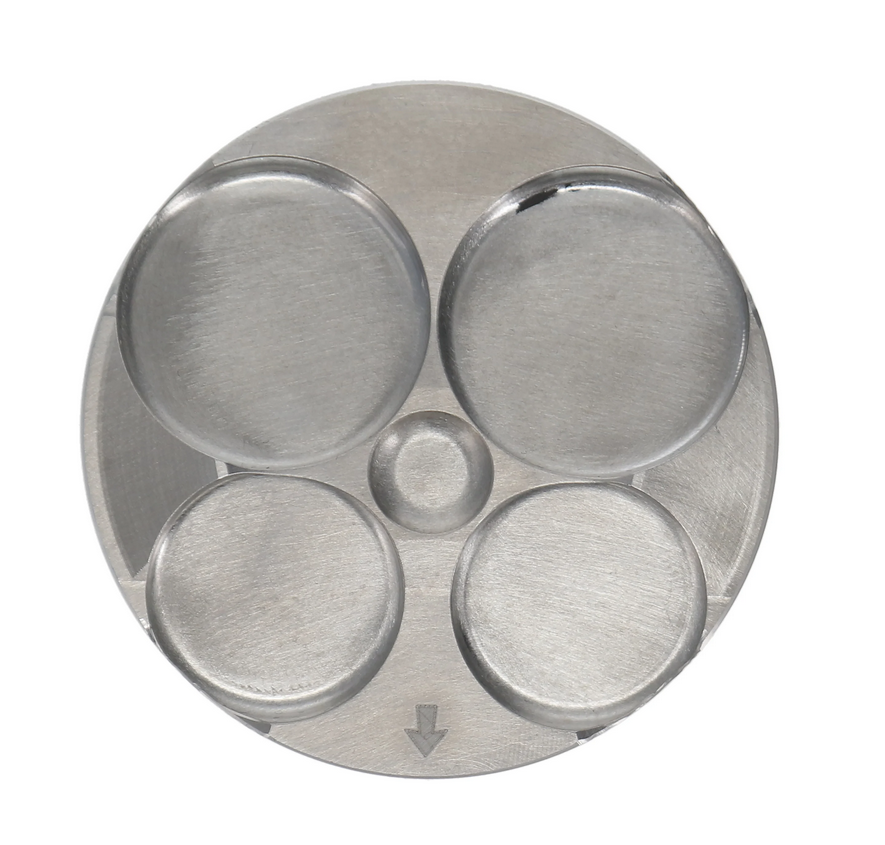

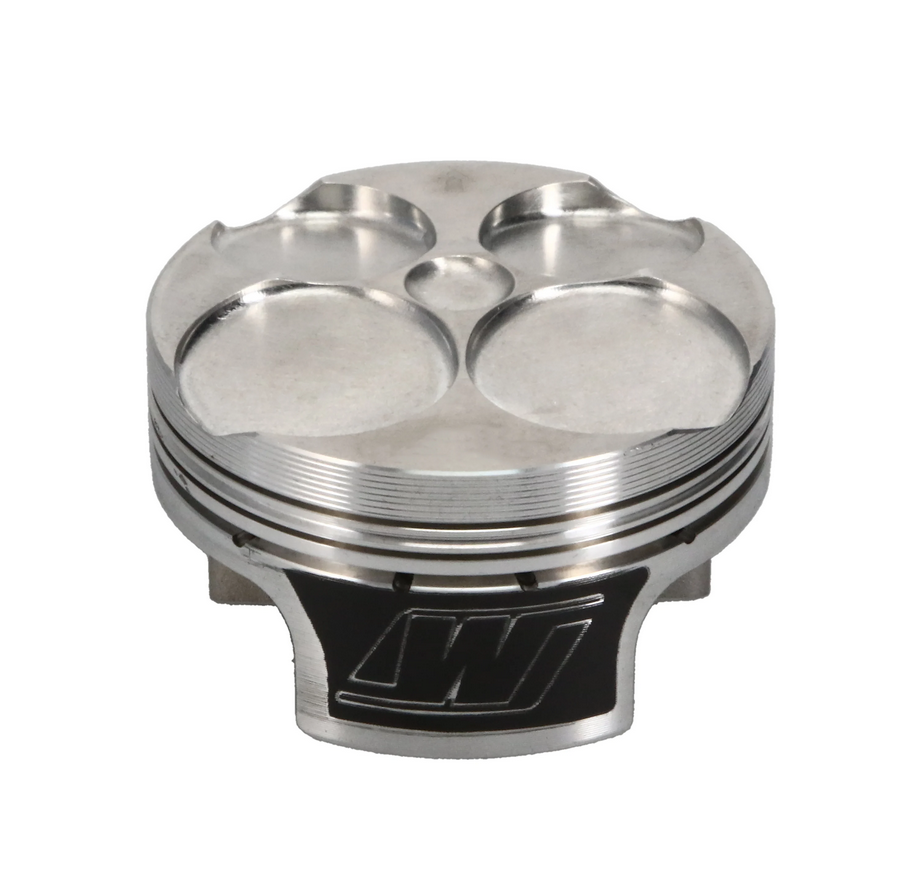

PISTON KIT 67.0mm 1998-2004 HONDA CBR600SF WISECO 4513M06700
Forged high-compression piston kit with a 67.00 mm bore size (2.00 mm over standard) and a 13.0:1 compression ratio. This 4-stroke forged series piston kit is designed for performance rebuilds and is supplied as a single-cylinder set including piston, rings, wrist pin, and circlips. Features include a forged 2618 aluminium construction for high strength under sustained thermal load and a high-compression crown design. Specifications include a piston diameter of 66.95 mm, ring set 2638XA, wrist pin S532 (17 mm outer diameter x 43 mm length), and circlips CW17 (17 mm). The kit contains one piston, one ring set, one wrist pin, and two circlips.
- SKU
- 56-W9704.WI
- Brand
- Wiseco
- Availability
- In Stock (1)
Fitments (15)
| Make | Model | Year |
|---|---|---|
| HONDA | CBR 600 | 1990 |
| HONDA | CBR 600 | 1991 |
| HONDA | CBR 600 | 1992 |
| HONDA | CBR 600 | 1993 |
| HONDA | CBR 600 | 1994 |
| HONDA | CBR 600 | 1995 |
| HONDA | CBR 600 | 1996 |
| HONDA | CBR 600 | 1997 |
| HONDA | CBR 600 | 1998 |
| HONDA | CBR 600 | 1999 |
| HONDA | CBR 600 | 2000 |
| HONDA | CBR 600 | 2001 |
| HONDA | CBR 600 | 2002 |
| HONDA | CBR 600 | 2003 |
| HONDA | CBR 600 | 2004 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 67.0mm
- Variant Id
- 258498
FULL DESCRIPTION
Wiseco 4-Stroke Forged Piston Kit
Elevate your engine's performance with this Wiseco forged piston kit. Engineered for demanding applications, this kit provides a significant upgrade for performance rebuilds.
The piston is constructed from durable 2618 aluminum, known for its exceptional strength and ability to withstand high temperatures and pressures. This material ensures reliability under sustained thermal load, making it ideal for performance-oriented engines.
Featuring a high-compression crown design, this piston kit is specifically built to boost power output. The 13.0:1 compression ratio allows for more efficient combustion, translating to increased horsepower and torque.
This comprehensive kit includes everything needed for a single-cylinder installation: the piston itself, a high-quality ring set, a robust wrist pin, and secure circlips. This all-in-one solution simplifies the rebuilding process.
Key Features:
- Forged Aluminum Construction: Made from 2618 aluminum for superior strength and thermal resistance.
- High Compression Ratio: A 13.0:1 compression ratio is designed for enhanced engine performance.
- Complete Kit: Supplied with piston, rings, wrist pin, and circlips for a straightforward installation.
- Performance Series: Part of Wiseco's 4-stroke forged piston series for performance applications.
Specifications:
- Bore size: 67.00 mm
- Piston diameter: 66.95 mm
- Compression ratio: 13.0:1
- Piston series: 4-stroke forged
- Ring set part number: 2638XA
- Wrist pin dimensions: 17 mm outer diameter x 43 mm length
- Circlip size: 17 mm

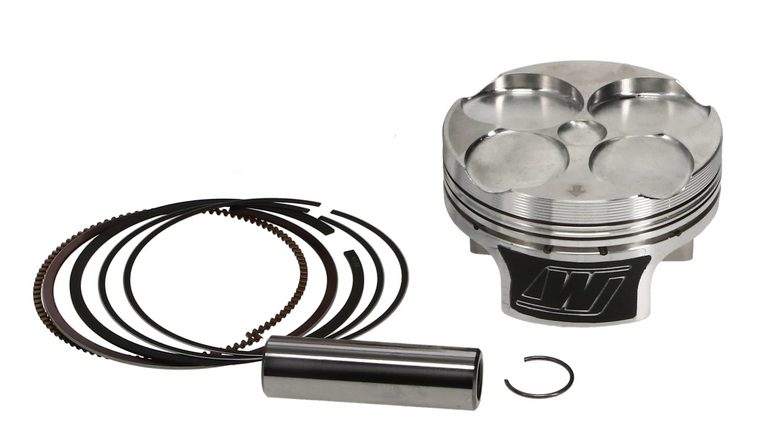

- Kit contents: One piston, one ring set, one wrist pin, two circlips.
