PISTON KIT 65.00mm SET/4 HONDA CB750 F K WOSSNER K8799D400-4

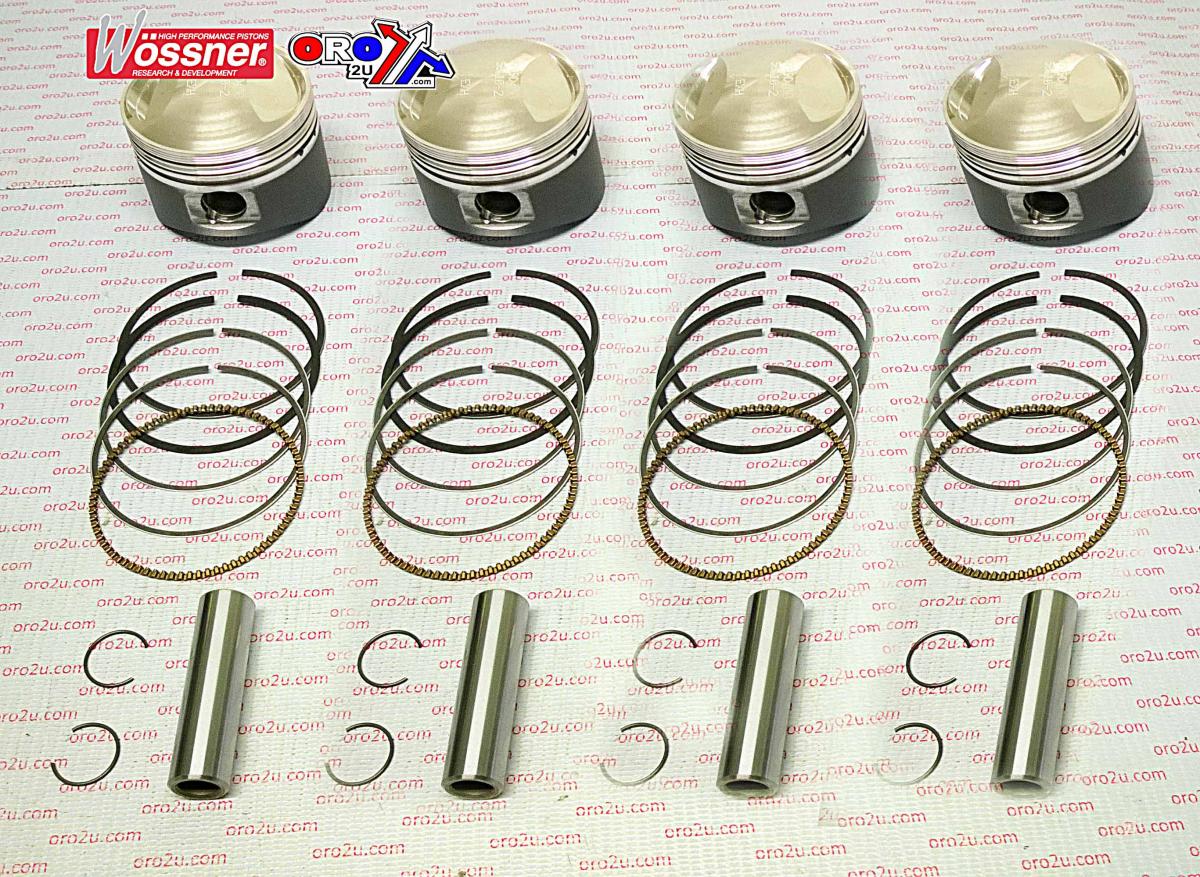

Wossner Piston Kit Set of 4 for Honda CB750

This Wossner Piston Kit is engineered for high-performance engine rebuilds, providing enhanced heat transfer and superior structural stability under demanding conditions. Designed for precision and durability, this kit includes four forged pistons and all associated components necessary for a comprehensive engine upgrade.

Key Features:

• Forged Piston Construction: Offers exceptional strength and longevity for performance applications.
• Optimized Heat Transfer: Designed to efficiently move heat from the combustion chamber to the cylinder walls, promoting cooler operation.
• Elliptical Piston Profile: Ensures a uniform bearing surface, even as the piston expands under heat, for consistent performance.
• Even Load Distribution: Reduces localized pressure points and distributes thrust loads evenly, contributing to engine reliability.
• Structural Integrity: Prevents piston collapse and maintains a robust structure even under high stress.
• German Manufacturing: Built with precision and quality standards associated with German engineering.

Specifications:

• Bore Size: 65.00 mm (4.00 mm oversize)
• Piston Pin Type: WP102
• Ring Set Included: 650XKS
• Clip Part Number: CW15
• Engine Displacement: 836 cm³
• Stroke: 63.00 mm
• Piston Clearance: 0.06 mm
• Compression Ratio: 10.30:1
• OEM Compression Ratio: 9.20:1
• Dome Volume: -5.30 cm³
• Compression Height: 23.50 mm

Cross-Reference OEM Part Number:

• K8799D400-4
