2Bros Parts

PISTON KIT-4 KZ1000J,R D73.00, WOSSNER K8796D350-4 KAWASAKI

£633.54Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

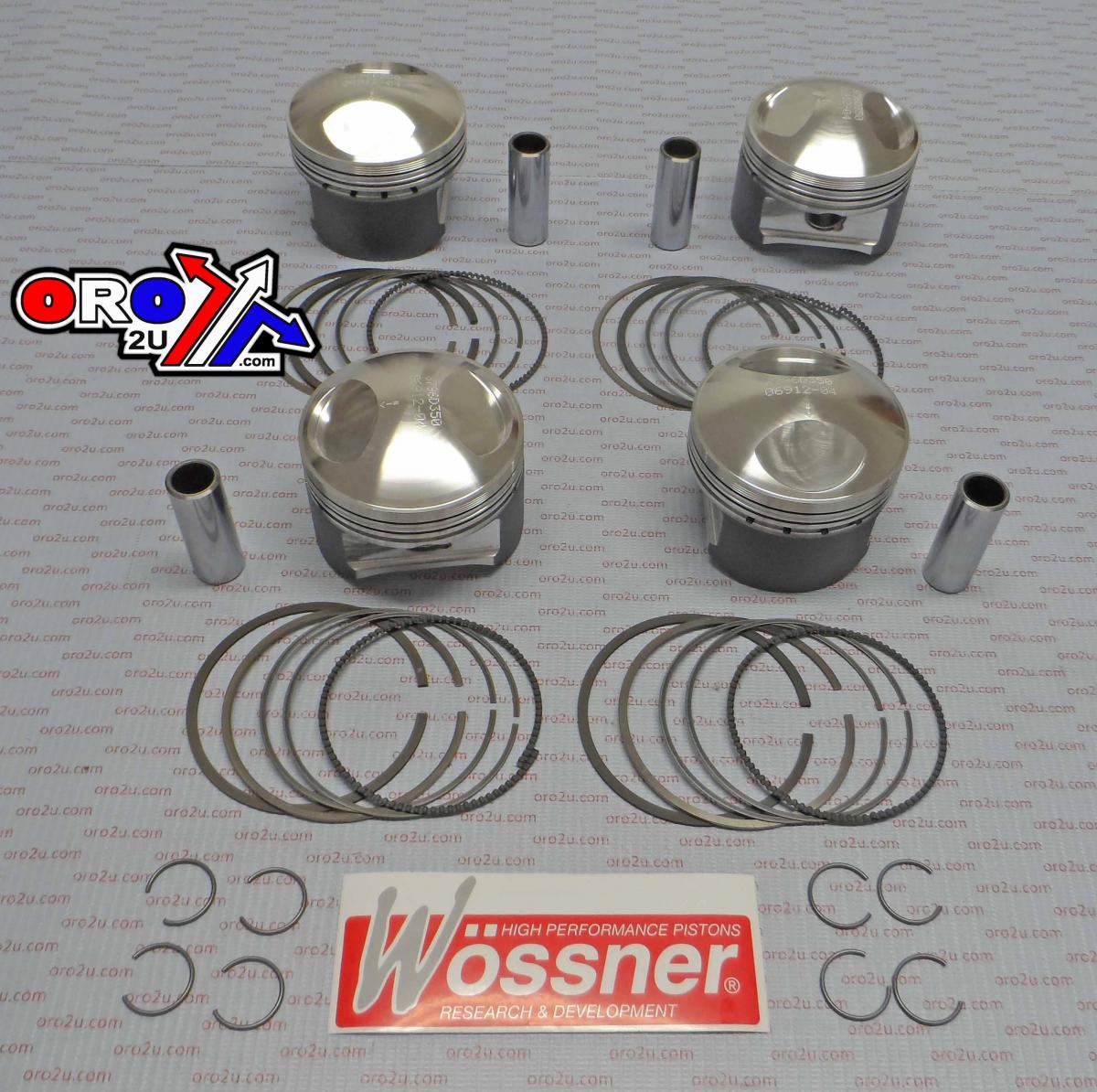

Wossner 4-piston kit for Kawasaki KZ1000J and KZ1000R models with a 73.00mm bore. This kit includes four forged pistons with a 72.94mm diameter and a +3.5mm oversize fitment. Engineered for increased displacement and improved compression, this kit enhances engine performance while maintaining structural reliability. Features include forged piston construction for superior strength and durability, optimized heat transfer for efficient combustion, an elliptical profile for uniform bearing surfaces under heat expansion, and reduced localized pressure distribution to prevent piston collapse. Manufactured in Germany, the complete kit includes 4 pistons, pins, rings, and circlips. Specifications: Bore 73.00mm, Diameter 72.94mm, Engine Displacement 1075 / 1105 cm³, Stroke 66.00 mm, Clearance 0.06 mm, Compression Ratio (Wossner) 1075 cc = 10.30:1 / 1105 cc = 10.50:1, Compression Ratio (OEM) 9.20:1, Dome Volume 18.80 cm³, Compression Height 25.30 mm, Theoretical Weight 25.30 g, Engine Cylinders 4, Clips P/N CW17, Pin P/N WP083, Ring Set P/N 730XDS. Cross-reference OEM Part Numbers: 56-W9934.350.WO, Wossner Piston K8796D350-4.

Specifications
SKU
56-W9934.350.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (9)

MakeModelYear
KAWASAKIKZ J 10001981
KAWASAKIKZ J 10001982
KAWASAKIKZ J 10001983
KAWASAKIKZ R 10001981
KAWASAKIKZ R 10001982
KAWASAKIKZ R 10001983
KAWASAKIKZ1000J1981
KAWASAKIKZ1000J1982
KAWASAKIKZ1000J1983
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
73.00mm
Variant Id
259236
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner 4 Piece Forged Piston Kit - 73.00mm Bore

Enhance your motorcycle's engine performance with this high-quality Wossner piston kit. Designed for increased displacement and improved compression, this kit is engineered for durability and reliability under demanding conditions.

Key Features:

  • Forged piston construction for superior strength and longevity.
  • Optimized for efficient heat transfer from the combustion chamber to the cylinder walls.
  • Elliptical piston profile ensures a uniform bearing surface, even with heat expansion.
  • Reduces localized pressure and evenly distributes thrust loads to prevent piston collapse.
  • Manufactured in Germany to exacting standards.
  • Complete kit includes four pistons, pins, rings, and circlips for a full engine rebuild.

Specifications:

  • Bore: 73.00mm
  • Diameter: 72.94mm
  • Engine Displacement: 1075 cm³ / 1105 cm³
  • Stroke: 66.00 mm
  • Clearance: 0.06 mm
  • Compression Ratio (Wossner): 10.30:1 (1075 cc) / 10.50:1 (1105 cc)
  • Compression Ratio (OEM): 9.20:1
  • Dome Volume: 18.80 cm³
  • Compression Height: 25.30 mm
  • Theoretical Weight: 25.30 g
  • Engine Cylinders: 4
  • Clips Part Number: CW17
  • Pin Part Number: WP083
  • Ring Set Part Number: 730XDS

Part Numbers: Wossner K8796D350-4
