PISTON KIT 2021-22 KX250F 77.96mm, HIGH COMPRESSION WOSSNER 8994DA, Kawasaki
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
High compression piston kit, 77.96mm bore, Wossner 8994DA (STD). Wossner forged pistons offer superior strength and design, engineered for optimal combustion chamber heat transfer to cylinder walls. They are elliptically designed for uniform bearing surfaces under heat expansion, preventing piston collapse and distributing thrust loads evenly. Made in Germany. Part number 56-W8820.A.WO.HC. Wossner 8994DA piston kit 78.00mm, A grade piston kit 77.96mm, compression ratio 14.5:1, compression height 20.18mm, stroke 52.20mm. Ring set RIK78.00, clips CW16, pin WP070-SP.
- SKU
- 56-W8820.A.WO.HC
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (5)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250 | 2021 |
| KAWASAKI | KX 250 | 2022 |
| KAWASAKI | KX 250X | 2021 |
| KAWASAKI | KX 250X | 2022 |
| KAWASAKI | KX XC 250 | 2021 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 314424
FULL DESCRIPTION
Wossner High Compression Piston Kit for Kawasaki KX250F
Upgrade your Kawasaki KX250F's performance with this high compression piston kit from Wossner. Engineered for superior strength and efficiency, this kit is designed to optimize combustion and heat transfer for maximum power output.
Key Features:
- High Compression: Achieve a compression ratio of 14.5:1 for enhanced engine performance.
- Superior Forged Design: Wossner forged pistons offer exceptional strength and durability.
- Optimized Heat Transfer: Engineered to efficiently transfer combustion chamber heat to cylinder walls.
- Elliptical Design: Ensures uniform bearing surface under heat expansion, preventing piston collapse and distributing thrust loads evenly.
- Precision Bore: Features a bore size of 77.96mm, designed as an A grade piston.
- Specific Dimensions: Includes a compression height of 20.18mm and a stroke of 52.20mm.
- Made in Germany: High-quality manufacturing standards ensure reliability and performance.

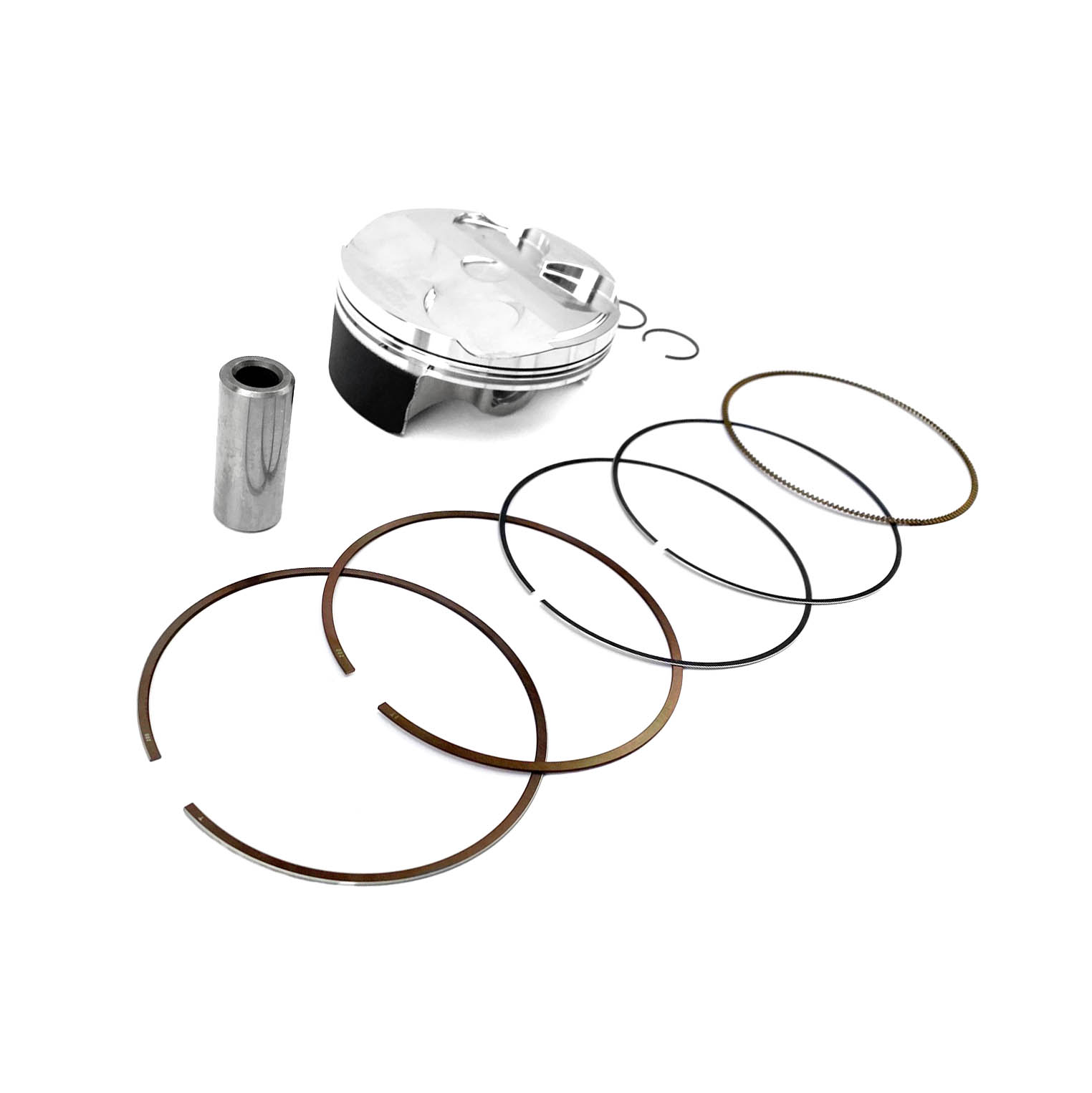

- Complete Kit: Includes the piston, ring set (RIK78.00), clips (CW16), and pin (WP070-SP).
