PISTON KIT 2004-2005 TRX450R HC FORGED WOSSNER 8719DA
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner 94.00mm high-compression forged piston kit for enhanced engine performance. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability. Features include a high-compression design for increased engine performance, forged construction for enhanced strength and longevity, optimized heat transfer for efficient cooling, and an elliptical design that prevents piston collapse and ensures even load distribution. Manufactured in Germany for high-quality standards. Specifications: Bore Size 94.00mm, Actual Bore Diameter 93.95mm, Displacement 450 cm³, Stroke 64.80mm, Clearance 0.05mm, Wossner Compression Ratio 11.50:1, OEM Compression Ratio 10.50:1, Dome Volume +3.60 cm³, Compression Height 26.00mm, Gasket Part Number D4009, Lock Part Number CW21, Pin Part Number WP051, Ring Set Part Number 940XSY, Rod Part Number P4022. Cross-reference OEM Part Numbers: 13101-HP1-670, 4849M09400. Part No: 56-W4849.A.WO, Wossner Part No: 8719DA.
- SKU
- 56-W4849.A.WO
- Brand
- Wossner
- Availability
- In Stock (6)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| HONDA | TRX R 450 | 2004 |
| HONDA | TRX R 450 | 2005 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 256250
FULL DESCRIPTION

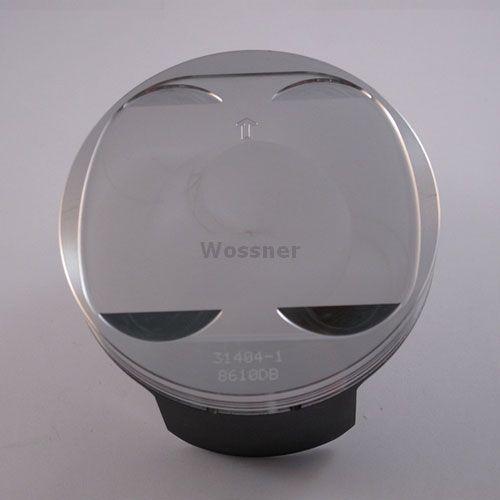

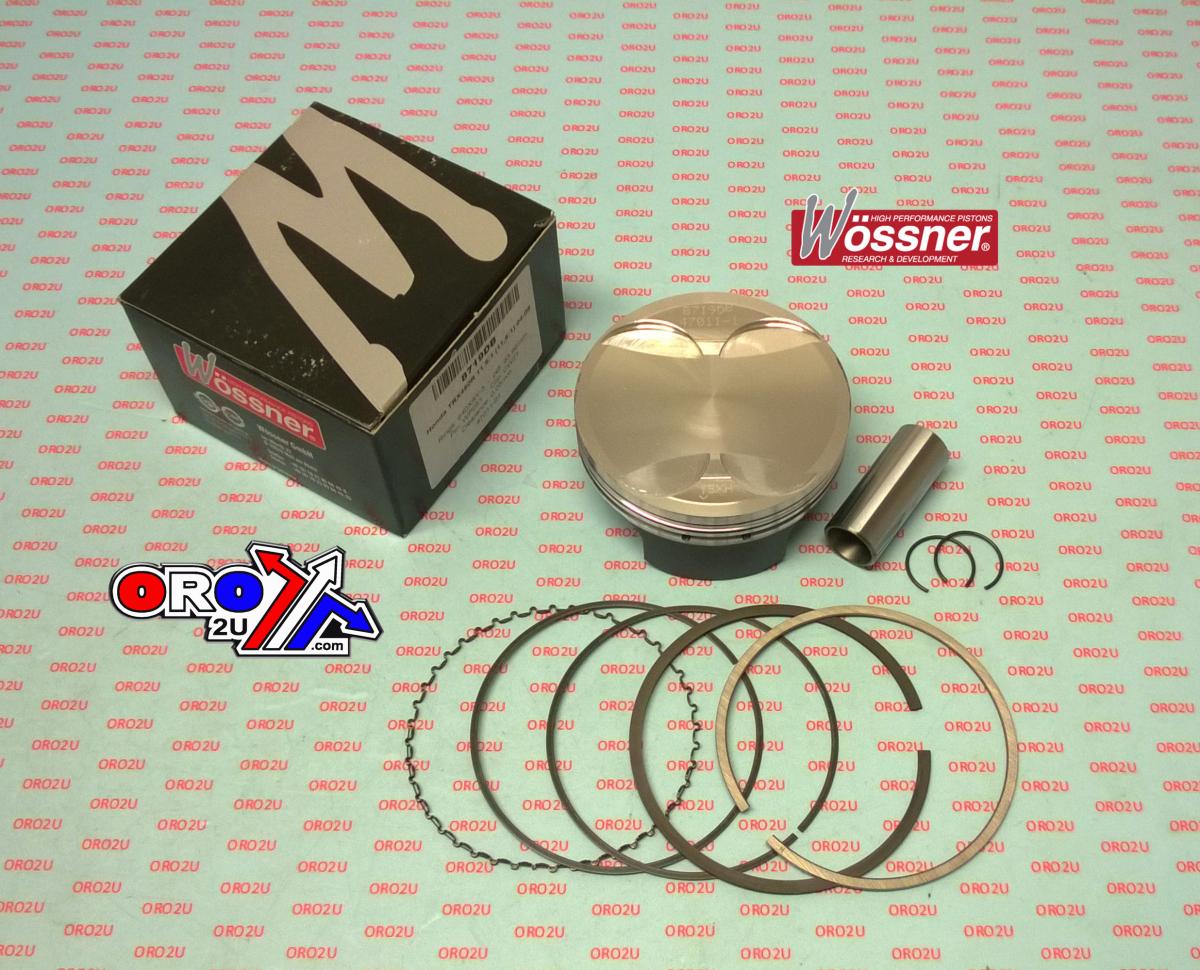

Wossner High-Compression Forged Piston Kit 94.00mm
Enhance your engine's performance with this Wossner 94.00mm high-compression forged piston kit. Engineered for optimal heat transfer, this piston ensures efficient cooling of the combustion chamber, contributing to consistent power delivery and engine longevity. The meticulously crafted elliptical design provides a uniform bearing surface, which actively reduces localized pressure and distributes thrust loads evenly. This intelligent design prevents piston collapse under stress and promotes smooth operation.
Manufactured in Germany, this Wossner piston kit embodies precision engineering and unwavering reliability, meeting the highest quality standards for demanding applications.
Key Features:
- High-compression design for a significant boost in engine performance.
- Forged construction delivers exceptional strength and durability for extended service life.
- Optimized heat transfer capabilities ensure efficient combustion chamber cooling.
- Elliptical design effectively prevents piston collapse and guarantees even load distribution.
- Precision manufactured in Germany for superior quality and performance assurance.
Specifications:
- Bore Size: 94.00mm
- Actual Bore Diameter: 93.95mm
- Displacement: 450 cm³
- Stroke: 64.80mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 11.50:1
- OEM Compression Ratio: 10.50:1
- Dome Volume: +3.60 cm³
- Compression Height: 26.00mm
- Gasket Part Number: D4009
- Lock Part Number: CW21
- Pin Part Number: WP051
- Ring Set Part Number: 940XSY
- Rod Part Number: P4022
Cross-Reference Information:
- OEM Part Numbers: 13101-HP1-670, 4849M09400
- Wossner Part Number: 8719DA
