PISTON KIT 1991 KX125 56.50, WOSSNER 8108D050 KAWASAKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit 56.50mm bore, 56.44mm piston diameter, +0.50mm oversize for 2-stroke engines. Features forged construction for enhanced durability and strength. Optimised for effective heat transfer from combustion to cylinder walls. Elliptical design promotes balanced thrust load and reduces stress points. Made in Germany. Bore Size: 56.50 mm, Piston Diameter: 56.44 mm, Engine Displacement: 125 cm³, Stroke: 50.60 mm, Clearance: 0.06 mm, Compression Height: 29.50 mm, Compression Ratio: 2-stroke. Wossner part number 8108D050. Includes lock CW16, pin WP036, ring set RSB5650, rod P2033. Weight: 206g.
- SKU
- 56-W603+050.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56.50mm
- Variant Id
- 257069
FULL DESCRIPTION

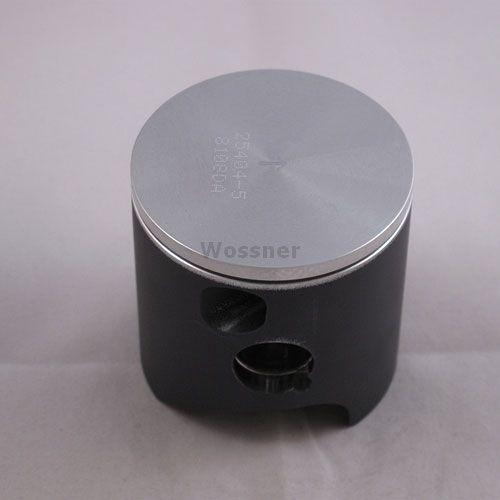

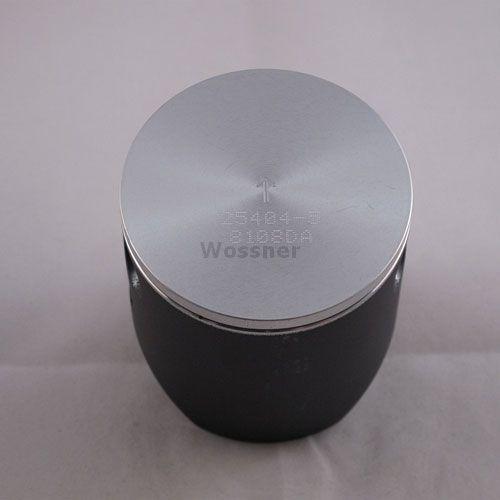

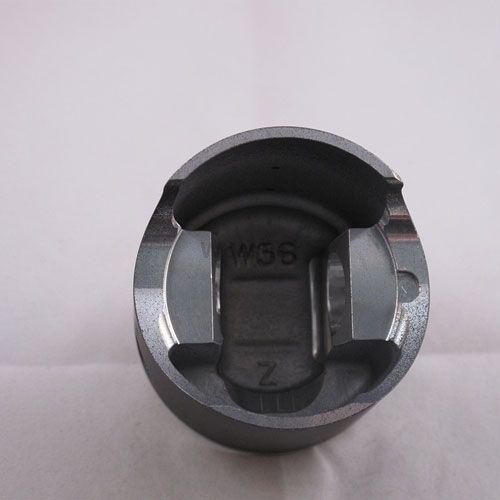

Wossner Forged Piston Kit 56.50mm Bore - Kawasaki KX125
This Wossner forged piston kit is engineered for superior performance and durability in 2-stroke engines. Featuring a 56.50 mm bore and a 56.44 mm piston diameter, this kit is precisely manufactured in Germany to exacting standards. The advanced forged construction enhances strength and heat management, while the elliptical piston design ensures even load distribution and reduces stress during thermal expansion, contributing to improved engine reliability.
Key Features
- Forged construction for enhanced durability and strength.
- Optimized for efficient heat transfer from combustion to cylinder walls.
- Elliptical design promotes balanced thrust load and minimizes stress points.
- Precision manufactured in Germany for consistent quality.
Specifications
- Bore Size: 56.50 mm
- Piston Diameter: 56.44 mm
- Engine Displacement: 125 cm³
- Stroke: 50.60 mm
- Clearance: 0.06 mm
- Compression Height: 29.50 mm
- Compression Ratio: 2-stroke

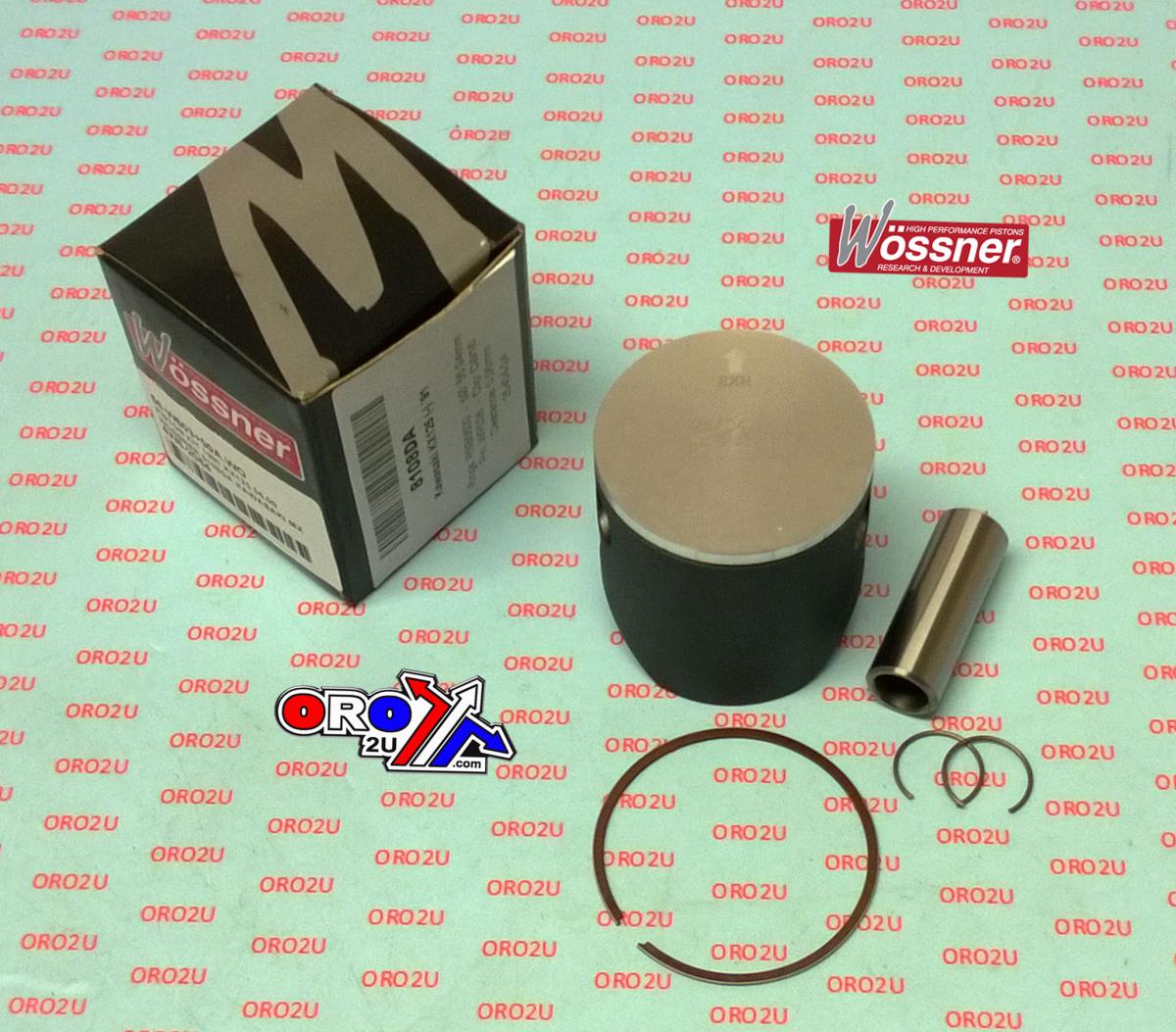

Wossner Part Numbers
- Piston Kit: 8108D050
- Lock: CW16
- Pin: WP036
- Ring Set: RSB5650
- Rod: P2033
