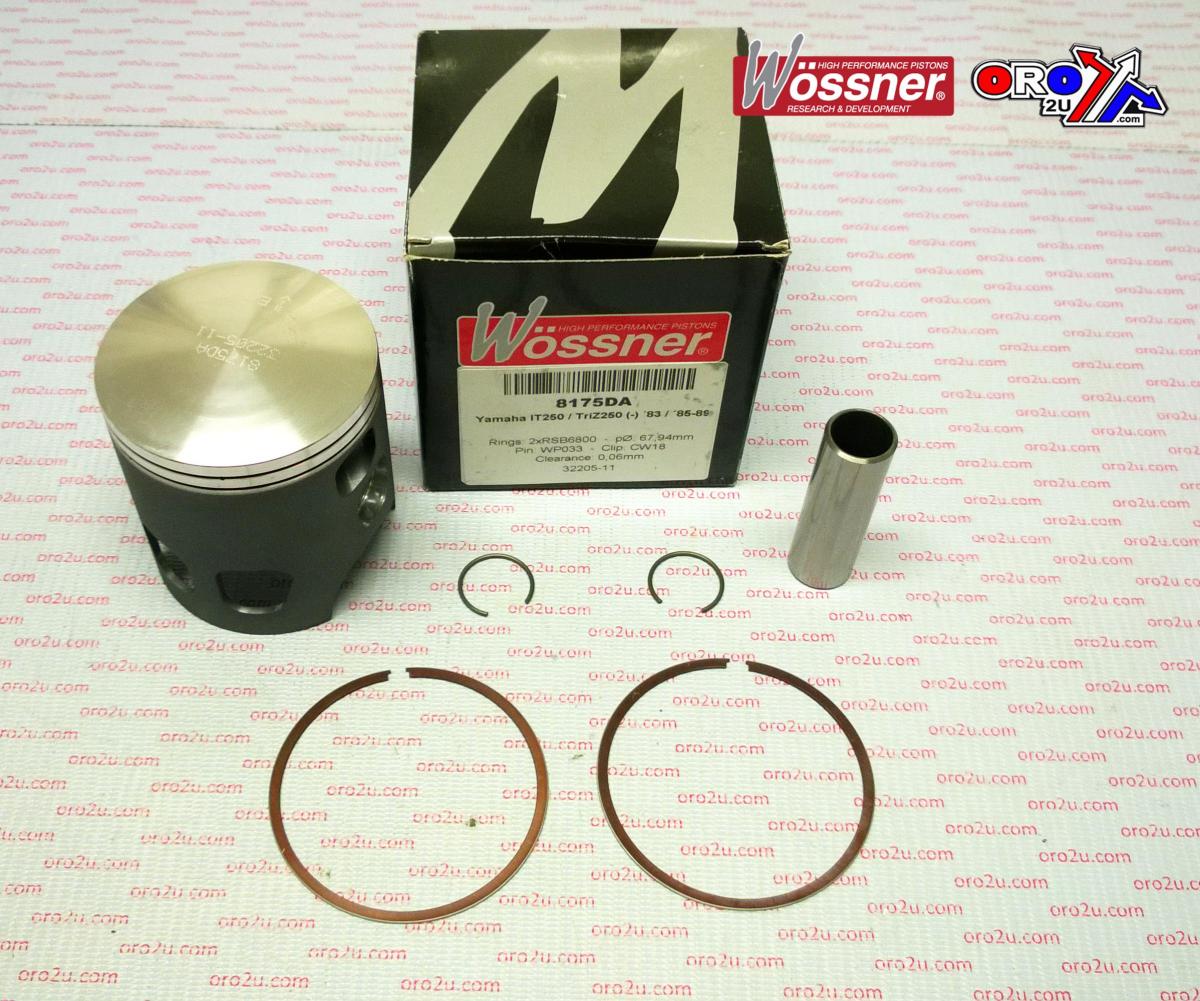

PISTON KIT 1983 IT250 69.50, FORGED WOSSNER 8175D150
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Wossner forged piston kit 8175D150. Bore size 69.50mm, actual bore diameter 68.94mm. Displacement 246 cm³. Stroke 68.00mm. Clearance 0.06mm. Wossner compression ratio 2-stroke, OEM compression ratio 2-stroke. Compression height 35.80mm. Features forged piston for enhanced strength and durability, optimized heat transfer for efficient combustion, and elliptical design to prevent piston collapse. Manufactured in Germany. Included components: Lock Part Number CW18, Pin Part Number WP033, Ring Set Part Number RSB6950 x 2. Theoretical weight not specified. Weight 344g.
- SKU
- 56-W196+150.WO
- Brand
- Wossner
- Availability
- Out of Stock
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 69.5mm
- Variant Id
- 254946
FULL DESCRIPTION
Wossner Forged Piston Kit 69.50mm
Experience enhanced strength and performance with this Wossner forged piston kit. Engineered for superior heat transfer to the cylinder walls, this piston promotes efficient combustion and optimal engine operation. Its innovative elliptical design ensures a uniform bearing surface even under extreme heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured to high-quality standards in Germany.
Key Features
- Forged piston construction for exceptional strength and durability.
- Optimized heat transfer characteristics for efficient combustion.
- Elliptical design engineered to prevent piston collapse under load.
- High-quality manufacturing by Wossner in Germany.
Specifications
- Bore Size: 69.50mm
- Actual Bore Diameter: 68.94mm
- Displacement: 246 cm³
- Stroke: 68.00mm
- Clearance: 0.06mm
- Compression Height: 35.80mm
Included Components
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6950 (x2)
