PISTON KIT 1983 IT250 68.00, FORGED WOSSNER 8175DA

£141.59Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

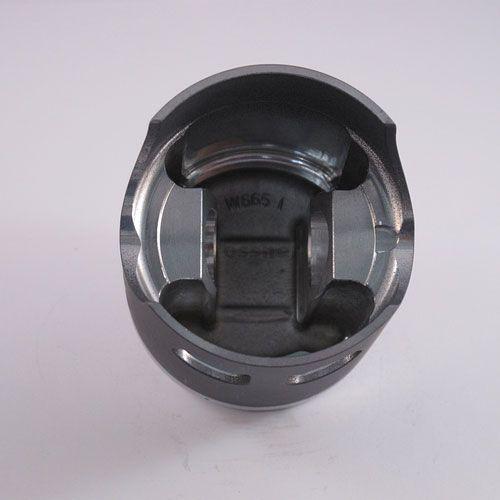

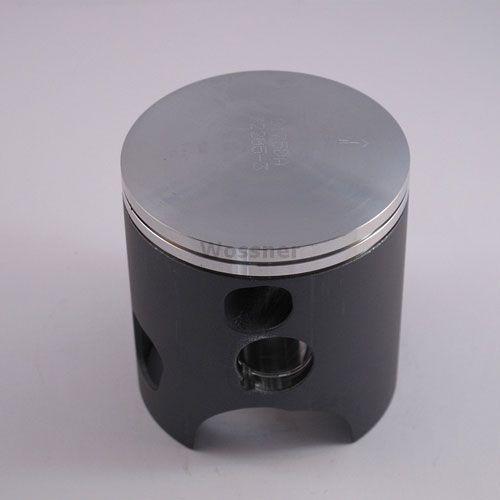

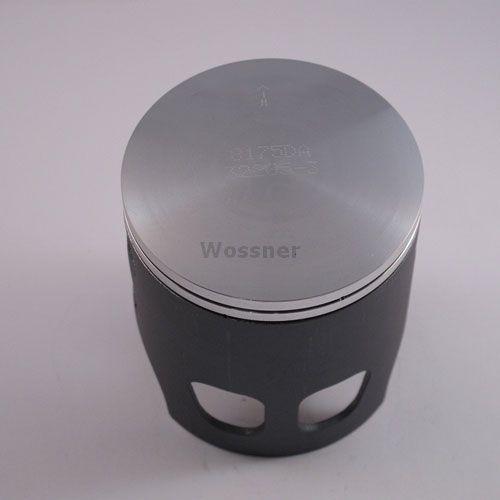

Wossner Piston Kit 8175DA forged piston for Yamaha IT250 and Tri-Z 250 models. Manufactured in Germany, this piston is engineered for optimal heat transfer and uniform bearing surface distribution, reducing localized pressure and preventing piston collapse. Features a forged piston for superior strength and durability, engineered for optimal combustion chamber heat transfer, and an elliptical design for uniform bearing surface and reduced piston collapse. Bore Size: 68.00mm, Actual Bore Diameter: 67.94mm, Display (cm³): 246, Stroke (mm): 68.00, Clearance (mm): 0.06, Compression Ratio: 2-Stroke, OEM Compression Ratio: 2-Stroke, Compression Height (mm): 35.80. Included Items: Lock (Part No. CW18), Wrist Pin (Part No. WP033), Ring Set (Part No. RSB6800 x 2). Cross-Reference OEM Part Numbers: 8175DA.

Specifications
SKU
56-W196+00A.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (1)

MakeModelYear
YAMAHAIT 2501983
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
68mm
Variant Id
254942
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit 8175DA

This Wossner Piston Kit, part number 8175DA, is a premium forged piston engineered for enhanced performance and durability. Manufactured in Germany, it is designed to optimize heat transfer and promote uniform bearing surface distribution, which helps prevent localized pressure and potential piston collapse.

Key Features:

  • Forged Construction: Provides superior strength and longevity compared to cast pistons.
  • Optimized Heat Transfer: Engineered to efficiently manage combustion chamber heat.
  • Elliptical Design: Contributes to a uniform bearing surface and reduces the risk of piston collapse under stress.
  • German Engineering: High-quality manufacturing standards ensure reliability.

Specifications:

  • Bore Size: 68.00mm
  • Actual Bore Diameter: 67.94mm
  • Display (cm³): 246
  • Stroke (mm): 68.00
  • Clearance (mm): 0.06
  • Compression Ratio: 2-Stroke
  • Compression Height (mm): 35.80

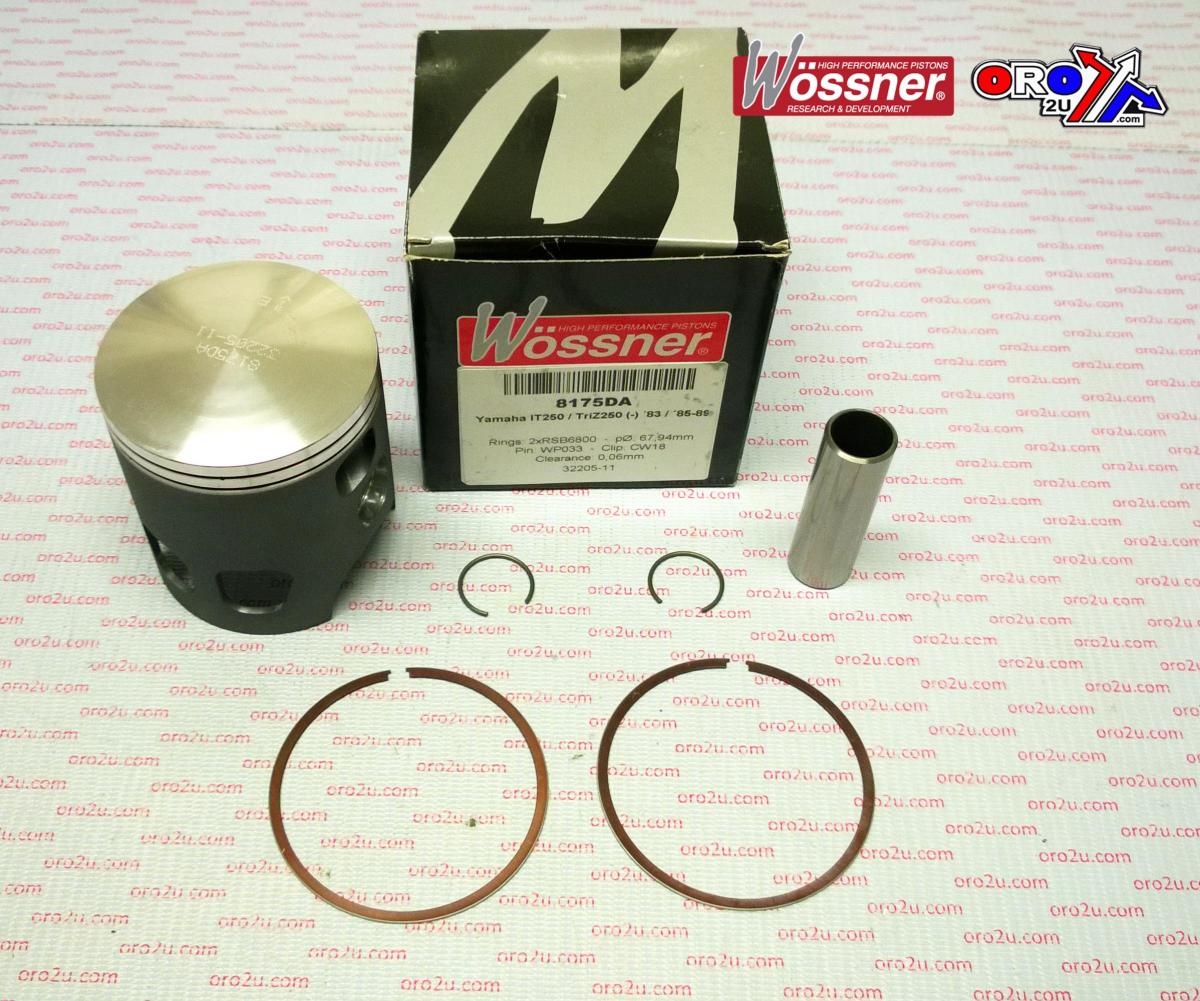

Included Components:

  • Lock (Part No. CW18)
  • Wrist Pin (Part No. WP033)
  • Ring Set (Part No. RSB6800 x 2)
