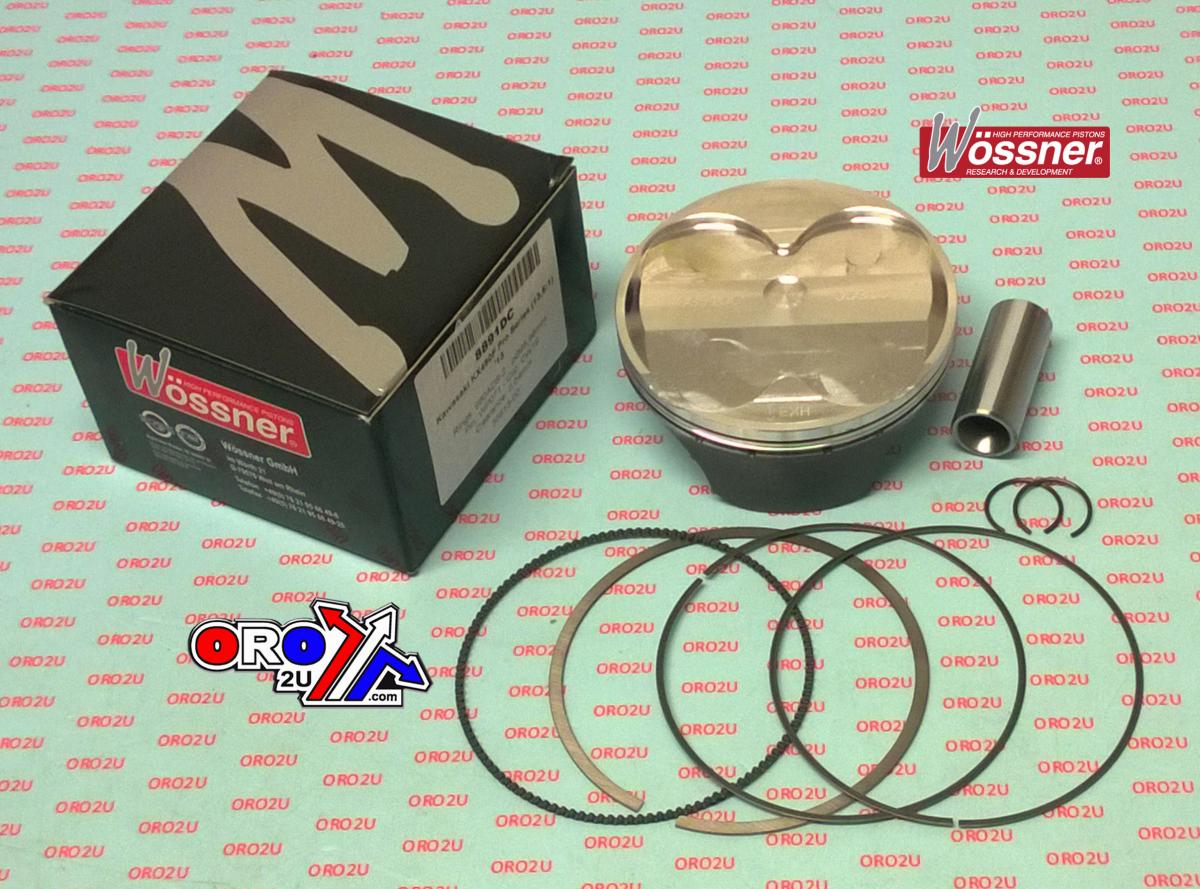

PISTON KIT 13-14 KX450F 96 HC, WOSSNER 8891DB KAWASAKI
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with a 96.01mm bore size (95.97mm actual), providing a +0.01mm oversize fitment. This piston features a high-compression dome and an elliptical design for even load distribution and efficient heat transfer. Manufactured in Germany for high-performance applications, it offers increased compression and engine responsiveness. Specifications include a 449 cm³ displacement, 62.10 mm stroke, 0.04 mm clearance, 13.50:1 compression ratio (Wossner) compared to 12.50:1 OEM, +4.20 cm³ dome volume, and 23.70 mm compression height. Includes lock part number CW19, pin part number WP071, ring set part number 960ADS-2, and rod part number P4020.
- SKU
- 56-W966.B.WO
- Brand
- Wossner
- Availability
- In Stock (4)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96.00mm
- Variant Id
- 258453
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit - Enhanced Performance and Durability
Elevate your motorcycle's performance with this premium Wossner forged high-compression piston kit. Engineered for precision and built to withstand demanding conditions, this kit offers a significant upgrade for compatible Kawasaki KX450F models. The piston features a high-compression dome and an advanced elliptical design, meticulously crafted in Germany to ensure optimal combustion, superior heat dissipation, and even load distribution for increased engine responsiveness and longevity.
Key Features:
- Forged high-compression piston design for amplified power output.
- Oversize fitment of +0.01mm with a nominal bore size of 96.01mm (actual 95.97mm) for a precise engine seal.
- Elliptical piston profile promotes uniform pressure distribution, accommodating thermal expansion efficiently.
- Designed for enhanced combustion heat transfer and improved engine reliability under stress.
- Manufactured to exacting standards in Germany, ensuring exceptional quality and performance.
Specifications:
- Bore Size: 96.01mm (actual 95.97mm)
- Displacement: 449 cm³
- Stroke: 62.10 mm
- Clearance: 0.04 mm
- Compression Ratio (Wossner): 13.50:1
- Compression Ratio (OEM): 12.50:1
- Dome Volume: +4.20 cm³
- Compression Height: 23.70 mm
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4020
