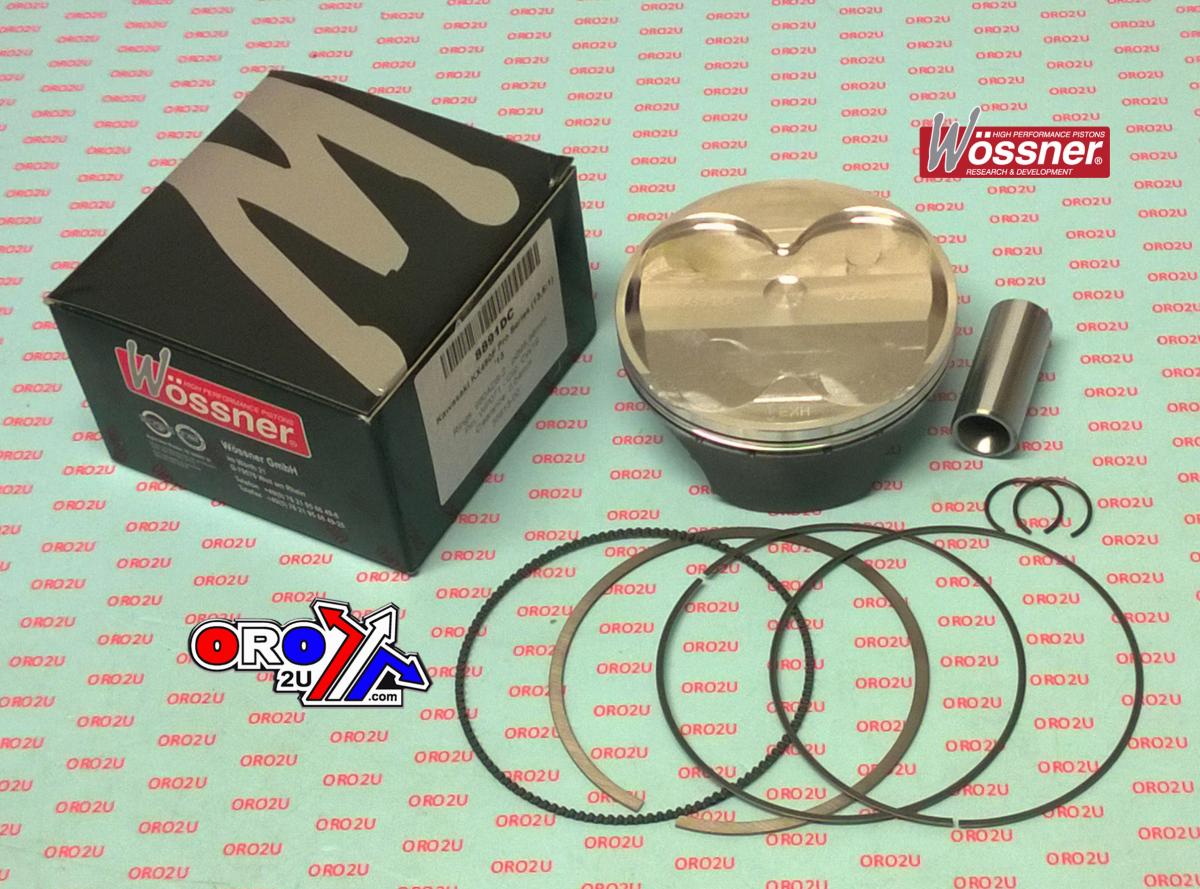

PISTON KIT 13-14 KX450F 96 HC, WOSSNER 8891DA KAWASAKI 13001-0736
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with a 96mm bore size (95.96mm actual) and a standard high-compression fitment. Precision-engineered in Germany, the piston includes a dome design that increases compression and improves performance. Its elliptical profile ensures even load distribution under heat expansion, contributing to durability and consistent engine response. Features include a forged high-compression piston for enhanced power output, elliptical design for uniform pressure distribution during thermal expansion, optimised for efficient heat transfer and structural integrity, and manufactured in Germany. Specifications include: Bore Size 96mm (actual 95.96mm), Displacement 449 cm³, Stroke 62.10 mm, Clearance 0.04 mm, Compression Ratio (Wossner) 13.50:1, Compression Ratio (OEM) 12.50:1, Dome Volume +4.20 cm³, Compression Height 23.70 mm, Lock Part Number CW19, Pin Part Number WP071, Ring Set Part Number 960ADS-2, Rod Part Number P4020. Cross-reference OEM Part Numbers: 13001-0736, 40096M09600.
- SKU
- 56-W966.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96.00mm
- Variant Id
- 258452
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit - 96mm Bore
Enhance your motorcycle's performance with this Wossner forged high-compression piston kit. Engineered with precision in Germany, this kit is designed to deliver increased power and improved engine response.
Key Features
- Forged High-Compression Design: Boosts your engine's power output for exhilarating performance.
- Elliptical Profile: Ensures uniform pressure distribution, even under extreme heat, promoting durability and consistent engine operation.
- Optimised for Performance: Features a dome design for increased compression and improved heat transfer for greater structural integrity.
- Precision Engineered in Germany: Guarantees high-quality manufacturing and reliable performance.
Specifications
- Bore Size: 96mm (actual 95.96mm)
- Displacement: 449 cm³
- Stroke: 62.10 mm
- Clearance: 0.04 mm
- Compression Ratio (Wossner): 13.50:1
- Compression Ratio (OEM): 12.50:1
- Dome Volume: +4.20 cm³
- Compression Height: 23.70 mm
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4020
Cross-Reference OEM Part Numbers
- 13001-0736
- 40096M09600
