PISTON KIT 12-13 KTM EXC500 95, WOSSNER 8821DB HUSQVARNA
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner forged piston kit, +0.01mm oversize, for four-stroke engines. Features a hard Teflon skirt coating for enhanced conformability to the cylinder bore. The piston is forged for superior mechanical strength and durability, with an elliptical design for a uniform bearing surface under heat expansion. It is optimised for efficient heat dissipation and even thrust load distribution to prevent piston collapse. Specifications include Bore Size: 95.01mm, Actual Piston Size: 94.96mm, Display Displacement: 510 cm³, Stroke: 72.00mm, Piston Clearance: 0.05mm, Wossner Compression Ratio: OEM, OEM Compression Ratio: 11.80:1, Dome Volume: -6.80 cm³, Compression Height: 22.80mm, Circlip Part Number: CW19, Pin Part Number: WP071, and Ring Set Part Number: 950ADS-2. Cross-reference OEM Part Numbers: 56-W925.B.WO.
- SKU
- 56-W925.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (15)
| Make | Model | Year |
|---|---|---|
| HUSABERG | FE 501 | 2013 |
| HUSABERG | FE 501 | 2014 |
| HUSQVARNA | FE 501 | 2014 |
| HUSQVARNA | FE 501 | 2015 |
| HUSQVARNA | FE 501 | 2016 |
| HUSQVARNA | FE 501 | 2017 |
| HUSQVARNA | FE 501 | 2018 |
| HUSQVARNA | FE 501 | 2019 |
| KTM | 500 EXC | 2012 |
| KTM | 500 EXC | 2013 |
| KTM | 500 EXC | 2014 |
| KTM | 500 EXC | 2015 |
| KTM | 500 EXC | 2016 |
| KTM | 500 EXC | 2017 |
| KTM | 500 EXC-F SIX DAYS | 2020 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95.00mm
- Variant Id
- 258266
FULL DESCRIPTION

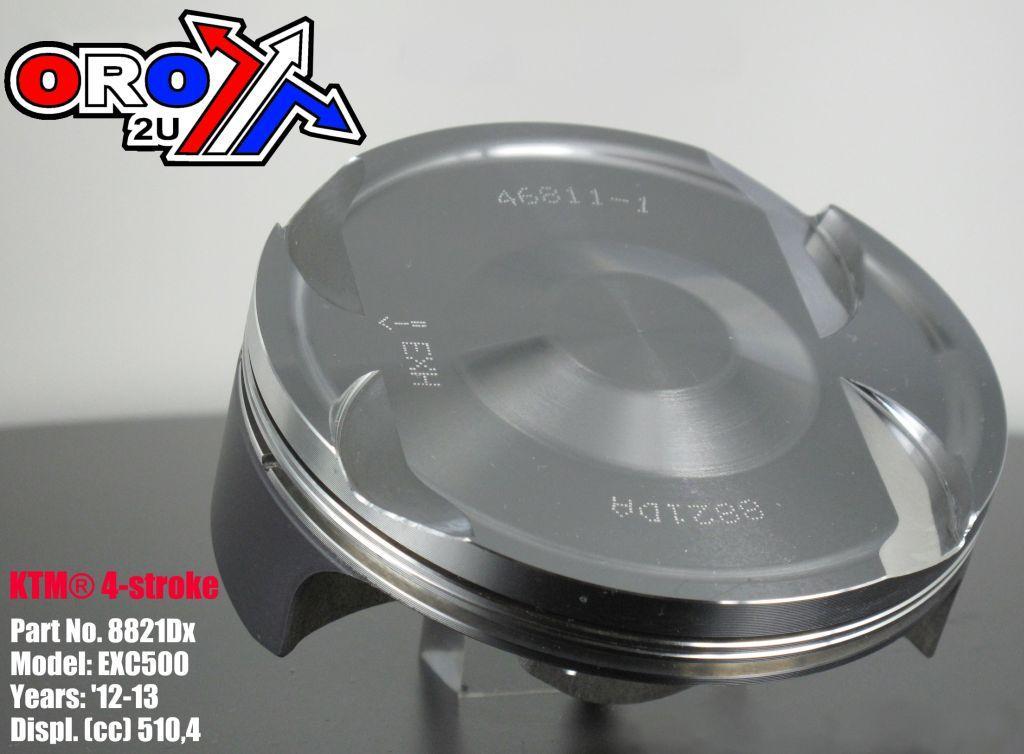

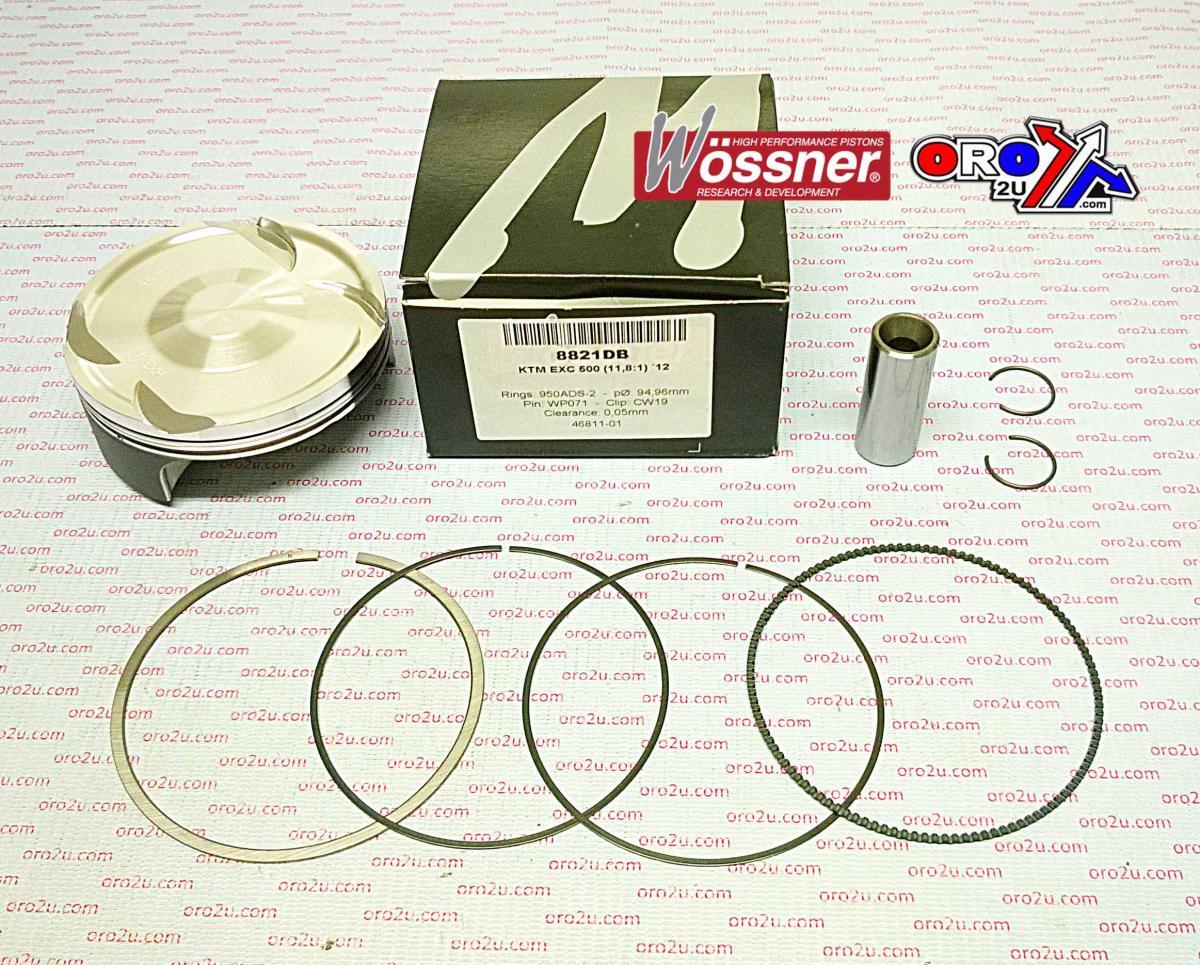

Wossner Forged Piston Kit +0.01mm Oversize
Upgrade your KTM EXC500's engine performance and durability with this Wossner forged piston kit. Engineered as a +0.01mm oversize component, this kit is designed for optimal fit and enhanced conformability to the cylinder bore, ensuring consistent performance and longevity.
Key Features
- Forged piston construction for superior mechanical strength and exceptional durability.
- Elliptical piston design promotes a uniform bearing surface, even under heat expansion.
- Optimized for efficient heat dissipation, maintaining ideal operating temperatures.
- Even thrust load distribution helps prevent piston collapse during operation.
- Hard Teflon skirt coating provides an enhanced fit and reduces friction for smoother operation.
Specifications
- Bore Size: 95.01mm
- Actual Piston Size: 94.96mm
- Displayed Displacement: 510 cm³
- Stroke: 72.00mm
- Piston Clearance: 0.05mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 11.80:1
- Dome Volume: -6.80 cm³
- Compression Height: 22.80mm
- Circlip Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 950ADS-2
