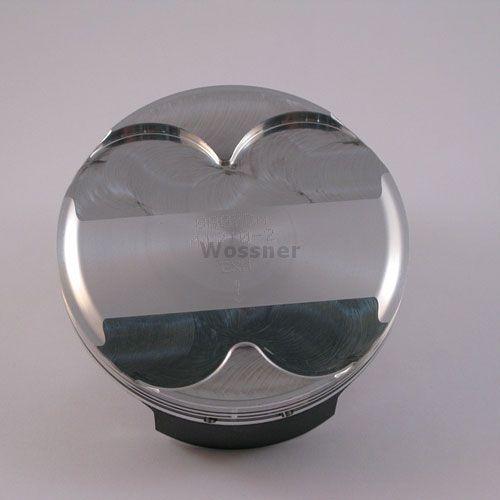

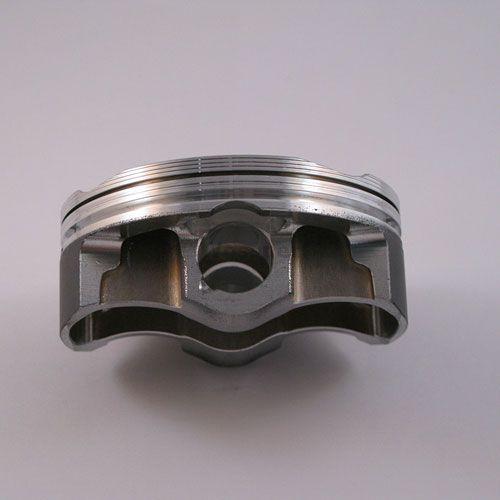

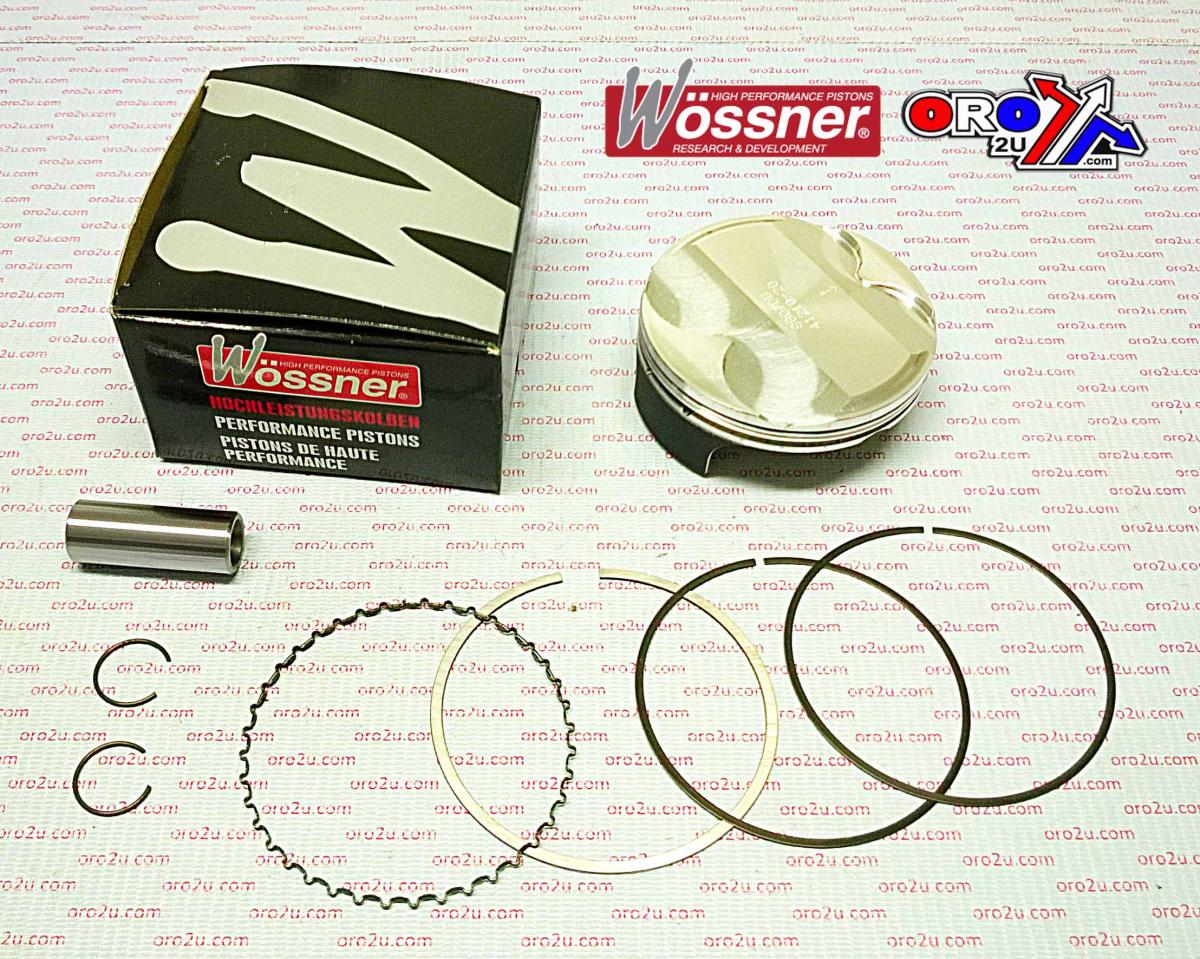

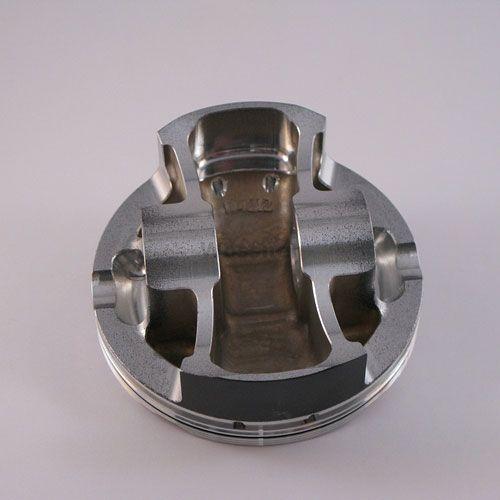

PISTON KIT 11-15 KTM350 90.00, FORGED WOSSNER 8807D200
Wossner forged piston kit designed for high-performance applications, offering superior strength and optimized heat transfer. The elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for precision and durability. Features include forged piston for enhanced strength and durability, optimized heat transfer to cylinder walls for improved performance, and elliptical design for even thrust load distribution. Specifications: Bore Size 90mm, Actual Bore 89.95mm, Display (cm³) 229, Stroke (mm) 53.60, Clearance (mm) 0.05, Wossner Compression Ratio OEM, OEM Compression Ratio 13.20:1, Dome Volume (cm³) +1.30, Compression Height (mm) 20.50, Theoretical Weight N/A, Lock Part Number CW18, Pin Part Number WP053, Ring Set Part Number 900XSY. Rod Part Numbers: P4040 (2010-2012), P4061 (2013-2015), P4069 (2016). Part Number: 56-W4735+200.WO.
- SKU
- 56-W4735+200.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for High-Performance Engines
Elevate your engine's performance with this Wossner forged piston kit, engineered for superior strength and optimized heat transfer. Designed with an elliptical profile, this piston ensures a uniform bearing surface even under extreme heat expansion, effectively reducing localized pressure and preventing piston collapse for enhanced durability and reliability.
Key Features:
- Forged Construction: Provides exceptional strength and longevity for demanding applications.
- Optimized Heat Transfer: Promotes efficient cooling by transferring heat effectively to cylinder walls, contributing to improved performance.
- Elliptical Piston Design: Guarantees even distribution of thrust loads under operating temperatures, minimizing wear and maximizing component life.
- German Engineering: Manufactured in Germany, ensuring precision, quality, and adherence to high production standards.
Specifications:
- Bore Size: 90mm
- Actual Bore: 89.95mm
- Display Volume: 229 cm³
- Stroke: 53.60mm
- Clearance: 0.05mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 13.20:1
- Dome Volume: +1.30 cm³
- Compression Height: 20.50mm
- Lock Ring Part Number: CW18
- Pin Part Number: WP053
- Ring Set Part Number: 900XSY
