PISTON KIT 11-15 KTM350 88.00, FORGED WOSSNER 8807DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

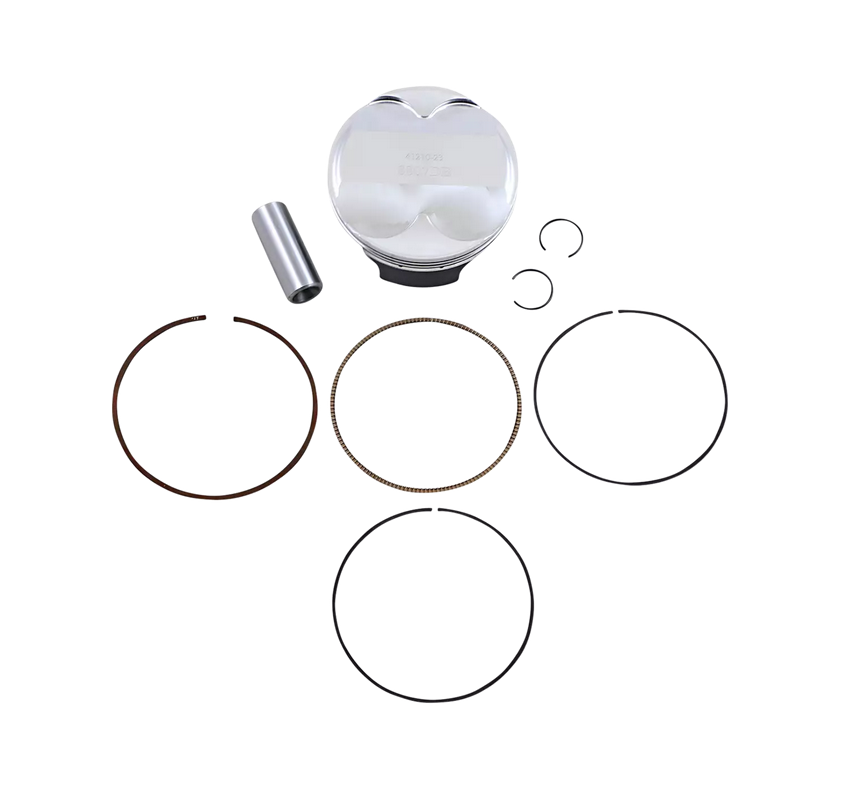

Wossner forged piston kit 56-W4735+00B.WO with a bore size of 88.01mm. This piston kit features an elliptical design for uniform bearing surface under heat expansion, optimizing heat transfer and reducing localized pressure. It is manufactured in Germany for precision and durability. Specifications include actual bore 87.96mm, display 229 cm³, stroke 53.60mm, clearance 0.05mm, Wossner compression ratio OEM, OEM compression ratio 13.20:1, dome volume +1.30 cm³, compression height 20.50mm, lock part number CW18, pin part number WP053, and ring set part number 880XSY. Rod part numbers P4040, P4061, and P4069 are also listed.
- SKU
- 56-W4735+00B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 88mm
- Variant Id
- 255997
FULL DESCRIPTION
Wossner Forged Piston Kit - 88.00mm Bore
Enhance your motorcycle's performance with this Wossner forged piston kit. Engineered for demanding applications, this piston offers superior strength and durability compared to cast alternatives. Its advanced design ensures optimal heat transfer, contributing to improved efficiency and power output. Manufactured with precision in Germany, Wossner pistons are built to withstand rigorous use.
The unique elliptical design of this piston plays a crucial role in its performance under extreme conditions. This curvature ensures a uniform bearing surface even as the piston expands due to heat, effectively distributing thrust loads and preventing localized pressure points. This intelligent design helps to avoid piston collapse and maintain consistent performance.
Key Features
- Forged Construction: Provides exceptional strength and resistance to wear for extended longevity.
- Optimized Heat Transfer: Designed to efficiently transfer heat to the cylinder walls, promoting better cooling and performance.
- Elliptical Design: Creates an even bearing surface under thermal expansion, reducing stress and preventing premature failure.
- German Engineering: Manufactured in Germany to exacting standards for precision and reliability.
Specifications
- Bore Size: 88.01mm
- Actual Bore: 87.96mm
- Clearance: 0.05mm
- Compression Height: 20.50mm
- Dome Volume: +1.30 cm³
- Lock Part Number: CW18
- Pin Part Number: WP053
- Ring Set Part Number: 880XSY
