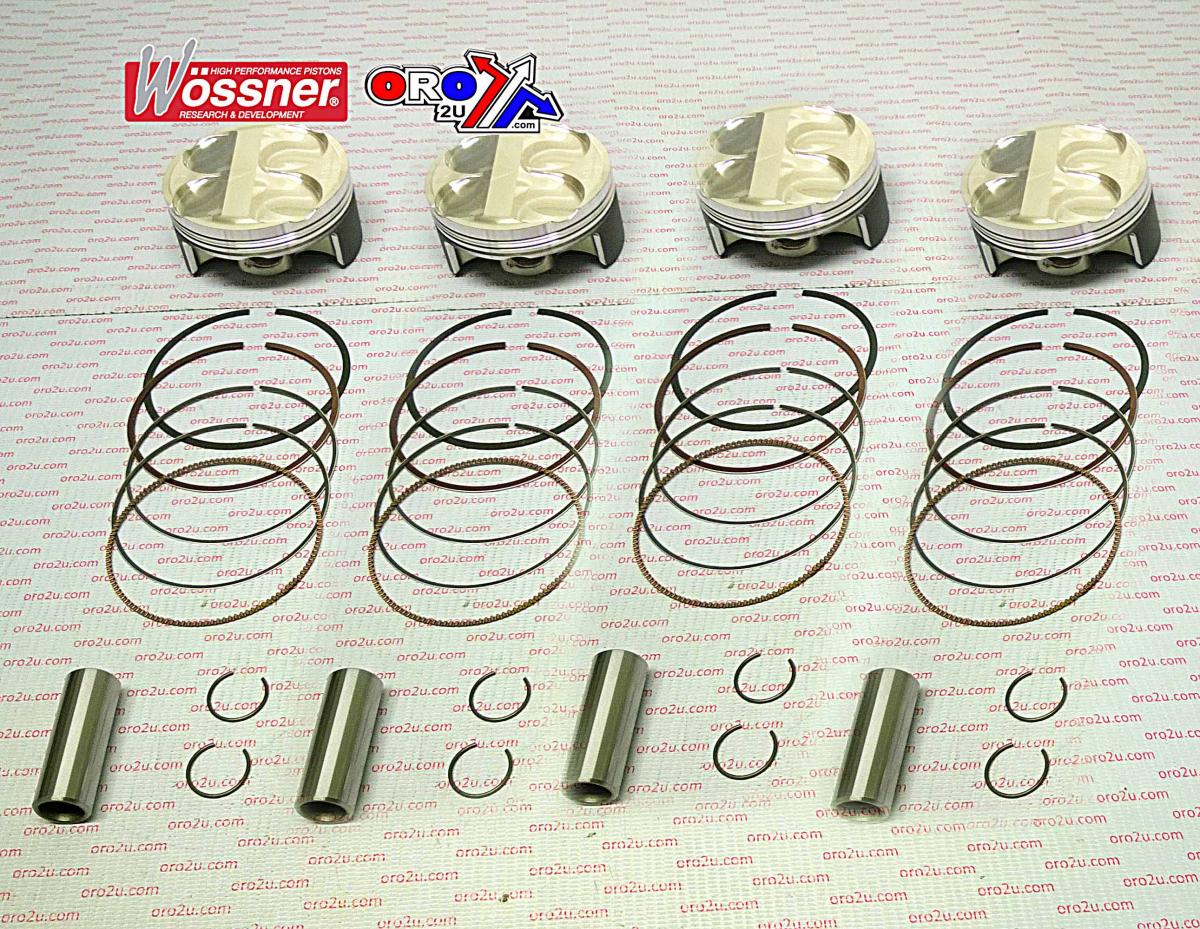

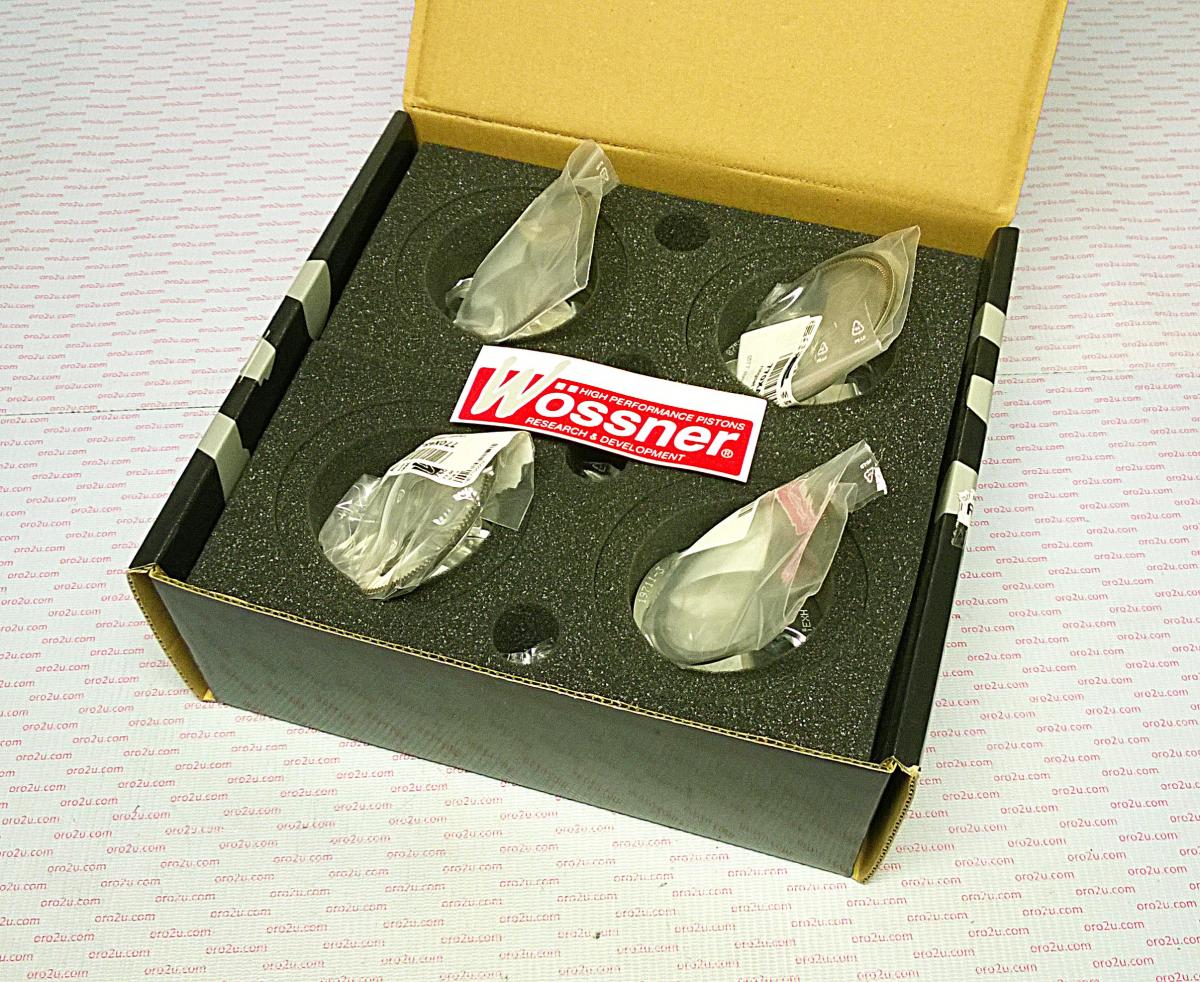

PISTON KIT 11-14 ZX10R KAW, WOSSNER K8832D200-4 FULL SET, KAWASAKI ROAD

£633.54Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner piston kit with 78mm bore and 2.00mm oversize for Kawasaki ZX10R models from 2011 onward. Precision-forged in Germany for high-performance engines, offering superior strength, heat dissipation, and stability under thermal expansion. Features an elliptical profile for even load distribution, reducing stress and preventing piston collapse. Forged construction for enhanced strength and performance. Designed for effective heat transfer from the combustion chamber to the cylinder walls. Elliptical shape maintains a uniform bearing surface under expansion. Even thrust load distribution reduces the risk of piston failure. Manufactured in Germany. Specifications include: Bore: 78mm (+2.00mm Oversize), Actual bore: 77.94mm, Display volume: 998 cm³, Stroke: 55.00mm, Clearance: 0.06mm, Wossner compression ratio: 13.50:1, OEM compression ratio: 13.00:1, Dome volume: -3.00 cm³, Compression height: 22.70mm, Lock Part Number: CW17, Pin Part Number: WP038, Ring Set Part Number: 780XAS. Cross-reference OEM Part Numbers: 56-W9809.78.WO, K8832D200-4. Weight: 1358g.

Specifications
SKU
56-W9809.78.WO
Brand
Wossner
Availability
In Stock (1)
General Product Group
Engine
General Product Type
Pistons & Kits
Variant Id
258794
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Oversized Piston Kit 78mm Bore for Kawasaki ZX10R

Enhance the performance and durability of your Kawasaki ZX10R with this precision-engineered Wossner piston kit. Featuring a 78mm bore, this kit is an oversized (+2.00mm) replacement designed for high-performance applications.

Key Features:

  • Forged Construction: Precision-forged in Germany, this piston offers superior strength, enhanced heat dissipation, and excellent stability under thermal expansion, ensuring reliable performance in demanding conditions.
  • Elliptical Profile: The unique elliptical shape of the piston allows for even load distribution. This reduces stress on the piston and cylinder walls, preventing piston collapse and prolonging engine life.
  • Optimized Heat Transfer: Engineered for effective heat transfer from the combustion chamber to the cylinder walls, contributing to overall engine efficiency and longevity.
  • Even Thrust Load Distribution: The design ensures uniform bearing surface under expansion and even thrust load distribution, minimizing the risk of piston failure.
  • High-Performance Specifications: This kit offers a Wossner compression ratio of 13.50:1, an increase from the OEM 13.00:1 ratio, for a noticeable power boost.

Specifications:

  • Bore: 78mm (+2.00mm Oversize)
  • Actual Bore: 77.94mm
  • Display Volume: 998 cm³
  • Stroke: 55.00mm
  • Clearance: 0.06mm
  • Wossner Compression Ratio: 13.50:1
  • OEM Compression Ratio: 13.00:1
  • Dome Volume: -3.00 cm³
  • Compression Height: 22.70mm
  • Lock Part Number: CW17
  • Pin Part Number: WP038
  • Ring Set Part Number: 780XAS
