PISTON KIT 11-14 KX250F 77mm C, 8816DC WOSSNER HC
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

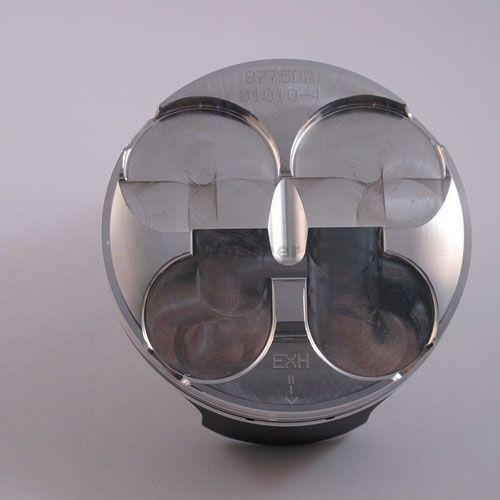

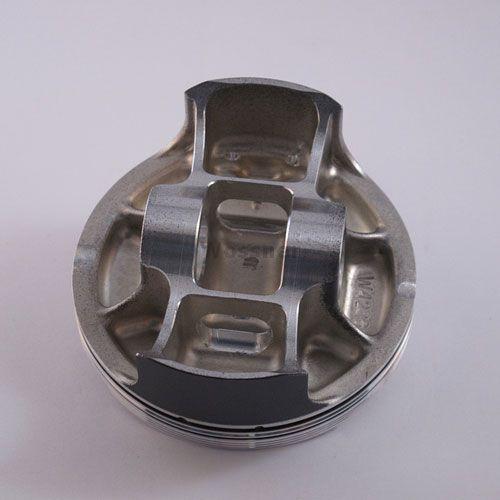

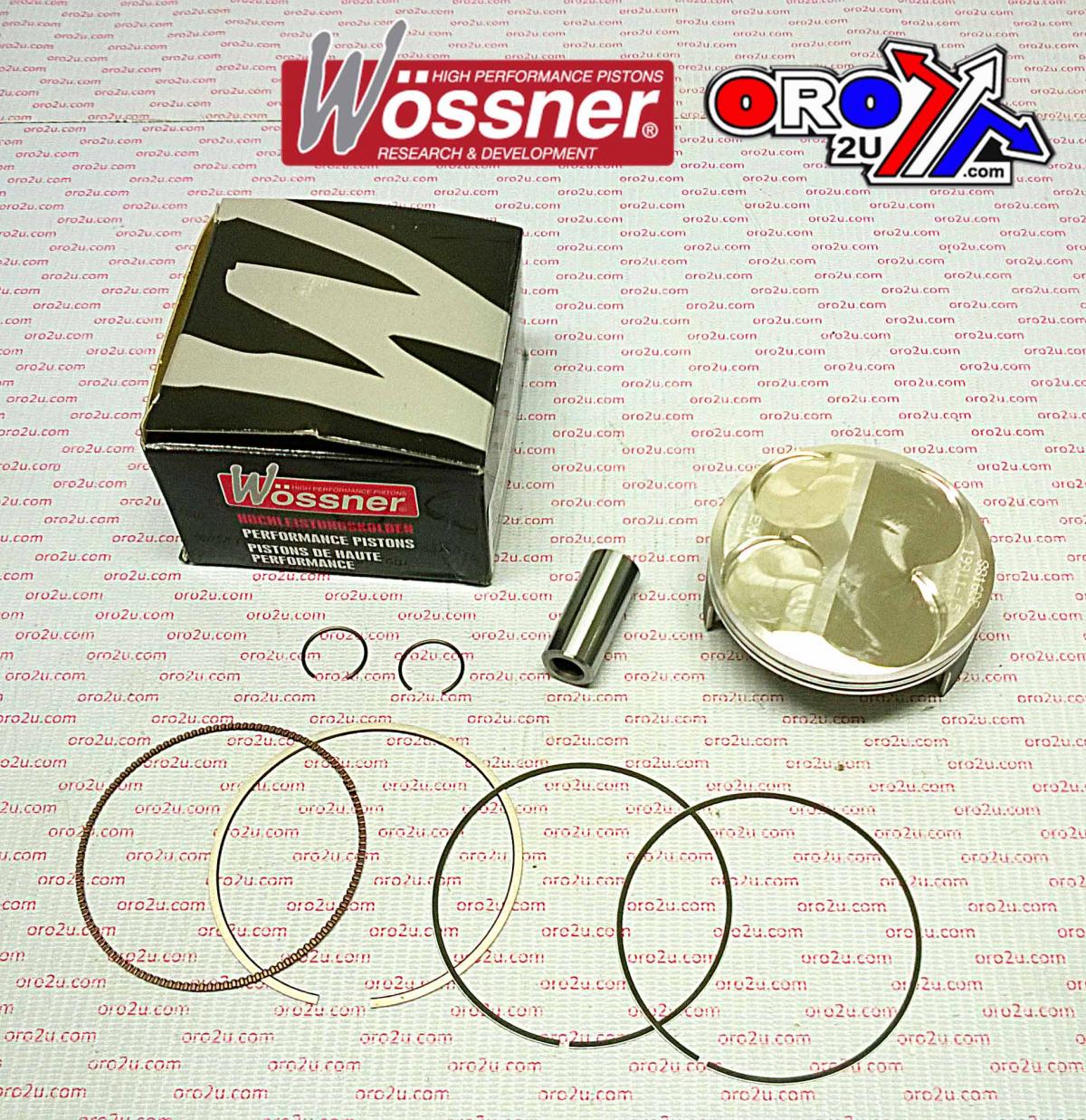

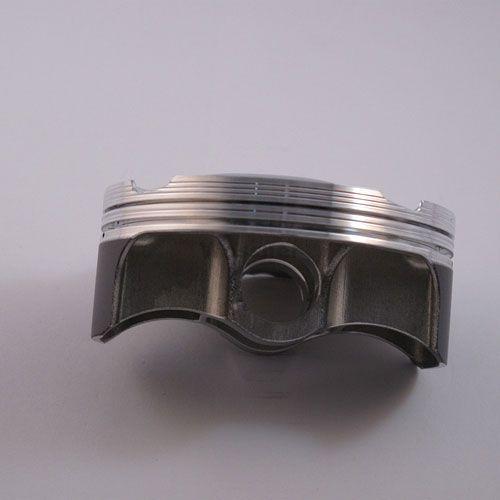

This Wossner forged high-compression piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize fitment. Engineered in Germany with a two-ring design and elliptical profile, it ensures consistent load distribution and durability. The piston includes a hard Teflon skirt coating for optimal cylinder conformity and improved wear resistance. This kit features a forged high-compression piston with a two-ring configuration and an elliptical design for uniform pressure distribution during thermal expansion. The hard Teflon skirt coating enhances fit and reduces friction. The piston is engineered for effective combustion heat transfer. Specifications include a bore size of 77.02mm (actual 76.98mm), displacement of 250 cm³, stroke of 53.60 mm, clearance of 0.04 mm, a Wossner compression ratio of 14.20:1, an OEM compression ratio of 13.50:1, a dome volume of -1.70 cm³, a compression height of 19.60 mm, lock part number CW16, pin part number WP070, and ring set part number 770XAS-S. The manufacturer is Wossner. Weight is 220 grams.
- SKU
- 56-W952.C.WO.HC
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 250F | 2016 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77.00mm
- Variant Id
- 258364
FULL DESCRIPTION
Wossner High-Compression Piston Kit for Kawasaki KX250F (2011-2014)
Upgrade your Kawasaki KX250F's performance with this premium Wossner forged high-compression piston kit. Engineered in Germany, this kit is designed to provide a significant boost in power and durability for your 250cc off-road motorcycle.
Key Features:
- Forged High-Compression Piston: Offers enhanced strength and performance for demanding riding conditions.
- Two-Ring Configuration: Ensures optimal sealing and reduced friction for improved efficiency.
- Elliptical Piston Design: Promotes uniform pressure distribution, even during thermal expansion, contributing to longevity.
- Hard Teflon Skirt Coating: Provides superior cylinder conformity, reduces friction, and enhances wear resistance for a smoother operation.
- Engineered for Heat Transfer: Designed to effectively manage combustion heat, contributing to consistent performance and engine health.
- German Engineering: Built to the highest standards of quality and precision by Wossner.
Specifications:
- Bore Size: 77.02mm (actual 76.98mm)
- Displacement: 250 cm³
- Stroke: 53.60 mm
- Clearance: 0.04 mm
- Wossner Compression Ratio: 14.20:1
- OEM Compression Ratio: 13.50:1
- Dome Volume: -1.70 cm³
- Compression Height: 19.60 mm
- Lock Part Number: CW16
- Pin Part Number: WP070
- Ring Set Part Number: 770XAS-S
