PISTON KIT 11-14 KX250F 77mm C, 8814DC WOSSNER KAWASAKI

£168.44Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit with a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification. This two-ring piston is precision-manufactured in Germany and features an elliptical design for balanced thrust force distribution and efficient heat transfer. Specifications include a 249 cm³ displacement, 53.60 mm stroke, 0.04 mm clearance, OEM compression ratio, 13.50:1 OEM compression ratio, -2.80 cm³ dome volume, 19.60 mm compression height, CW16 lock part number, WP070 pin part number, and 770XAS-2 ring set part number.

Specifications
SKU
56-W952.C.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (7)

MakeModelYear
KAWASAKIKX 250F2010
KAWASAKIKX 250F2011
KAWASAKIKX 250F2012
KAWASAKIKX 250F2013
KAWASAKIKX 250F2014
KAWASAKIKX 250F2015
KAWASAKIKX 250F2016
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
77.00mm
Variant Id
258363
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

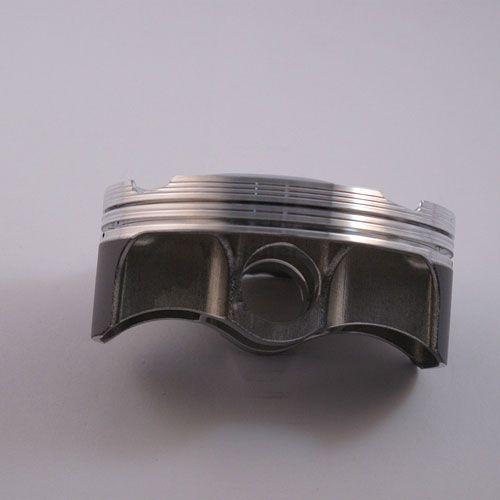

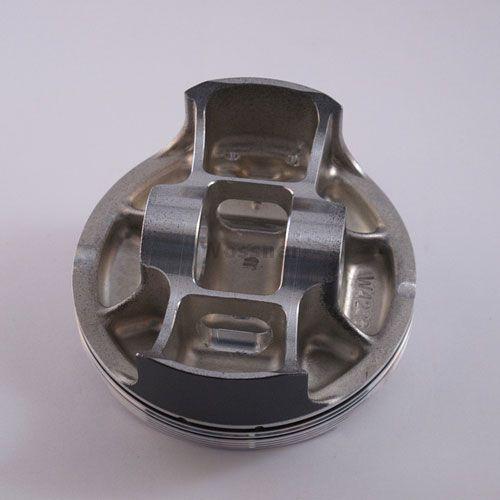

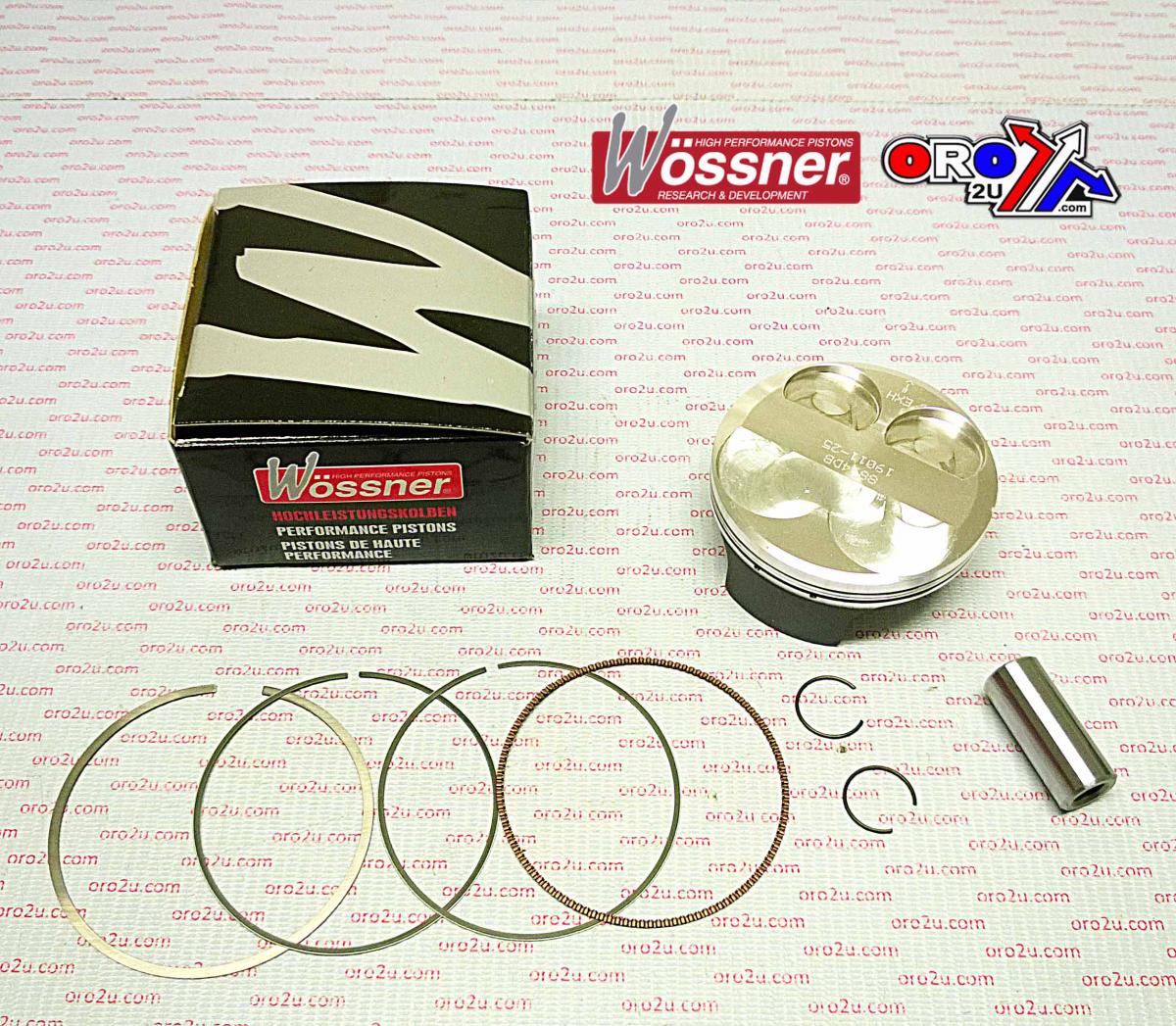

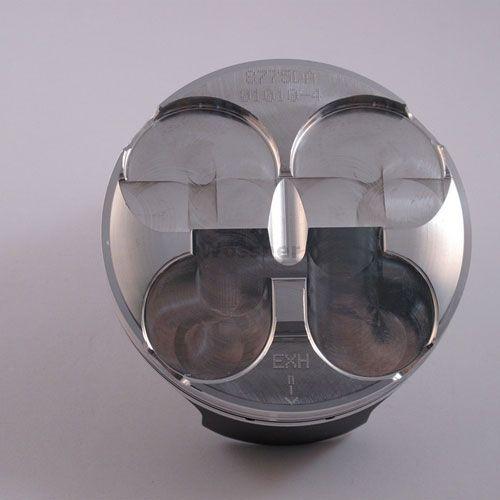

Wossner 77mm Forged Piston Kit for Kawasaki KX250F (2011-2014)

Upgrade your Kawasaki KX250F's engine performance with this high-quality Wossner forged piston kit. Engineered for durability and optimal power output, this piston kit is designed to meet the demands of high-performance riding.

Key Features:

  • Forged piston construction ensures superior strength and longevity under extreme conditions.
  • Features a two-ring design for enhanced sealing and improved combustion efficiency.
  • The elliptical piston shape promotes balanced thrust force distribution, reducing stress on the engine.
  • Precision manufacturing in Germany guarantees exceptional quality and reliability.
  • Designed for efficient heat dissipation, helping to maintain optimal engine temperatures.

Specifications:

  • Bore Size: 77.02mm (actual 76.98mm) - a +0.02mm oversize for precise fitting.
  • Stroke: 53.60 mm
  • Clearance: 0.04 mm
  • Compression Ratio (Wossner): OEM Equivalent
  • Compression Ratio (OEM): 13.50:1
  • Dome Volume: -2.80 cm³
  • Compression Height: 19.60 mm
  • Lock Part Number: CW16
  • Pin Part Number: WP070
  • Ring Set Part Number: 770XAS-2

This Wossner piston kit is an excellent choice for riders seeking to maintain or enhance the performance of their Kawasaki KX250F.
