PISTON KIT 11-14 KX250F 77mm B, 8816DB WOSSNER KAWASAKI HC
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with a 77.01mm bore size (76.97mm actual) for Kawasaki KX250F models. Features a hard Teflon skirt coating for improved cylinder conformity and long-term reliability. Includes a two-ring setup and an elliptical design for balanced load distribution and efficient thermal performance. Manufactured in Germany. Specifications: Bore Size 77.01mm (actual 76.97mm), Displacement 250 cm³, Stroke 53.60 mm, Clearance 0.04 mm, Compression Ratio (Wossner) 14.20:1, Compression Ratio (OEM) 13.50:1, Dome Volume -1.70 cm³, Compression Height 19.60 mm, Lock Part Number CW16, Pin Part Number WP070, Ring Set Part Number 770XAS-S.
- SKU
- 56-W952.B.WO.HC
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 250F | 2016 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77.00mm
- Variant Id
- 258361
FULL DESCRIPTION

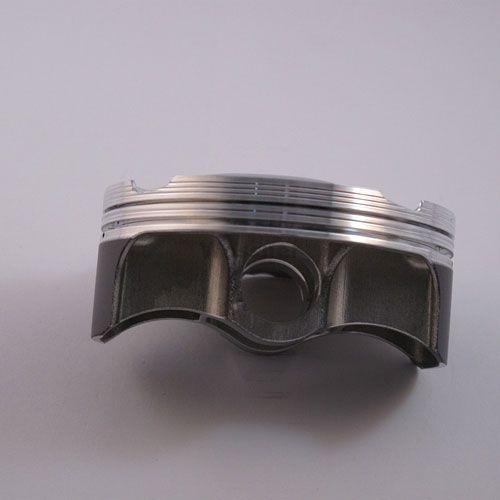

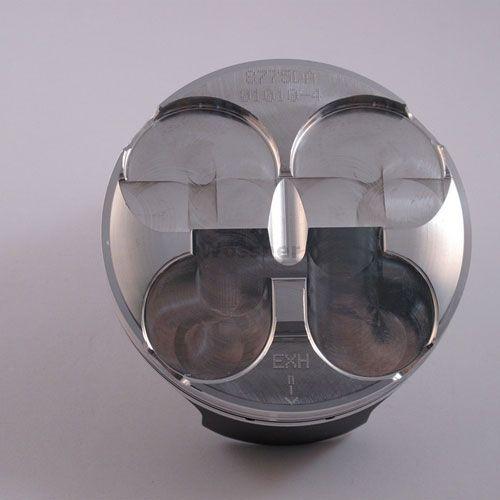

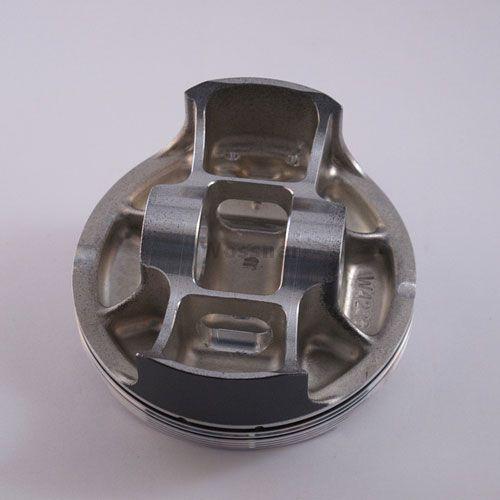

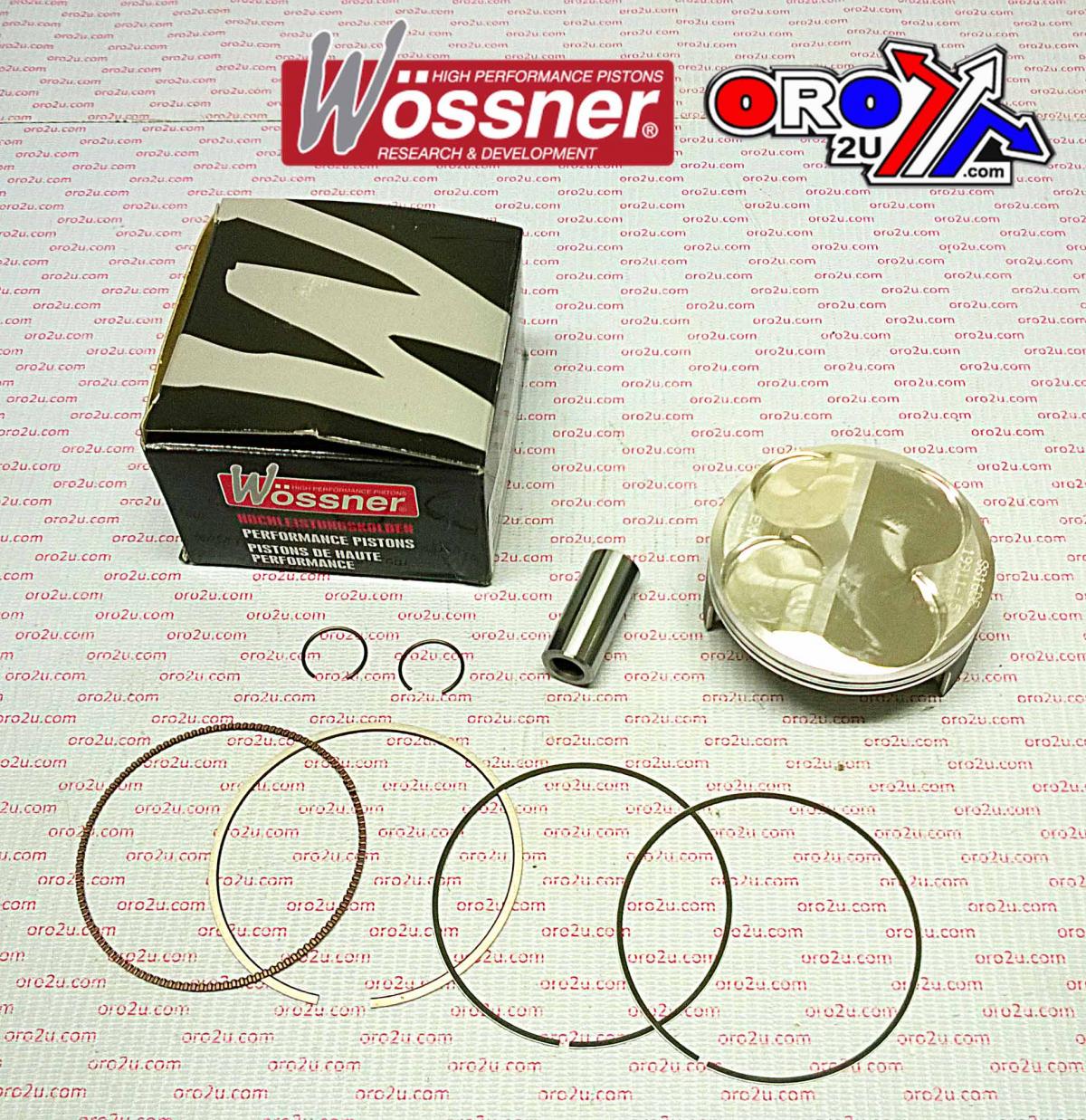

Wossner Forged High-Compression Piston Kit for Kawasaki KX250F
Upgrade your Kawasaki KX250F's performance with this Wossner forged high-compression piston kit. Engineered in Germany, this piston is designed for optimal power and reliability, featuring a 77.01mm bore size (76.97mm actual) for a precise fit. The advanced two-ring design and elliptical profile ensure balanced load distribution and efficient operation, even under high heat conditions.
Key Features:
- Forged high-compression piston with a two-ring configuration for enhanced performance.
- Elliptical piston profile is engineered for uniform pressure distribution as the piston expands with heat.
- Features a hard Teflon skirt coating that improves conformity to the cylinder wall and increases wear resistance.
- Designed for superior heat transfer efficiency, contributing to overall engine longevity.
- Precision manufactured in Germany to Wossner's high-quality standards.
Specifications:
- Bore Size: 77.01mm (actual measurement 76.97mm)
- Dome Volume: -1.70 cm³
- Compression Height: 19.60 mm
- Lock Part Number: CW16
- Pin Part Number: WP070
- Ring Set Part Number: 770XAS-S
- Compression Ratio (Wossner): 14.20:1
- Compression Ratio (OEM): 13.50:1
