PISTON KIT 11-14 KX250F 77mm A, 8814DA WOSSNER KAWASAKI 13001-0125
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner forged piston kit with 77mm bore size (76.96mm actual) and a two-ring configuration. Features an elliptical shape for even load distribution under thermal expansion, promoting effective heat transfer and long-term durability. Manufactured in Germany. Specifications include 249 cm³ displacement, 53.60 mm stroke, 0.04 mm clearance, OEM compression ratio, 13.50:1 OEM compression ratio, -2.80 cm³ dome volume, 19.60 mm compression height, lock part number CW16, pin part number WP070, and ring set part number 770XAS-2. Cross-reference OEM part numbers: 13001-0125, 40019M07700. Weight: 222g.
- SKU
- 56-W952.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 250F | 2016 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77.00mm
- Variant Id
- 258357
FULL DESCRIPTION

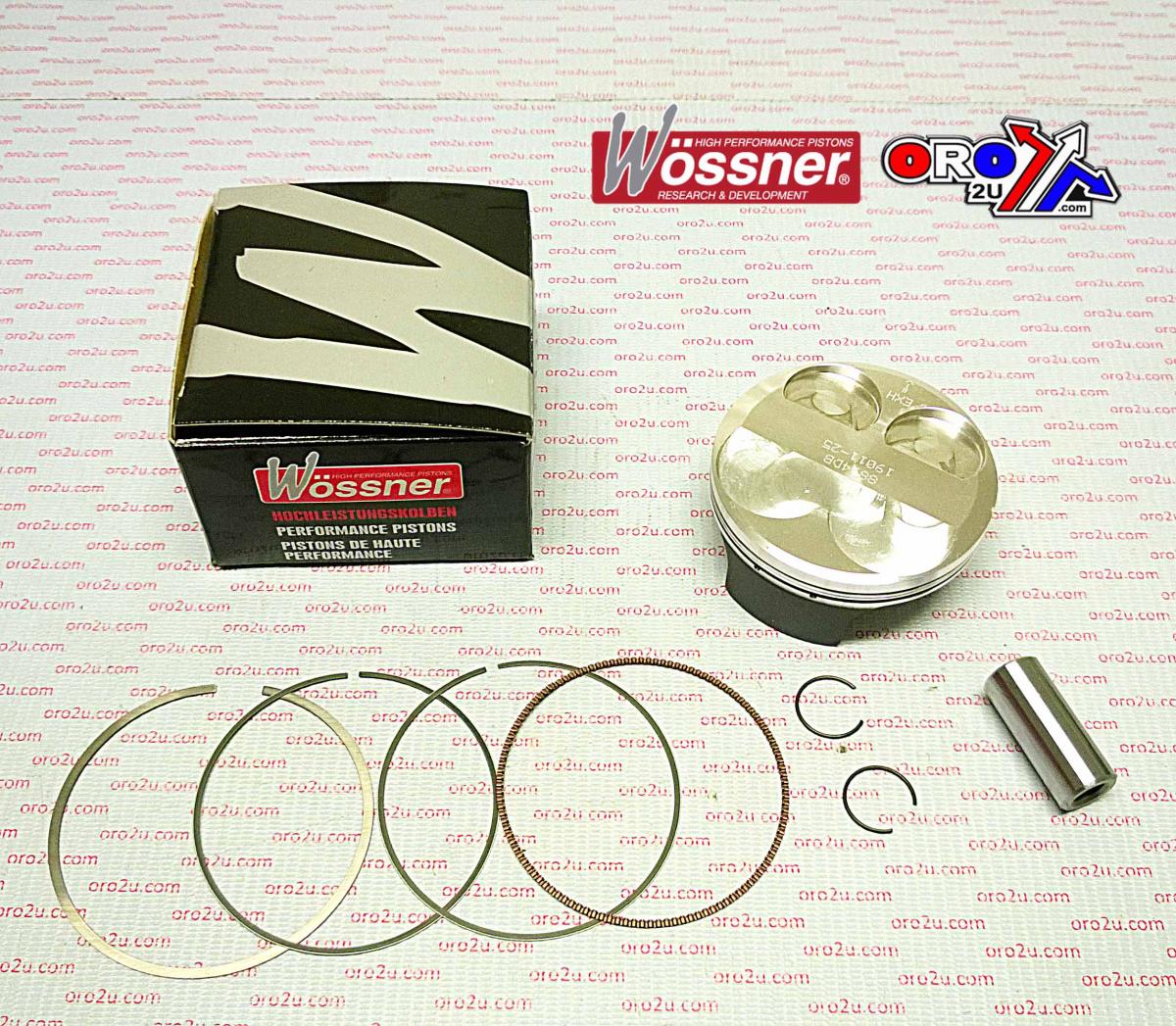

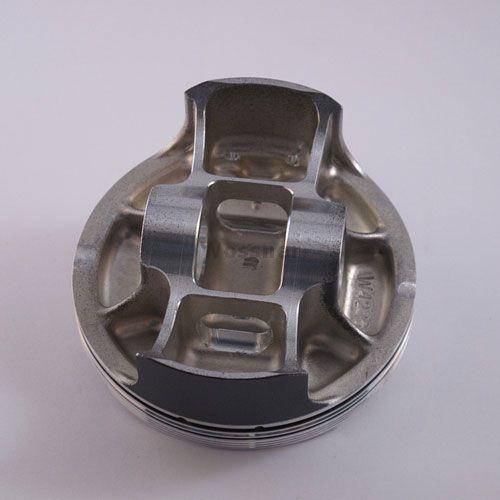

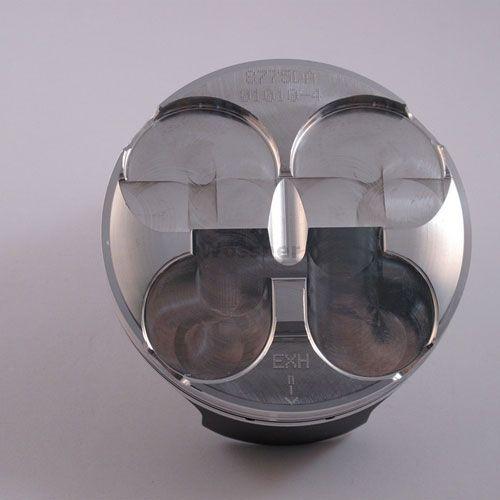

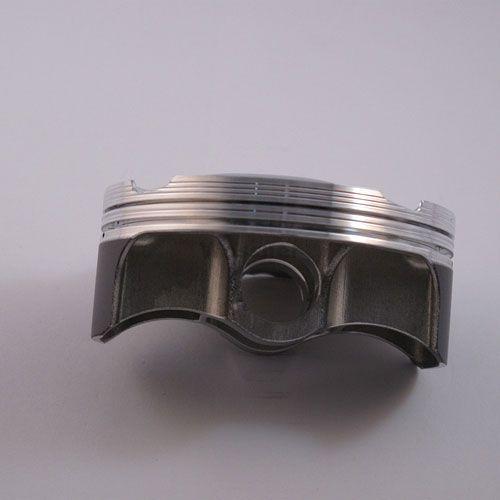

Wossner Forged Piston Kit - 77mm Bore
This Wossner forged piston kit is engineered for high-performance and durability. Manufactured in Germany, it features a precise 77mm bore size (actual 76.96mm) and a two-ring design. The piston's elliptical profile is crafted to ensure even load distribution under thermal expansion, contributing to optimal engine performance and longevity.
Key Features:
- Forged piston construction for superior strength and durability.
- Two-ring design for effective sealing and performance.
- Elliptical profile promotes even thrust load distribution during operation.
- Engineered for efficient heat transfer from the combustion chamber to the cylinder walls.
- German manufacturing ensures high quality and precision.
Specifications:
- Bore Size: 77mm (actual 76.96mm)
- Displacement: 249 cm³
- Stroke: 53.60 mm
- Clearance: 0.04 mm
- Compression Ratio (Wossner): OEM
- Compression Ratio (OEM): 13.50:1
- Dome Volume: -2.80 cm³
- Compression Height: 19.60 mm
- Lock Part Number: CW16
- Pin Part Number: WP070
- Ring Set Part Number: 770XAS-2
Cross-Reference OEM Part Numbers:
- 13001-0125
- 40019M07700
