PISTON KIT 100MM HONDA CRF 450 02-08, ATHENA S4F10000007A BIG BORE

Athena Forged Big Bore Piston Kit

Enhance the performance and reliability of your motorcycle with this Athena Forged Big Bore Piston Kit. Engineered in Italy by Athena's R&D department, this piston kit is designed for superior strength and durability.

Crafted from a special high-performance aluminum alloy with a high silicon content, Athena pistons offer excellent resistance and performance, rivaling OE specifications. The kit features advanced technical solutions and adheres to the highest quality standards.

The piston's smooth profile ensures optimal airflow and perfect flame propagation. Some piston skirts are treated with a molybdenum disulfide coating, applied by screen printing, to further reduce friction, boosting performance and extending lifespan.

This piston kit is specifically designed for Athena Big Bore cylinder kits and includes high-quality piston rings produced in Japan with wear-resistant coatings (PVD or chromium nitride) for increased durability and longevity. The rings perfectly conform to the cylinder liner, even under low tangential load, ensuring reduced friction and higher performance.

Key Features:

• Forged Piston Type
• Manufactured using cutting-edge CNC machining tools for precise dimensional tolerances (less than 0.01 mm).
• Special high-performance aluminum alloy with high silicon content for enhanced reliability and resistance.
• Molybdenum disulfide coating on some piston skirts reduces friction and improves durability.
• Piston rings made in Japan with wear-resistant coatings for increased lifespan.

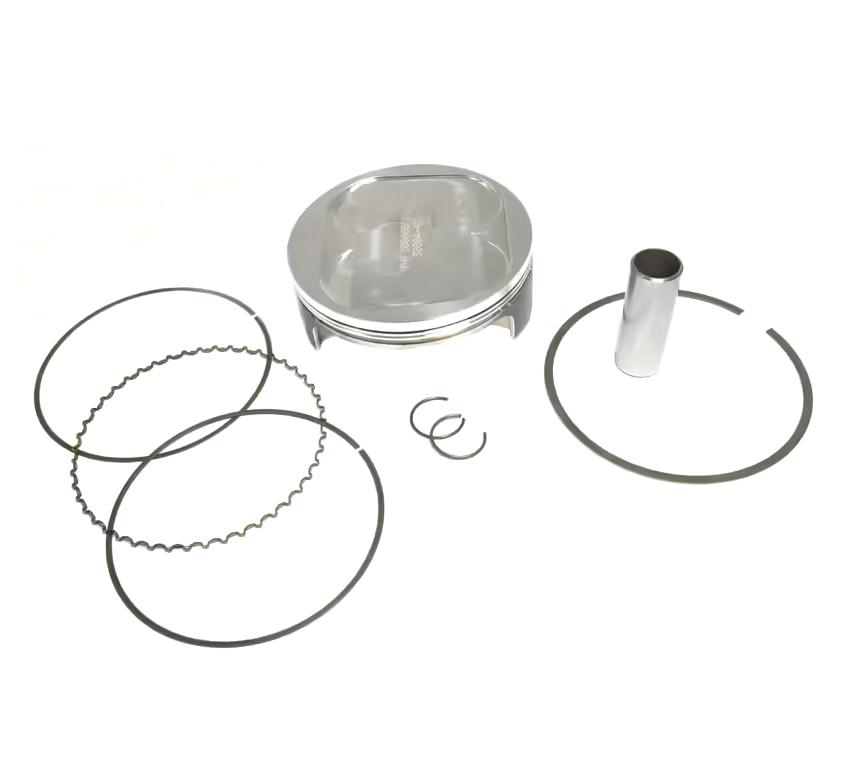

• Kit includes piston, pin, circlips, and piston rings. All components are replaceable and interchangeable.
• Engineered and tested on engine dynamometer benches and on track for validation under extreme conditions.
• Designed to provide greater displacement and power.

Technical Specifications:

• Bore Diameter: 99.95 mm
• Piston Type: Forged
• Number Of Segments: 2
• Piston Pin Type: Biconical
• Big End Pin Diameter: 19x12x51 mm
• Compression Height: 29.00 mm
• Compression Ratio: 11.6:1
• Displacement: 450 cc
• Net Weight: 0.39 Kg

Note: Products produced for greater displacement and power than those provided by road codes are intended exclusively for competitive use. Athena disclaims all responsibility for any use of the product contrary to national regulations.
