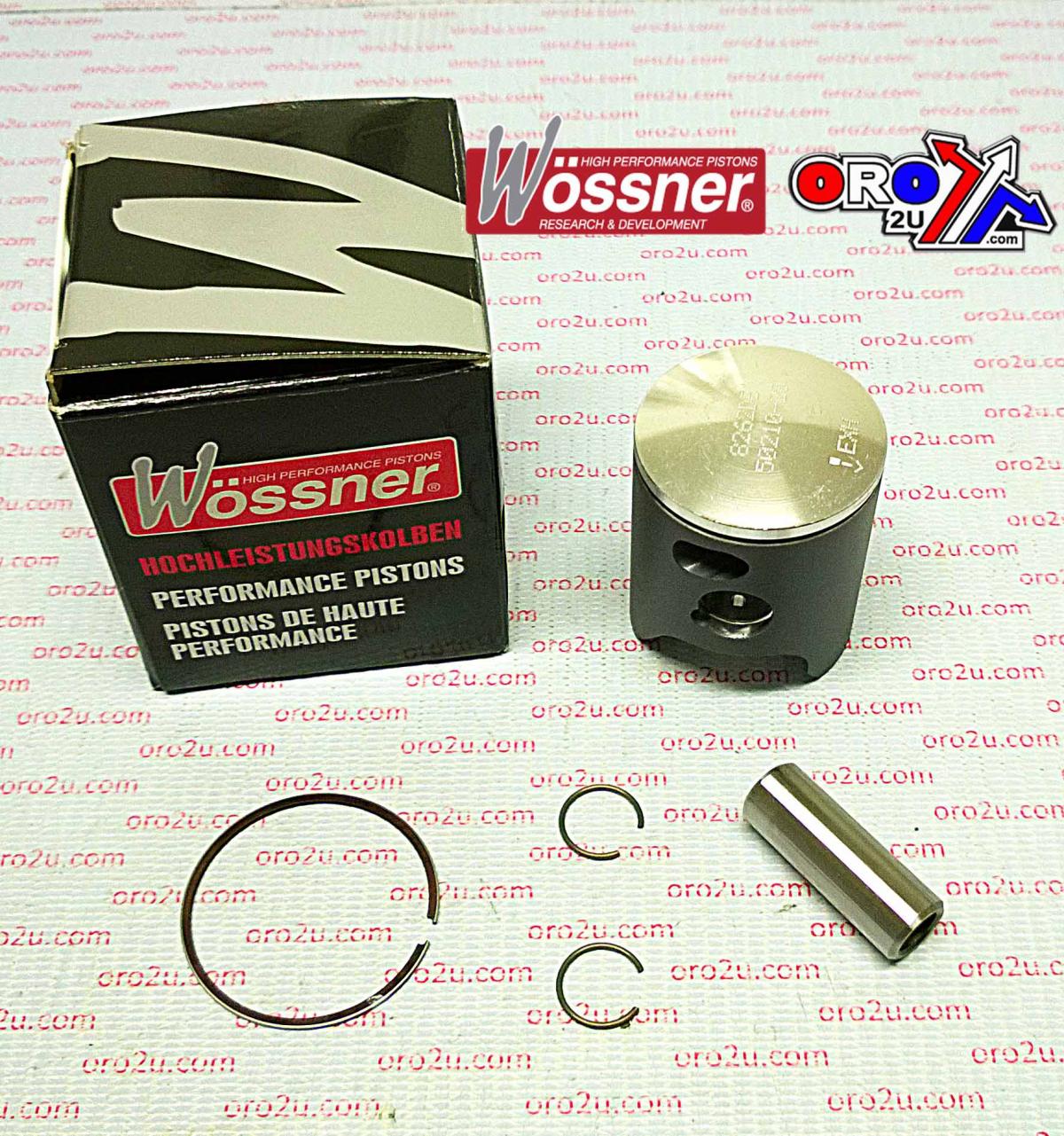

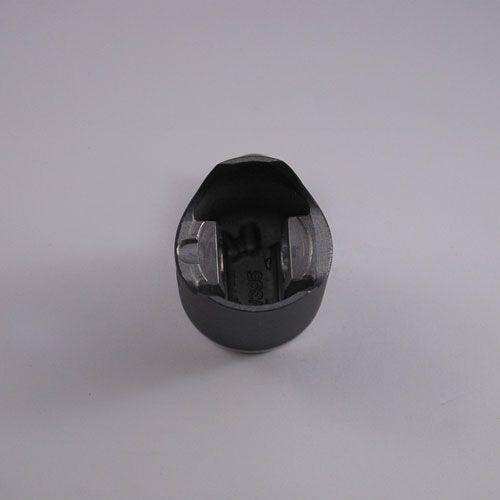

PISTON KIT 09-18 SX50 39.5mm C, WOSSNER 8262DC KTM MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
This Wossner forged piston kit has a 39.52mm bore and is designed for 50 cm³ engines. It features a forged construction for superior strength and endurance, optimized heat dissipation, and an elliptical design for even pressure distribution and to resist piston collapse. Manufactured in Germany, this piston kit includes specifications such as 40.00mm stroke, 21.60mm compression height, lock part number CW12, pin part number WP101, ring set part number RSB2950, and rod part number P2053. The compression ratio is 2-stroke compatible with Wossner and OEM parts. It also lists the cross-reference OEM part number 45230007000 I.
- SKU
- 56-W802.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (31)
| Make | Model | Year |
|---|---|---|
| GASGAS | MC 50 | 2021 |
| GASGAS | MC 50 | 2022 |
| GASGAS | MC 50 | 2023 |
| GASGAS | MC 50 | 2024 |
| GASGAS | MC 50 | 2025 |
| HUSQVARNA | TC 50 | 2017 |
| HUSQVARNA | TC 50 | 2018 |
| HUSQVARNA | TC 50 | 2019 |
| HUSQVARNA | TC 50 | 2020 |
| HUSQVARNA | TC 50 | 2021 |
| HUSQVARNA | TC 50 | 2022 |
| HUSQVARNA | TC 50 | 2023 |
| HUSQVARNA | TC 50 | 2024 |
| HUSQVARNA | TC 50 | 2025 |
| KTM | 50 SX | 2009 |
| KTM | 50 SX | 2010 |
| KTM | 50 SX | 2011 |
| KTM | 50 SX | 2012 |
| KTM | 50 SX | 2013 |
| KTM | 50 SX | 2014 |
| KTM | 50 SX | 2015 |
| KTM | 50 SX | 2016 |
| KTM | 50 SX | 2017 |
| KTM | 50 SX | 2018 |
| KTM | 50 SX | 2019 |
| KTM | 50 SX | 2020 |
| KTM | 50 SX | 2021 |
| KTM | 50 SX | 2022 |
| KTM | 50 SX | 2023 |
| KTM | 50 SX | 2024 |
| KTM | 50 SX | 2025 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 39.5mm
- Variant Id
- 257815
FULL DESCRIPTION
Wossner Forged Piston Kit - 39.5mm Oversize
Enhance the performance and reliability of your small-capacity two-stroke engine with this Wossner forged piston kit. Designed for high-performance output, this German-manufactured piston kit features a precision-engineered elliptical profile to optimize thermal efficiency and structural resilience.
Key Features:
- Forged Construction: Offers superior strength and endurance for demanding applications.
- Optimized Heat Dissipation: Engineered for efficient heat transfer to the cylinder walls, ensuring consistent and reliable performance.
- Elliptical Design: Promotes even pressure distribution and effectively resists piston collapse under stress.
- Precision Engineering: Manufactured in Germany to exacting standards for optimal fit and function.
Specifications:
- Bore: 39.52mm
- Actual Bore: 39.47mm
- Engine Displacement: 50 cm³
- Stroke: 40.00mm
- Clearance: 0.04mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
- Compression Height: 21.60mm
- Lock Part Number: CW12
- Pin Part Number: WP101
- Ring Set Part Number: RSB2950
- Rod Part Number: P2053
Cross-Reference OEM Part Numbers:
- 45230007000 I
