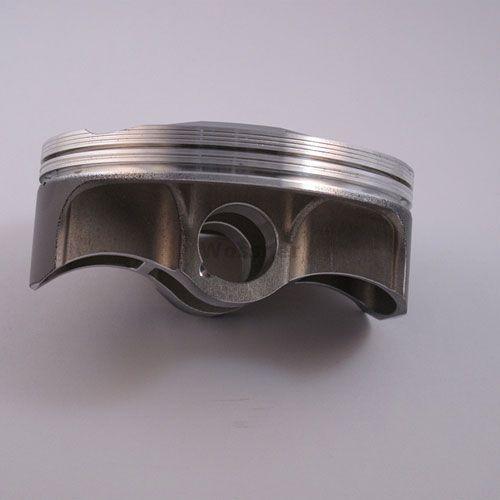

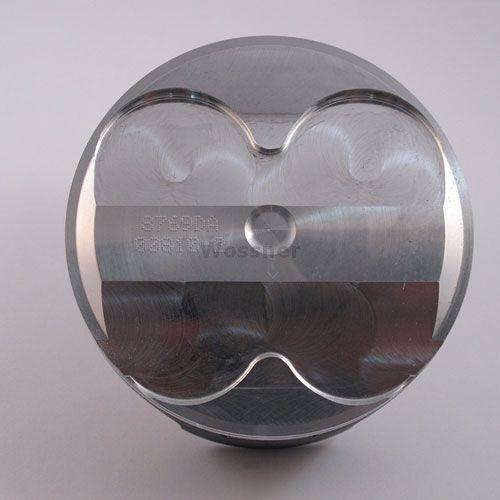

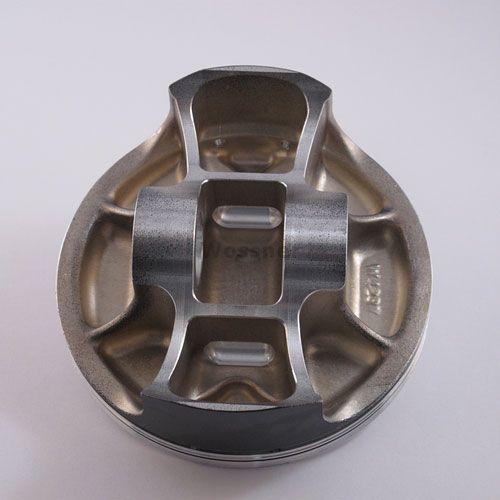

PISTON KIT 09-12 KXF450 HC 96, FORGED WOSSNER 8769DC
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with a 96.02mm bore (95.98mm) and 13.5:1 compression ratio. Features optimized heat transfer for enhanced durability, an elliptical design for uniform bearing surface under heat expansion, and even thrust load distribution to prevent piston collapse. Manufactured in Germany. Specifications: Bore Size 96.02mm (95.98mm), Part Number 8769DC, Lock Part Number CW19, Pin Part Number WP071, Ring Set Part Number 960ADS-2, Rod Part Number P4020, Displacement 449 cm³, Stroke 62.10mm, Clearance 0.04mm, OEM Compression Ratio 12.5:1, Dome Volume +4.20 cm³, Compression Height 23.70mm.
- SKU
- 56-W309.C.WO
- Brand
- Wossner
- Availability
- In Stock (4)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 255371
FULL DESCRIPTION
Wossner High Compression Forged Piston Kit - 96.02mm Bore
Enhance the performance and durability of your engine with this Wossner forged high-compression piston kit. Engineered for superior strength and optimized heat transfer, this piston kit is designed to deliver exceptional combustion efficiency. The advanced elliptical design ensures even distribution of thrust loads, effectively reducing localized pressure and preventing piston collapse under extreme conditions. Manufactured with precision in Germany, this kit represents a significant upgrade for high-performance applications.
Key Features:
- High-compression forged piston design for increased engine performance.
- Optimized heat transfer capabilities for improved durability and longevity.
- Elliptical piston shape promotes uniform bearing surface under thermal expansion.
- Even distribution of thrust loads to effectively prevent piston collapse.
- Precision manufactured in Germany to the highest standards.
Specifications:
- Bore Size: 96.02mm (95.98mm)
- Compression Ratio: 13.5:1
- Dome Volume: +4.20 cm³
- Compression Height: 23.70mm
- Stroke: 62.10mm
- Clearance: 0.04mm
- Displacement: 449 cm³
- Includes Lock Part Number: CW19
- Includes Pin Part Number: WP071
- Includes Ring Set Part Number: 960ADS-2
- Includes Rod Part Number: P4020
- OEM Compression Ratio comparison: 12.5:1
