PISTON KIT 09-12 KXF450 HC 96, FORGED WOSSNER 8769DA 13001-0110
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

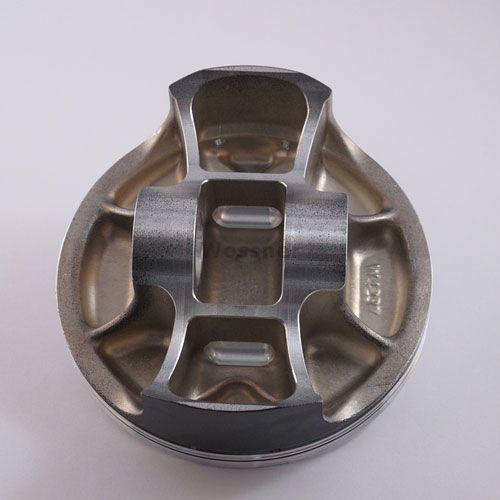

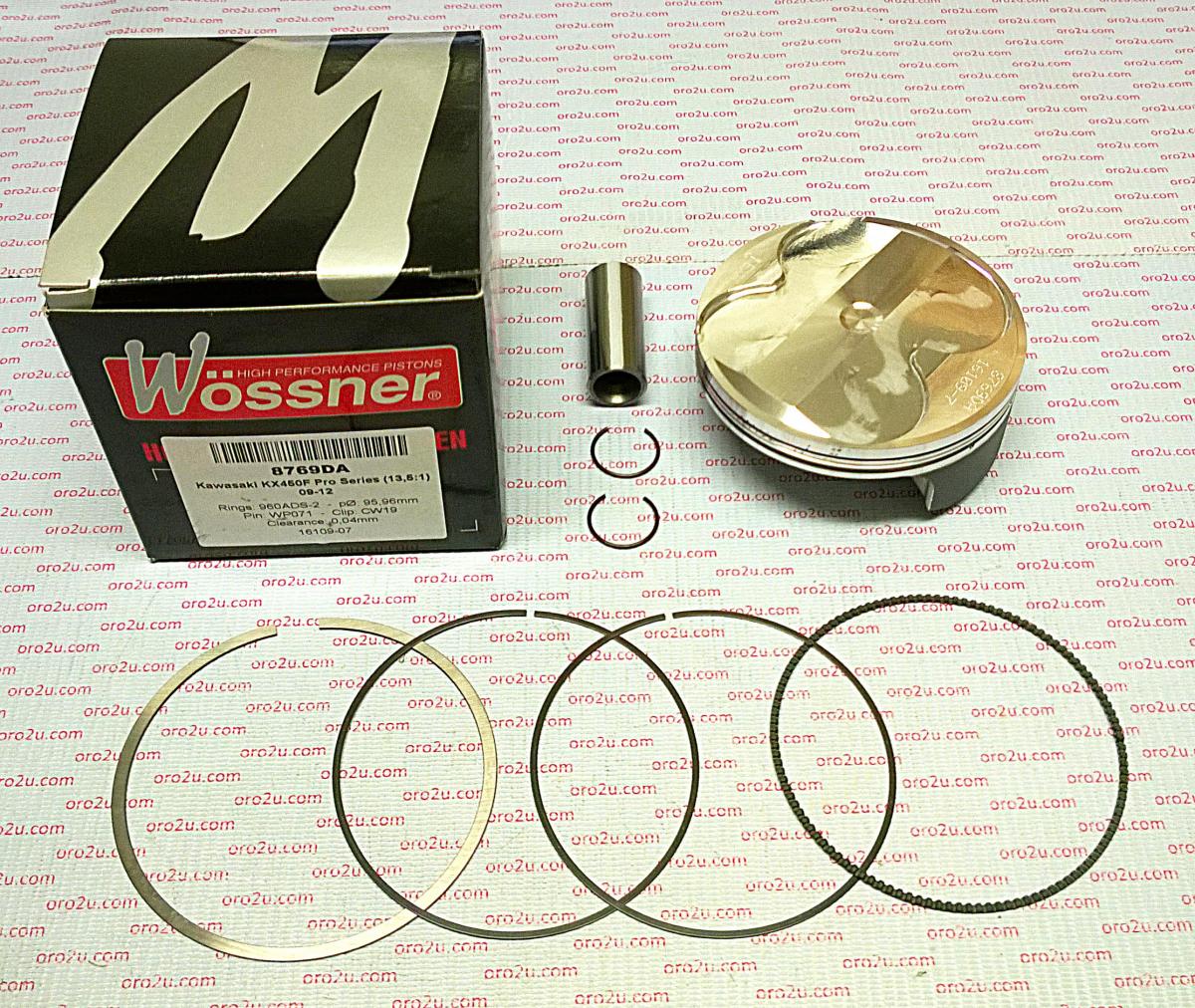

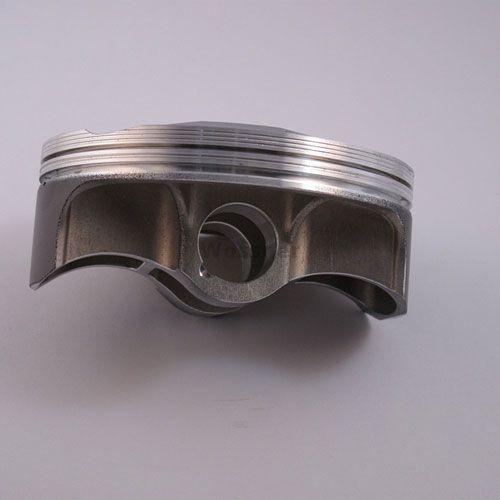

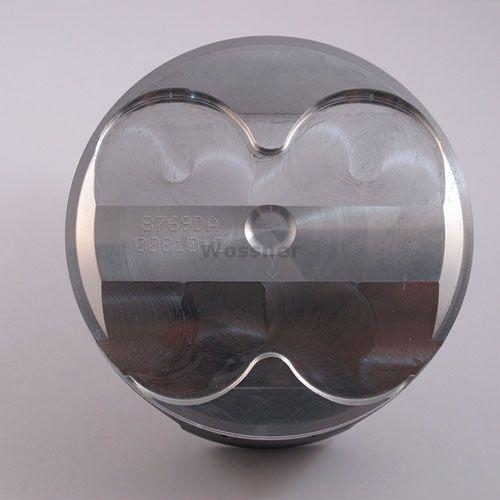

Wossner 8769DA forged high-compression piston kit with a 96mm bore. Features superior strength and heat transfer efficiency for optimal combustion. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Specifications include a 13.5:1 compression ratio, 449 cm³ displacement, 62.10mm stroke, 0.04mm clearance, and 23.70mm compression height. Dome volume is +4.20 cm³. Replaces OEM part numbers 13001-0110 and 4990M09600. Lock part number CW19, pin part number WP071, ring set part number 960ADS-2, rod part number P4020.
- SKU
- 56-W309.A.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 255369
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit - 96mm Bore
Enhance the performance of your motorcycle with this Wossner forged high-compression piston kit. Engineered for superior strength and efficiency, this piston is designed to optimize combustion and deliver increased power output.
Key Features:
- High-Compression Forged Piston: Delivers increased performance for a more powerful ride.
- Optimized Heat Transfer: Promotes enhanced durability by efficiently managing heat.
- Elliptical Design: Ensures a uniform bearing surface, even under extreme heat expansion, for consistent performance.
- Even Thrust Load Distribution: Prevents piston collapse by spreading pressure evenly, contributing to longevity.
- German Manufacturing: Precision engineered and manufactured in Germany for exceptional quality.
Specifications:
- Bore Size: 96mm (precise measurement 95.96mm)
- Compression Ratio: 13.5:1
- Kit Part Number: 8769DA
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4020
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- OEM Compression Ratio: 12.5:1
- Dome Volume: +4.20 cm³
- Compression Height: 23.70mm
Cross-Reference OEM Part Numbers:
- 13001-0110
- 4990M09600
