PISTON KIT 09-12 KX450F 96mm, WOSSNER 8738DC KAWASAKI
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

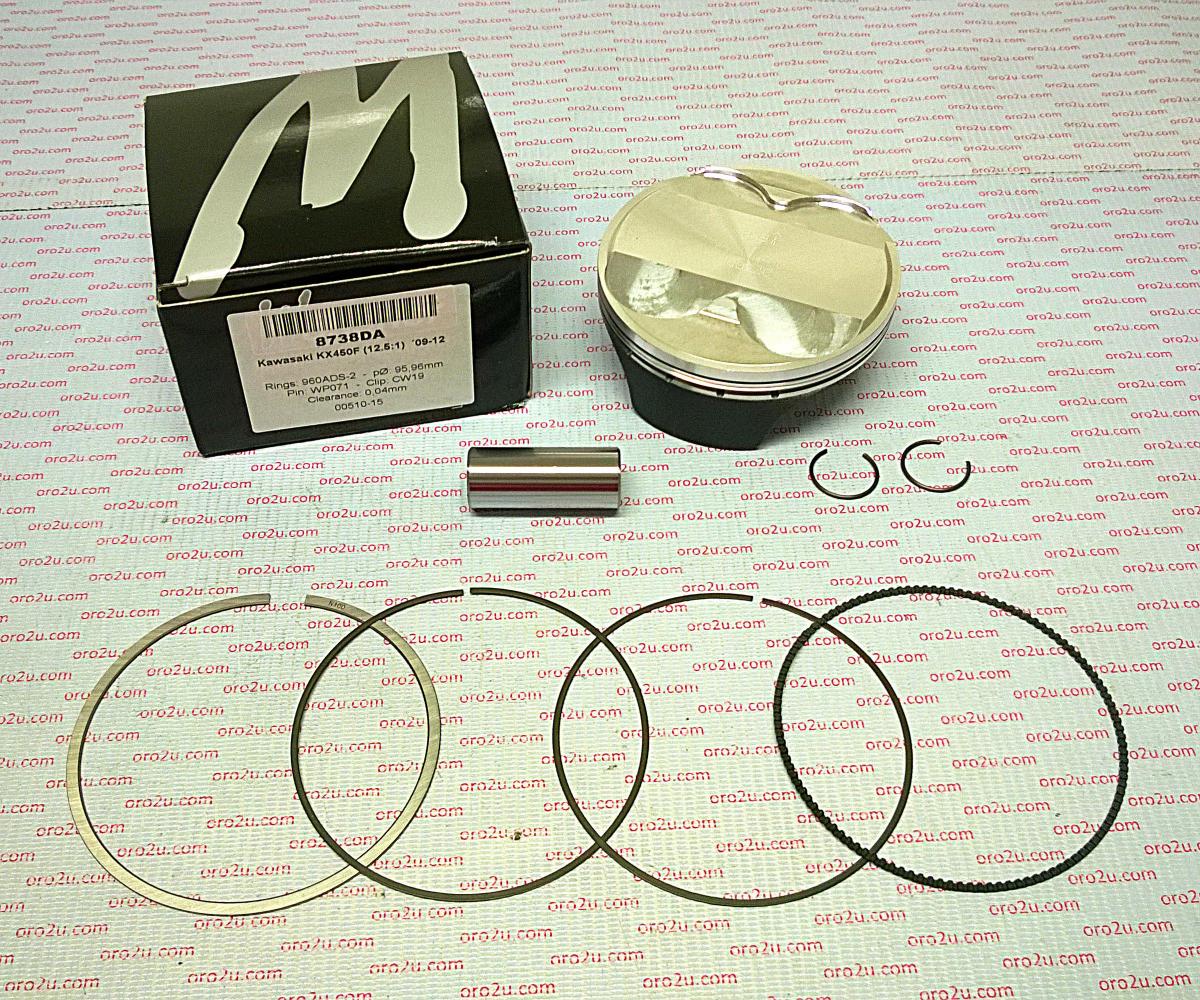

Wossner forged piston kit for Kawasaki KX450F 2009-2012. Features a 96.02 mm bore and OEM compression ratio. The piston is engineered for superior strength and heat transfer, with an elliptical design for uniform bearing surface and even thrust load distribution. Includes lock pin, pin, ring set, and rod. Made in Germany. Specifications: 449 cm3 displacement, 62.10 mm stroke, 0.04 mm clearance, 12.50:1 OEM compression ratio, +1.00 cm3 dome volume, 23.70 mm compression height. Weight: 384 grams. Part number: 8738DC.
- SKU
- 56-W4980.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (37)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KLX 450 | 2008 |
| KAWASAKI | KLX 450 | 2009 |
| KAWASAKI | KLX 450 | 2010 |
| KAWASAKI | KLX 450 | 2011 |
| KAWASAKI | KLX 450 | 2012 |
| KAWASAKI | KLX 450 | 2013 |
| KAWASAKI | KLX 450 | 2014 |
| KAWASAKI | KLX 450 | 2015 |
| KAWASAKI | KLX 450 | 2016 |
| KAWASAKI | KLX 450 | 2017 |
| KAWASAKI | KLX 450 | 2018 |
| KAWASAKI | KLX 450 | 2019 |
| KAWASAKI | KLX F 450 | 2008 |
| KAWASAKI | KLX F 450 | 2009 |
| KAWASAKI | KLX F 450 | 2010 |
| KAWASAKI | KLX F 450 | 2011 |
| KAWASAKI | KLX F 450 | 2012 |
| KAWASAKI | KLX F 450 | 2013 |
| KAWASAKI | KLX F 450 | 2014 |
| KAWASAKI | KLX F 450 | 2015 |
| KAWASAKI | KLX F 450 | 2016 |
| KAWASAKI | KLX F 450 | 2017 |
| KAWASAKI | KLX F 450 | 2018 |
| KAWASAKI | KLX F 450 | 2019 |
| KAWASAKI | KX 450F | 2006 |
| KAWASAKI | KX 450F | 2007 |
| KAWASAKI | KX 450F | 2008 |
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
| KAWASAKI | KX 450F | 2015 |
| KAWASAKI | KX 450F | 2016 |
| KAWASAKI | KX 450F | 2017 |
| KAWASAKI | KX 450F | 2018 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 256546
FULL DESCRIPTION

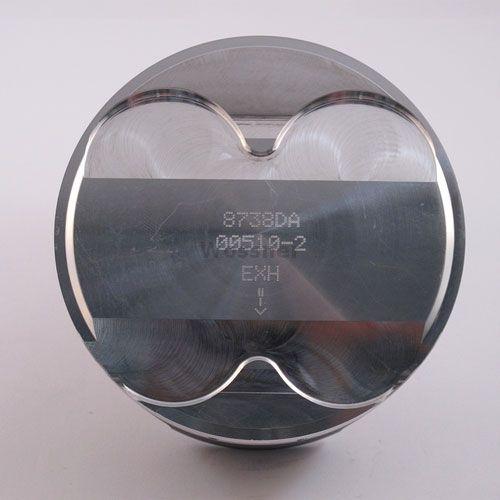

Wossner Forged Piston Kit - 96mm Bore
Upgrade your engine's performance and durability with this Wossner Forged Piston Kit. Engineered in Germany, Wossner pistons are renowned for their superior strength and advanced design, offering an optimal path for combustion chamber heat transfer to the cylinder walls.

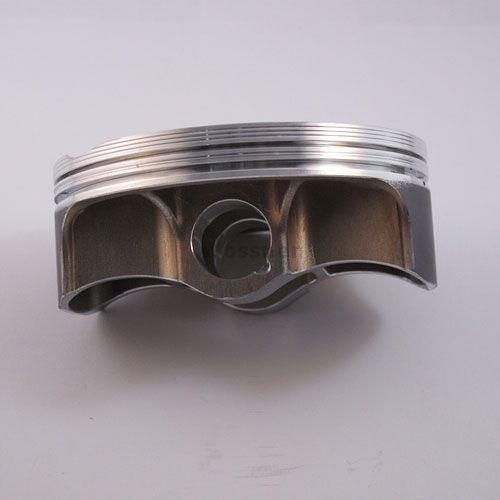

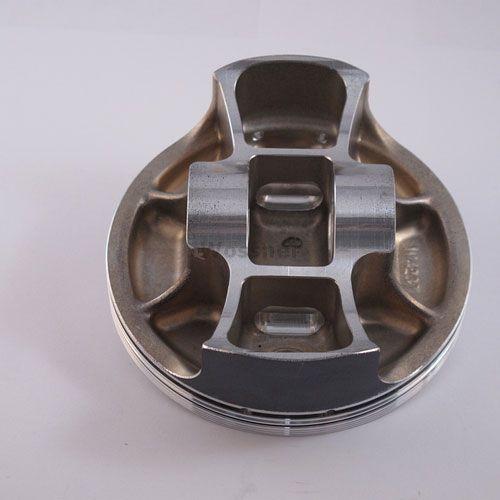

The elliptical design ensures a more uniform bearing surface as the piston heats and expands, eliminating localized pressure and distributing thrust loads evenly. This intelligent design prevents piston collapse and promotes longer engine life.
Key Features:
- Piston Part Number: 8738DC
- Precision Bore Size: 96.01mm
- Wossner Clearance: 0.04mm
- OEM Compression Ratio: 12.50:1
- Wossner Compression Ratio: OEM
- Dome Volume: +1.00 cm3
- Compression Height: 23.70mm
- Included Lock Piston Pin: CW19
- Included Pin: WP071
- Included Ring Set: 960ADS-2
- Included Connecting Rod Part Number: P4020
- Theoretical Engine Displacement: 449 cm3
- Hub Stroke: 62.10mm
- Material: Forged
