PISTON KIT 08-12 RMZ450 96 HC, FORGED WOSSNER 8717DA, 12111-28H10-0F0
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged high-compression piston kit with a 96mm bore (95.96mm) for Suzuki RM-Z450 (2008-2011). This kit features a two-ring design for reduced friction and improved efficiency. It is designed for superior strength and heat transfer efficiency, ensuring optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features: * High-compression forged piston for increased performance * Two-ring design for reduced friction and improved efficiency * Optimized heat transfer for enhanced durability * Elliptical design ensures uniform bearing surface under heat expansion * Even thrust load distribution to prevent piston collapse * Manufactured in Germany Specifications: * Bore Size: 96mm (95.96mm) * Compression Ratio: 13.5:1 * Part Number: 8717DA * Lock Part Number: CW19 * Pin Part Number: WP071 * Ring Set Part Number: 960ADS-2 * Rod Part Number: P4013 * Displacement: 449 cm³ * Stroke: 62.10mm * Clearance: 0.04mm * Wossner Compression Ratio: 13.2:1 * OEM Compression Ratio: 12.2:1 * Dome Volume: +3.40 cm³ * Compression Height: 23.10mm Cross-Reference OEM Part Numbers: * 12111-28H10-0F0
- SKU
- 56-W307.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (15)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2008 |
| SUZUKI | RM-Z 450 | 2009 |
| SUZUKI | RM-Z 450 | 2010 |
| SUZUKI | RM-Z 450 | 2011 |
| SUZUKI | RM-Z 450 | 2012 |
| SUZUKI | RMX Z 450 | 2010 |
| SUZUKI | RMX Z 450 | 2011 |
| SUZUKI | RMX Z 450 | 2012 |
| SUZUKI | RMX Z 450 | 2013 |
| SUZUKI | RMX Z 450 | 2014 |
| SUZUKI | RMX Z 450 | 2015 |
| SUZUKI | RMX Z 450 | 2016 |
| SUZUKI | RMX Z 450 | 2017 |
| SUZUKI | RMX Z 450 | 2018 |
| SUZUKI | RMX Z 450 | 2019 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 255357
FULL DESCRIPTION

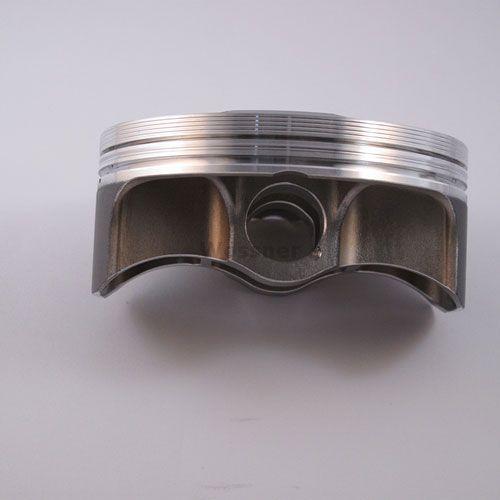

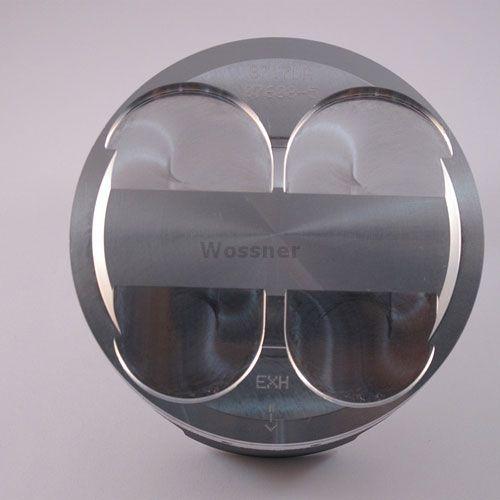

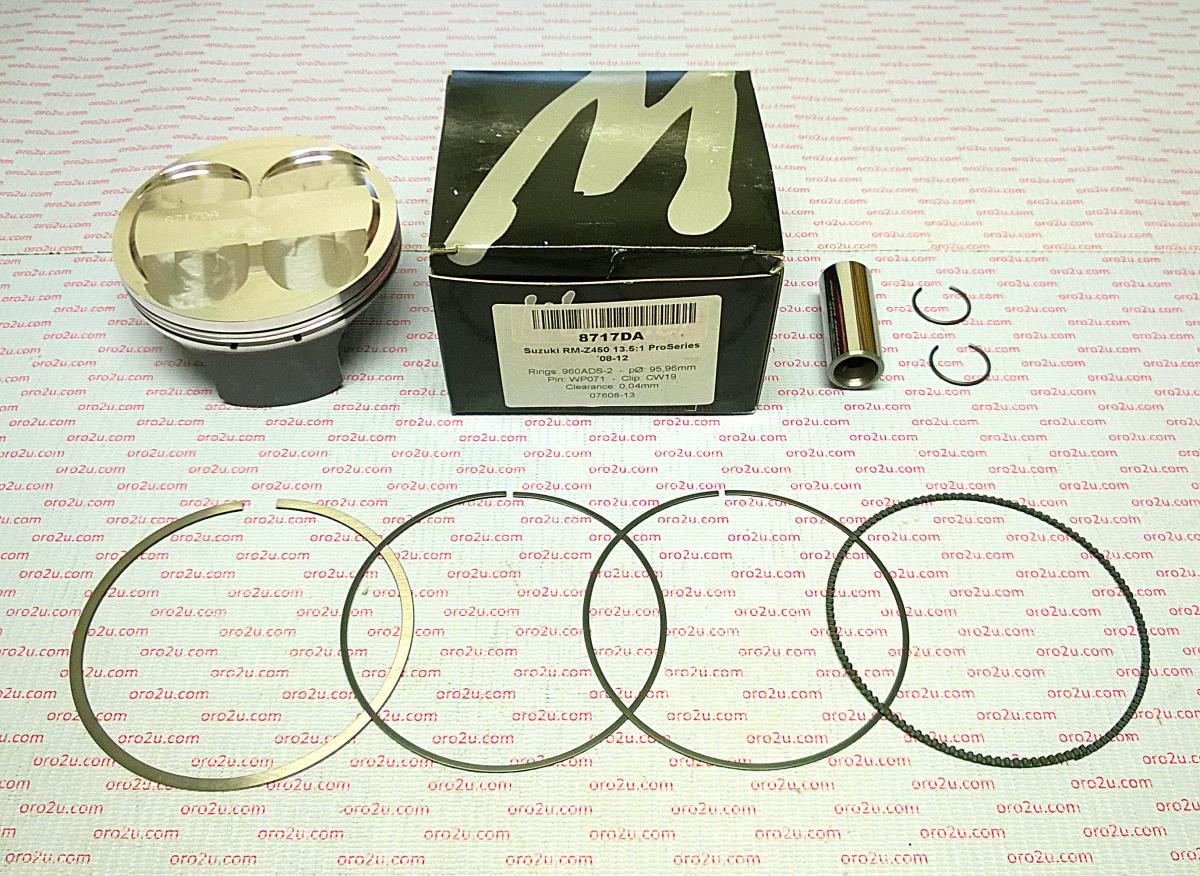

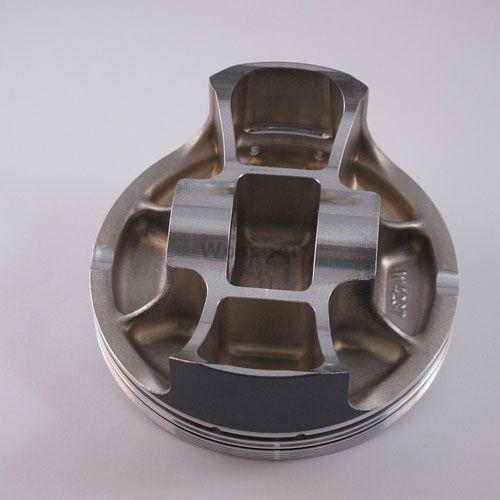

Wossner Forged High-Compression Piston Kit
Upgrade your motorcycle's performance with this Wossner forged high-compression piston kit. Engineered for superior strength and efficient heat transfer, this piston delivers optimal combustion performance. Its advanced elliptical design promotes even thrust load distribution, reducing localized pressure and preventing piston collapse under demanding conditions. Manufactured in Germany to exacting standards.
Key Features:
- High-compression forged piston for enhanced engine power
- Two-ring design minimizes friction and improves operational efficiency
- Optimized heat transfer capabilities contribute to increased durability
- Elliptical piston shape provides a uniform bearing surface even with heat expansion
- Promotes even thrust load distribution to guard against piston collapse
- Precision manufactured in Germany
Specifications:
- Bore Size: 96mm (95.96mm)
- Compression Ratio: 13.5:1
- Part Number: 8717DA
- Lock Part Number: CW19
- Pin Part Number: WP071
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4013
- Displacement: 449 cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.2:1
- OEM Compression Ratio: 12.2:1
- Dome Volume: +3.40 cm³
- Compression Height: 23.10mm
Cross-Reference OEM Part Number: 12111-28H10-0F0
