2Bros Parts

PISTON KIT 07-12 SX-F450 97.00, FORGED 8665DB WOSSNER KTM

£191.87Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

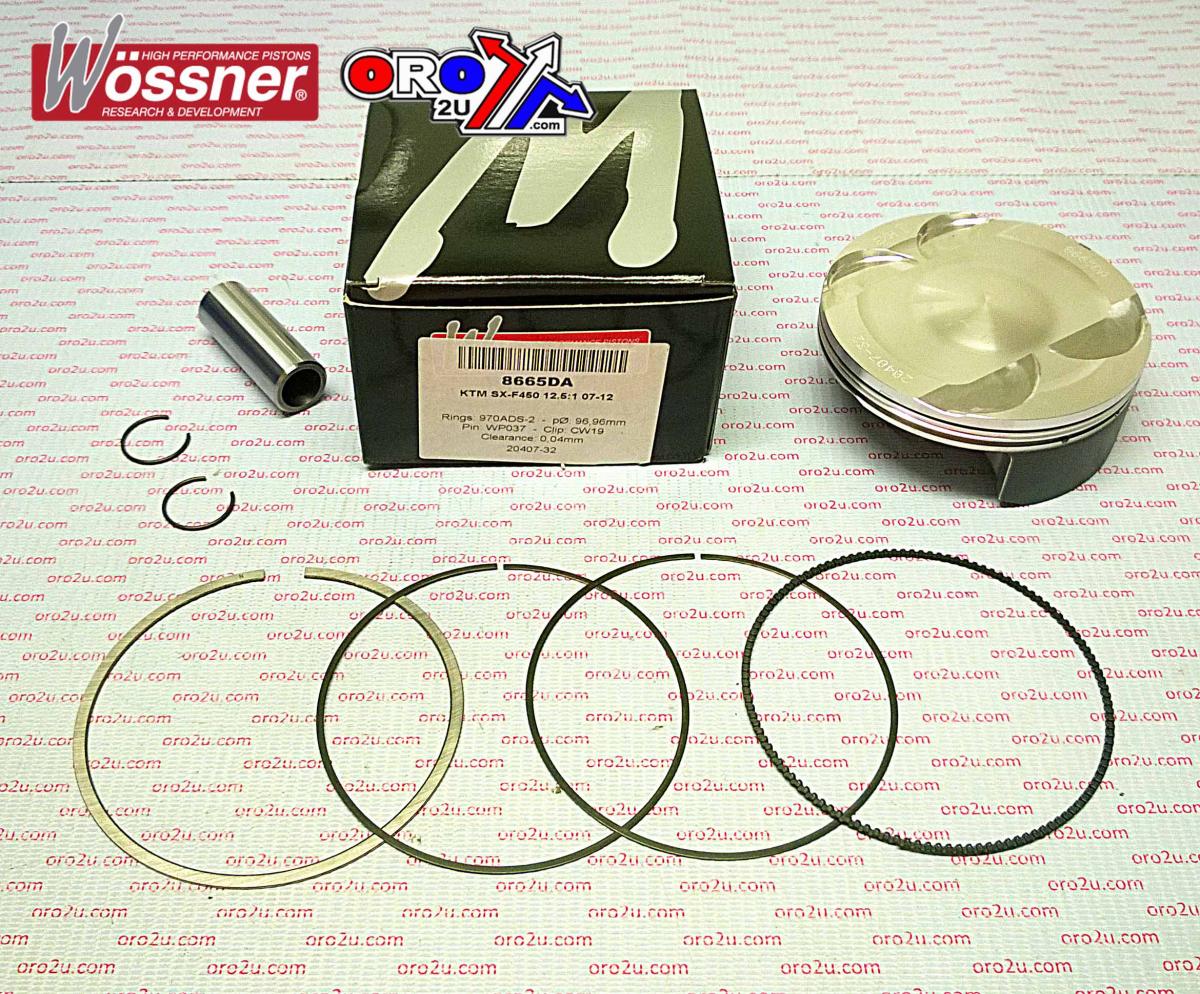

Wossner 97.00mm forged piston kit for KTM SX-F 450 models 2007-2012. Features superior strength, durability, optimized heat transfer for efficient combustion, and an elliptical design to distribute thrust loads evenly, preventing piston collapse. Manufactured in Germany to high-quality standards. Specifications include a bore size of 97.00mm (96.97mm), oversize of +0.01mm, displacement of 449cc, stroke of 60.80mm, clearance of 0.04mm, compression ratio of OEM (12.50:1), dome volume of -2.60cm³, compression height of 21.30mm, and lock part number CW19, pin part number WP037, ring set part number 970ADS-2, gasket part number D4019, and rod part number P4017.

Specifications
SKU
56-W107.B.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (25)

MakeModelYear
KTM450 SM R2008
KTM450 SM R2009
KTM450 SM R2010
KTM450 SM R2011
KTM450 SM R2012
KTM450 SMR2008
KTM450 SMR2009
KTM450 SMR2010
KTM450 SMR2011
KTM450 SMR2012
KTM450 SX2009
KTM450 SX2010
KTM450 SX2011
KTM450 SX ATV2009
KTM450 SX ATV2010
KTM450 SX-F2007
KTM450 SX-F2008
KTM450 SX-F2009
KTM450 SX-F2010
KTM450 SX-F2011
KTM450 SX-F2012
KTM450 XC-F2007
KTM450 XC-F2008
KTM450 XC-F2009
KTM450 XC-F2010
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
97mm
Variant Id
254538
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit - Precision Engineered for KTM SX-F 450

This Wossner forged piston kit is meticulously engineered for superior strength and performance in KTM SX-F 450 motorcycles. Designed with precision, this piston ensures efficient heat transfer to the cylinder walls, promoting uniform expansion and reducing localized pressure for optimal engine operation. Its advanced elliptical design effectively distributes thrust loads, preventing piston collapse and ensuring long-lasting durability. Manufactured in Germany to the highest quality standards, this kit guarantees reliable performance for demanding riders.

Key Features:

  • Wossner Forged Piston: Provides exceptional strength and durability for high-performance applications.
  • Optimized Heat Transfer: Enhances combustion efficiency by ensuring uniform heat distribution to the cylinder walls.
  • Elliptical Design: Creates a uniform bearing surface, reducing localized pressure and wear.
  • Prevents Piston Collapse: Precision engineering ensures structural integrity under demanding operating conditions.
  • Made in Germany: Guarantees high-quality manufacturing and exceptional craftsmanship.

Specifications:

  • Bore Size: 97.00mm (96.97mm)
  • Oversize: +0.01mm
  • Displacement: 449cc
  • Stroke: 60.80mm
  • Clearance: 0.04mm
  • Compression Ratio: OEM (12.50:1)
  • Dome Volume: -2.60cm³
  • Compression Height: 21.30mm
  • Lock Part Number: CW19
  • Pin Part Number: WP037
  • Ring Set Part Number: 970ADS-2
  • Gasket Part Number: D4019
  • Rod Part Number: P4017
