2Bros Parts

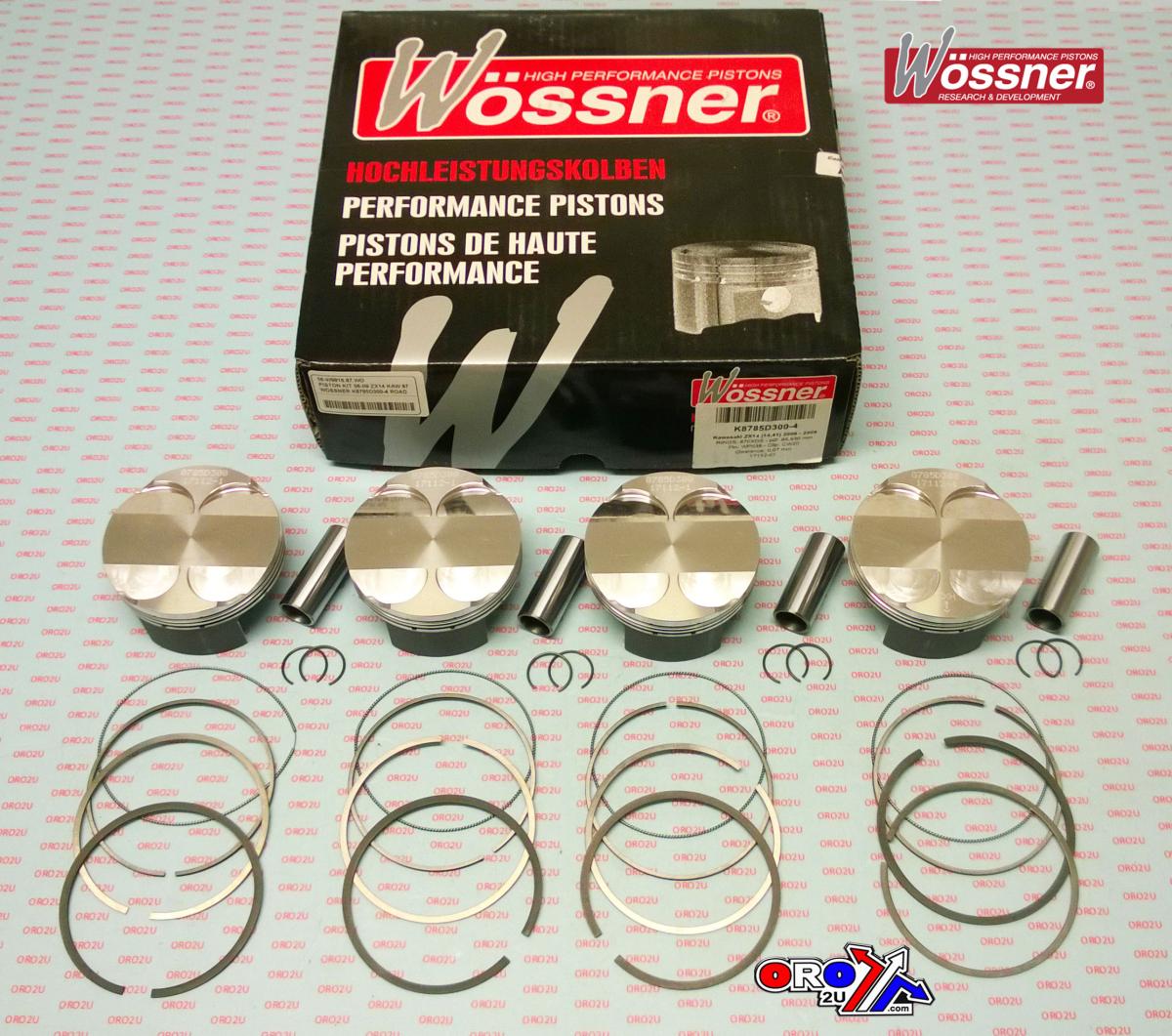

PISTON KIT 06-09 ZX14 T KAW, WOSSNER K8780D300-4 ROAD, KAWASAKI

£671.52Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner K8780D300-4 piston kit. Features an 86mm bore, 85.93mm actual bore size, and is a (+3mm) oversized piston. Wossner forged pistons offer superior strength and design, engineered for optimal combustion chamber heat transfer. The elliptical design ensures uniform bearing surface under heat expansion, preventing piston collapse and distributing thrust loads evenly. Includes a hard Teflon skirt coating for perfect fit and conformability to the cylinder bore. Technical specifications: Display (cm3) 1352, Hub stroke (mm) 61.00, Clearance (mm) 0.07, Wossner compression Ratio 9.00:1, OEM Compression ratio 12.00:1, Dome volume (cm3) -18.00, Compression height (mm) 24.50. Part number 56-W9816.87.WOT.

Specifications
SKU
56-W9816.87.WOT
Brand
Wossner
Availability
In Stock (1)

Fitments (4)

MakeModelYear
KAWASAKIZX -142006
KAWASAKIZX -142007
KAWASAKIZX -142008
KAWASAKIZX -142009
General Product Group
Engine
General Product Type
Pistons & Kits
Variant Id
258808
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner 86mm Piston Kit for Kawasaki ZX14 (06-09)

Upgrade your engine with this high-performance Wossner forged piston kit, engineered for superior strength and efficiency. Designed specifically for the Kawasaki ZX14 models from 2006 to 2009, this kit features a precise 86mm bore and a 3mm oversized specification.

Key Features:

  • Forged Strength: Wossner forged pistons are renowned for their exceptional durability and advanced design, providing a robust solution for high-performance engines.
  • Optimized Heat Transfer: Engineered to efficiently transfer combustion chamber heat to the cylinder walls, ensuring optimal engine operating temperatures.
  • Elliptical Design: The elliptical piston shape ensures a uniform bearing surface even under extreme heat expansion. This design eliminates localized pressure and distributes thrust loads evenly, preventing piston collapse and promoting longevity.
  • Durable Skirt Coating: Features a hard Teflon skirt coating for a perfect fit and superior conformability to your cylinder bore, reducing friction and wear.
  • Performance Compression Ratio: Achieve a 9.00:1 compression ratio with this kit, a significant increase from the OEM 12.00:1 ratio, enhancing power output.
  • Precision Dimensions: Includes a dome volume of -18.00 cm3 and a compression height of 24.50 mm for accurate engine assembly.

Specifications:

  • Bore Size: 86mm
  • Oversize: +3mm
  • Theoretical Engine Displacement (cm3): 1352
  • Hub Stroke (mm): 61.00
  • Clearance (mm): 0.07
  • Wossner Compression Ratio: 9.00:1
  • OEM Compression Ratio: 12.00:1
  • Dome Volume (cm3): -18.00
  • Compression Height (mm): 24.50
  • Weight (Grams): 1702
