PISTON KIT 06-09 YZF WR450F 95, FORGED WOSSNER 8630DB
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

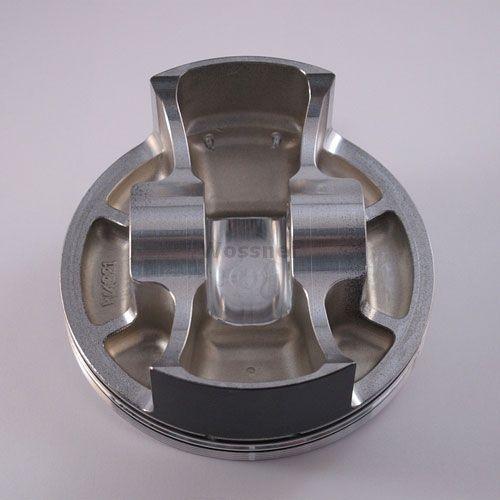

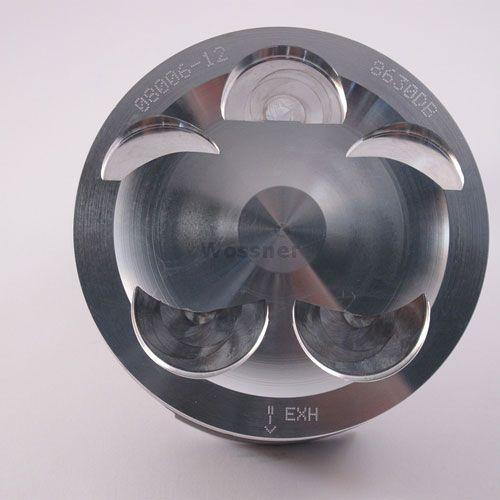

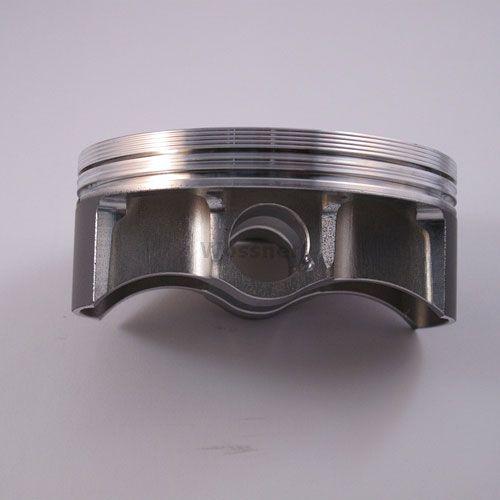

Wossner forged piston kit with a bore size of 95.01mm and actual bore diameter of 94.97mm. This piston features an elliptical design for uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Engineered for superior strength and optimal heat transfer, it offers efficient combustion chamber performance. Specifications include a displacement of 449 cm³, stroke of 63.40mm, and a clearance of 0.04mm. The compression ratio is OEM at 12.30:1 with a dome volume of -9.70 cm³ and a compression height of 23.50mm. Includes lock part number CW18, pin part number WP053, ring set part number 950ADS-2, and rod part number P4008. Manufactured in Germany.
- SKU
- 56-W222.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (46)
| Make | Model | Year |
|---|---|---|
| GAS-GAS | EC F 450 | 2013 |
| GAS-GAS | EC F 450 | 2014 |
| GAS-GAS | EC F 450 | 2015 |
| GASGAS | EC 450F | 2013 |
| GASGAS | EC 450F | 2014 |
| GASGAS | EC 450F | 2015 |
| YAMAHA | WR 450F | 2003 |
| YAMAHA | WR 450F | 2004 |
| YAMAHA | WR 450F | 2005 |
| YAMAHA | WR 450F | 2006 |
| YAMAHA | WR 450F | 2007 |
| YAMAHA | WR 450F | 2008 |
| YAMAHA | WR 450F | 2009 |
| YAMAHA | WR 450F | 2010 |
| YAMAHA | WR 450F | 2011 |
| YAMAHA | WR 450F | 2012 |
| YAMAHA | WR 450F | 2013 |
| YAMAHA | WR 450F | 2014 |
| YAMAHA | WR 450F | 2015 |
| YAMAHA | WRF 450 | 2003 |
| YAMAHA | WRF 450 | 2004 |
| YAMAHA | WRF 450 | 2005 |
| YAMAHA | WRF 450 | 2006 |
| YAMAHA | WRF 450 | 2007 |
| YAMAHA | WRF 450 | 2008 |
| YAMAHA | WRF 450 | 2009 |
| YAMAHA | WRF 450 | 2010 |
| YAMAHA | WRF 450 | 2011 |
| YAMAHA | WRF 450 | 2012 |
| YAMAHA | WRF 450 | 2013 |
| YAMAHA | WRF 450 | 2014 |
| YAMAHA | WRF 450 | 2015 |
| YAMAHA | YZ 450F | 2003 |
| YAMAHA | YZ 450F | 2004 |
| YAMAHA | YZ 450F | 2005 |
| YAMAHA | YZ 450F | 2006 |
| YAMAHA | YZ 450F | 2007 |
| YAMAHA | YZ 450F | 2008 |
| YAMAHA | YZ 450F | 2009 |
| YAMAHA | YZF 450 | 2003 |
| YAMAHA | YZF 450 | 2004 |
| YAMAHA | YZF 450 | 2005 |
| YAMAHA | YZF 450 | 2006 |
| YAMAHA | YZF 450 | 2007 |
| YAMAHA | YZF 450 | 2008 |
| YAMAHA | YZF 450 | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95mm
- Variant Id
- 255080
FULL DESCRIPTION
Wossner Forged Piston Kit 8630DB
Upgrade your motorcycle's performance with this high-quality Wossner forged piston kit. Engineered for exceptional strength and durability, this piston is designed to withstand the demands of high-performance riding.
Key Features:
- Forged Construction: Provides superior strength and resilience compared to cast pistons, ensuring longevity under stress.
- Optimized Heat Transfer: Promotes efficient combustion by facilitating optimal heat management within the combustion chamber.
- Elliptical Design: This innovative design ensures a uniform bearing surface even under heat expansion. It effectively reduces localized pressure points, preventing piston collapse and maintaining optimal performance.
- German Engineering: Manufactured in Germany, guaranteeing precision and quality craftsmanship.
Specifications:
- Bore Size: 95.01mm
- Actual Bore Diameter: 94.97mm
- Displacement: 449 cm³
- Stroke: 63.40mm
- Clearance: 0.04mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 12.30:1
- Dome Volume: -9.70 cm³
- Compression Height: 23.50mm
- Lock Part Number: CW18
- Pin Part Number: WP053
- Ring Set Part Number: 950ADS-2
- Rod Part Number: P4008
