PISTON KIT 06-09 KXF250 77.00, FORGED WOSSNER 8635DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit 8635DB with a 77.00mm bore size. This piston kit is engineered for superior strength and optimal heat transfer, featuring an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Specifications include bore size 77.01mm, actual bore diameter 76.97mm, displacement 250 cm³, stroke 53.60mm, clearance 0.04mm, Wossner compression ratio 13.50:1, OEM compression ratio 13.20:1, dome volume -3.40 cm³, compression height 19.60mm, lock part number CW16, pin part number WP059, ring set part number 770XAS-2, and rod part number P4002.
- SKU
- 56-W210+00B.WO
- Brand
- Wossner
- Availability
- In Stock (2)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77mm
- Variant Id
- 255009
FULL DESCRIPTION

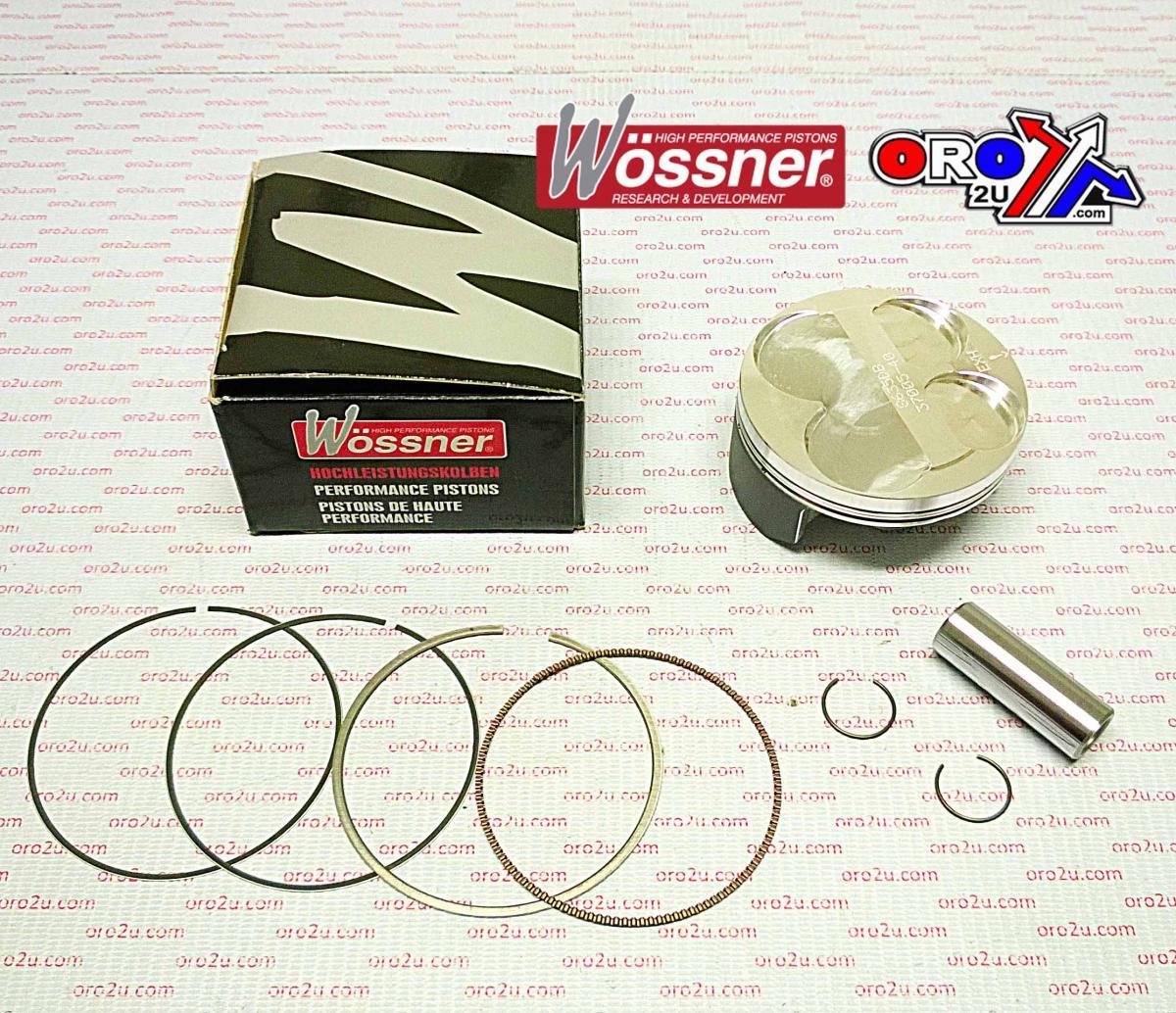

Wossner Forged Piston Kit - 77.00mm Bore
This Wossner forged piston kit is engineered for superior strength and optimal performance in demanding engine applications. The advanced forged construction provides enhanced durability compared to cast pistons, ensuring longevity under high stress. Each piston features an innovative elliptical design, meticulously crafted to maintain a uniform bearing surface even under extreme heat expansion. This unique geometry effectively distributes thrust loads, preventing localized pressure build-up and significantly reducing the risk of piston collapse for reliable engine operation.
Key Features:
- Forged piston construction for maximum strength and durability.
- Elliptical design ensures uniform bearing surface and reduces localized pressure.
- Optimized heat transfer for efficient combustion and consistent engine performance.
- Precision manufactured in Germany for exceptional quality.
Specifications:
- Bore Size: 77.01mm
- Actual Bore Diameter: 76.97mm
- Displacement: 250 cm³
- Stroke: 53.60mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 13.20:1
- Dome Volume: -3.40 cm³
- Compression Height: 19.60mm
- Lock Part Number: CW16
- Pin Part Number: WP059
- Ring Set Part Number: 770XAS-2
- Rod Part Number: P4002
