PISTON KIT 05 GASGAS 450 95.00, FORGED WOSSNER 8615DB

£203.33Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

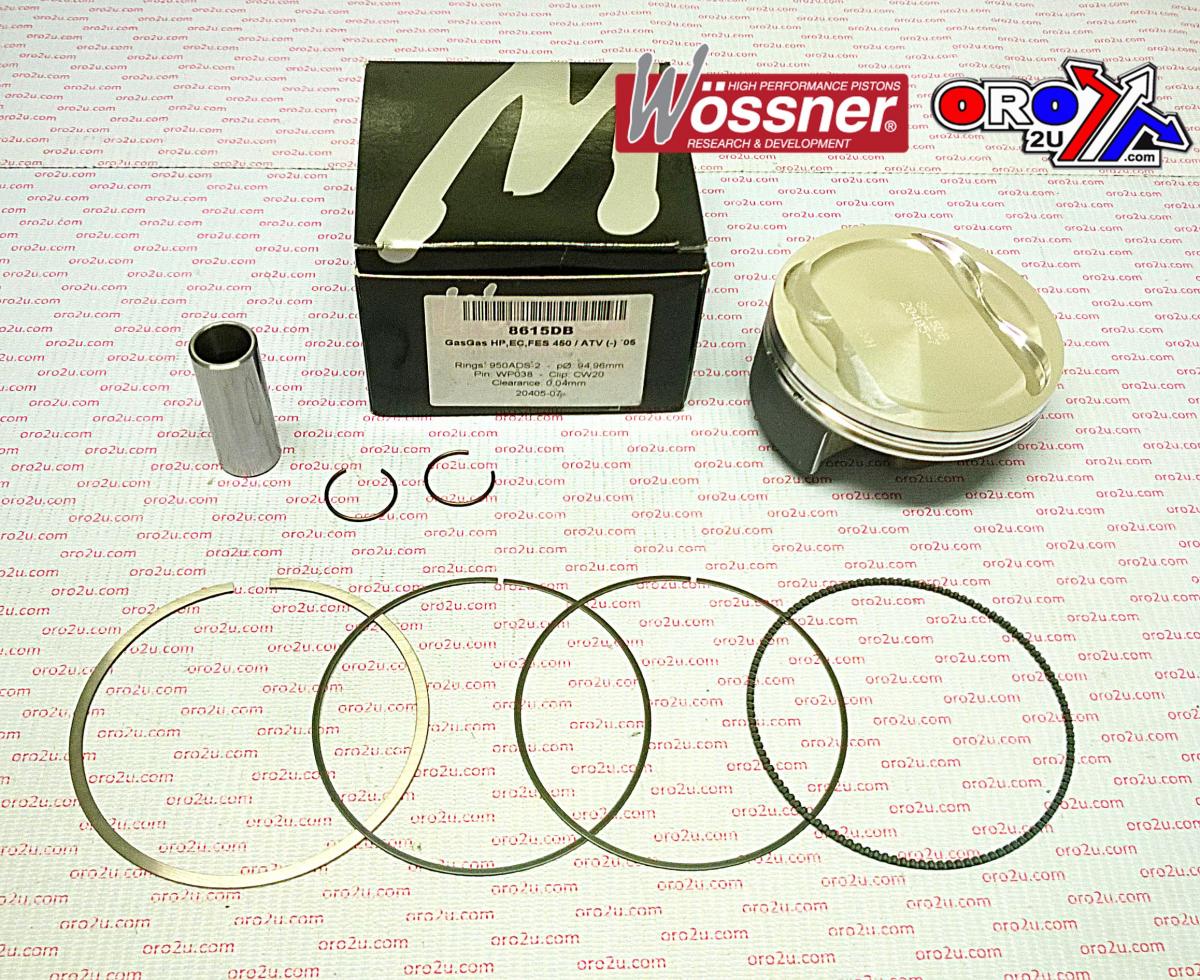

Wossner forged piston kit. Bore size 95.01mm. Actual bore diameter 94.96mm. Displacement 443 cm³. Stroke 62.60mm. Clearance 0.05mm. Wossner compression ratio OEM. Dome volume -6.20 cm³. Compression height 25.50mm. Lock part number CW20. Pin part number WP038. Ring set part number 950ADS-2. Features forged piston for increased strength and durability, optimized heat transfer for efficient combustion chamber performance, elliptical design for even thrust load distribution and reduced piston collapse. Manufactured in Germany.

Specifications
SKU
56-W220.B.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (7)

MakeModelYear
GAS-GAS450 HP2005
GAS-GASEC 4502005
GAS-GASEC F 4502005
GAS-GASFSE 4502005
GAS-GASHP 4502005
GAS-GASSMR 4502005
GAS-GASSMR 4502006
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
95mm
Variant Id
255072
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

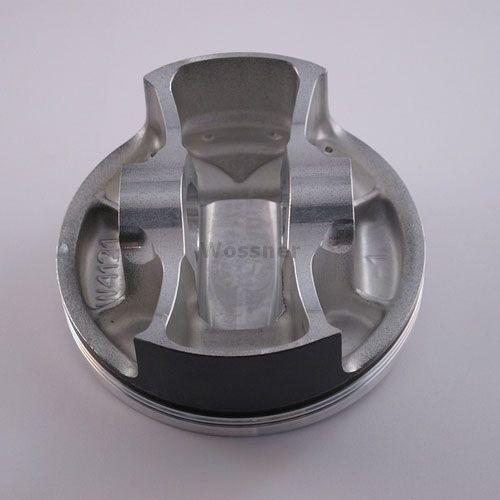

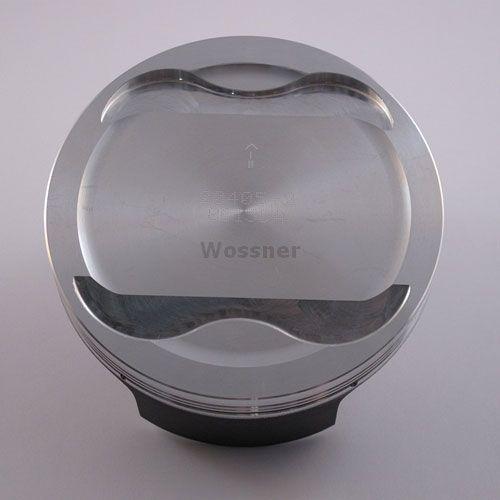

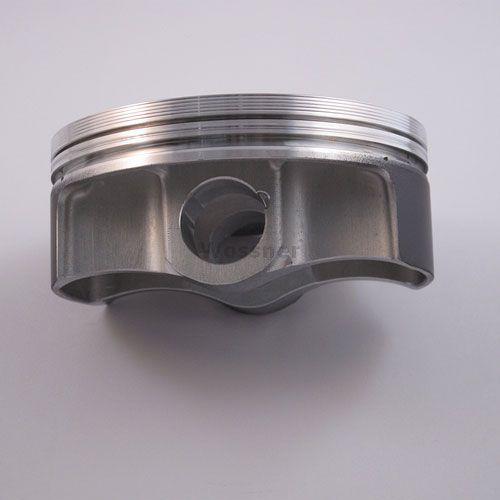

Wossner Forged Piston Kit - Engineered for Performance

Upgrade your motorcycle's engine with this high-quality Wossner forged piston kit. Specifically designed for enhanced strength and optimal heat transfer, this piston ensures superior performance and longevity. Manufactured in Germany, Wossner pistons are built to withstand demanding conditions.

The unique elliptical design of these pistons is engineered to provide a uniform bearing surface even under extreme heat expansion. This intelligent design minimizes localized pressure points, effectively preventing piston collapse and ensuring consistent operation.

Key Features:

  • Forged Construction: Provides exceptional strength and durability over cast pistons.
  • Optimized Heat Transfer: Promotes efficient combustion and better engine cooling.
  • Elliptical Design: Ensures even distribution of thrust loads and prevents piston collapse under thermal stress.
  • Premium German Manufacturing: Guarantees precision engineering and high-quality standards.

Technical Specifications:

  • Bore Size: 95.01mm
  • Actual Bore Diameter: 94.96mm
  • Displacement: 443 cm³
  • Stroke: 62.60mm
  • Clearance: 0.05mm
  • Wossner Compression Ratio: OEM
  • Dome Volume: -6.20 cm³
  • Compression Height: 25.50mm
  • Lock Part Number: CW20
  • Pin Part Number: WP038
  • Ring Set Part Number: 950ADS-2
