PISTON KIT 05-09 TM 450 F 95mm, FORGED WOSSNER 8714DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit engineered for optimal heat transfer. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features forged construction for enhanced durability, optimized heat transfer for improved performance, and an elliptical design that prevents localized pressure and piston collapse. OEM compression ratio for direct replacement. Specifications: Bore 94.97 mm, Piston Size 95.01 mm, Displacement 125 cm³, Stroke 63.40 mm, Clearance 0.04 mm, Wossner Compression Ratio OEM, OEM Compression Ratio 11.90:1, Dome Volume -11.40 cm³, Compression Height 25.50 mm. Cross-Reference OEM Part Numbers: Lock CW19, Pin WP037, Ring Set 950ADS-2.
- SKU
- 56-W038.WO.B
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (20)
| Make | Model | Year |
|---|---|---|
| TM | CROSS F 450 | 2005 |
| TM | CROSS F 450 | 2006 |
| TM | CROSS F 450 | 2007 |
| TM | CROSS F 450 | 2008 |
| TM | EN F 450 | 2005 |
| TM | EN F 450 | 2006 |
| TM | EN F 450 | 2007 |
| TM | EN F 450 | 2008 |
| TM | ENDURO F 450 | 2005 |
| TM | ENDURO F 450 | 2006 |
| TM | ENDURO F 450 | 2007 |
| TM | ENDURO F 450 | 2008 |
| TM | MX F 450 | 2005 |
| TM | MX F 450 | 2006 |
| TM | MX F 450 | 2007 |
| TM | MX F 450 | 2008 |
| TM | TM F 450 | 2005 |
| TM | TM F 450 | 2006 |
| TM | TM F 450 | 2007 |
| TM | TM F 450 | 2008 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95mm
- Variant Id
- 254366
FULL DESCRIPTION

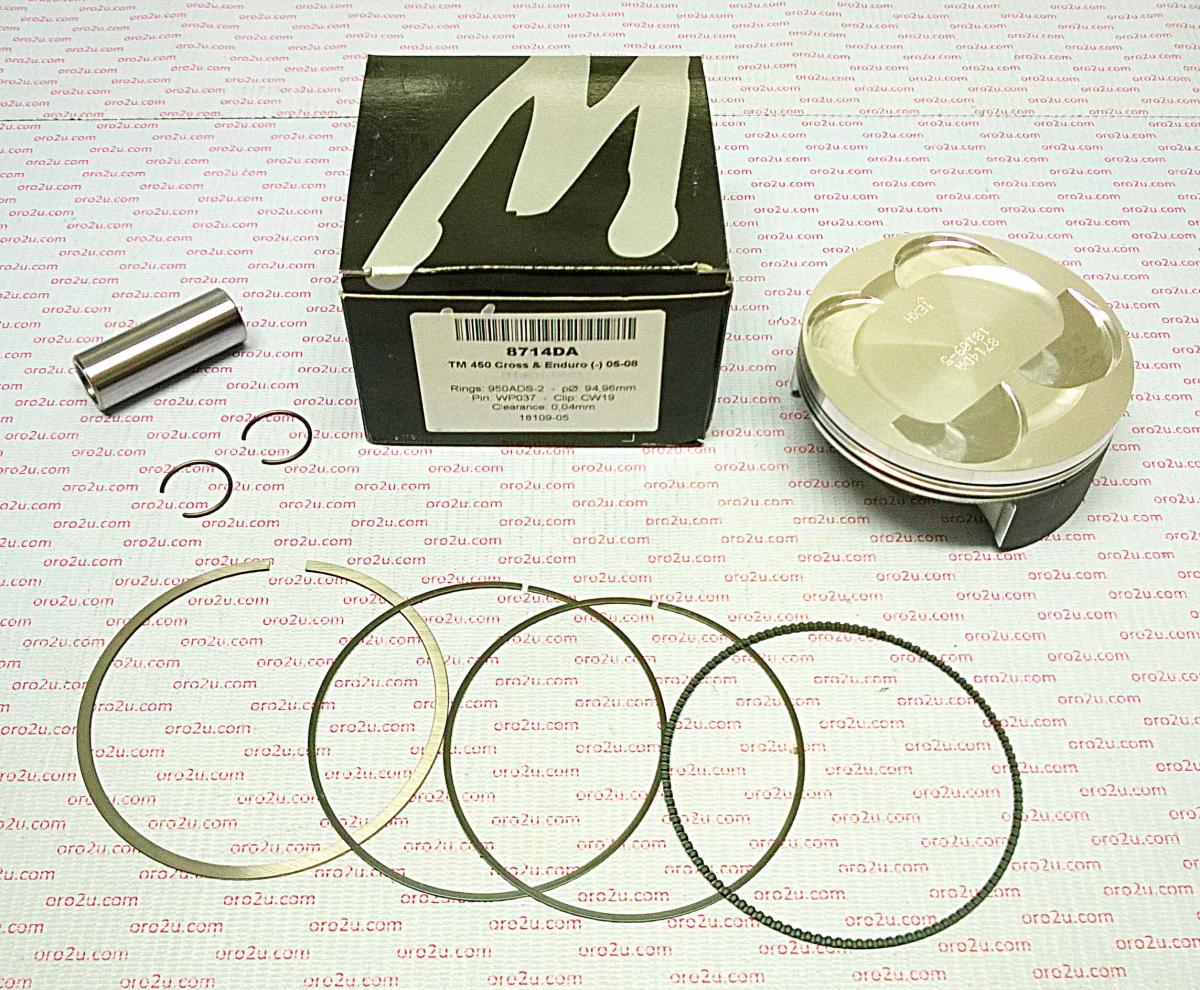

Wossner Forged Piston Kit
Experience enhanced strength and performance with this Wossner forged piston kit. Engineered for optimal heat transfer from the combustion chamber to cylinder walls, this piston features an elliptical design. This unique design ensures a uniform bearing surface even under heat expansion, effectively reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for superior quality and reliability.
Key Features:
- Forged construction for superior durability and strength.
- Optimized heat transfer for improved engine performance.
- Elliptical design prevents localized pressure and helps avoid piston collapse.
- Maintains OEM compression ratio for a direct replacement fit.
Specifications:
- Bore: 94.97 mm
- Piston Size: 95.01 mm
- Displacement: 125 cm³
- Stroke: 63.40 mm
- Clearance: 0.04 mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 11.90:1
- Dome Volume: -11.40 cm³
- Compression Height: 25.50 mm
Included Components:
- Lock: CW19
- Pin: WP037
- Ring Set: 950ADS-2
