PISTON KIT 05-08 KXF450 HC 96, FORGED WOSSNER 8670DA 13001-0073
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

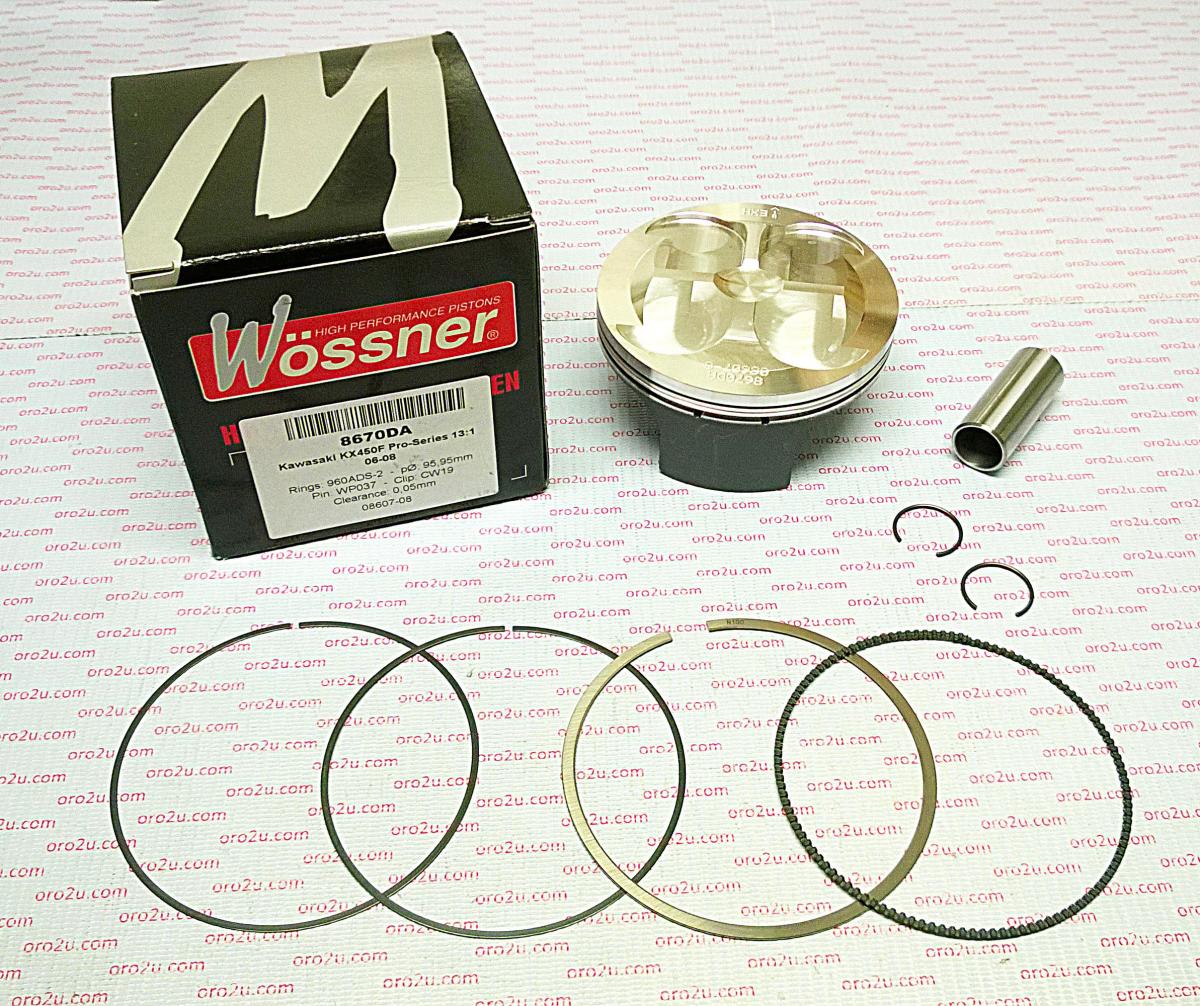

Wossner forged high-compression piston kit with a 96mm bore (95.95mm) and 13.0:1 compression ratio. Features optimized heat transfer, an elliptical design for uniform bearing surface under heat expansion, and even thrust load distribution to prevent piston collapse. Manufactured in Germany. Includes lock part number CW19, pin part number WP028, ring set part number 960ADS-2, rod part number P4010. Dome volume is +5.60 cm³. Compression height is 23.60mm. OEM compression ratio is 12.0:1. Cross-reference OEM part numbers 13001-0073 and 4901M09600.
- SKU
- 56-W303.A.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (16)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KLX 450R | 2008 |
| KAWASAKI | KLX 450R | 2009 |
| KAWASAKI | KLX 450R | 2010 |
| KAWASAKI | KLX 450R | 2011 |
| KAWASAKI | KLX 450R | 2012 |
| KAWASAKI | KLX 450R | 2013 |
| KAWASAKI | KLX 450R | 2014 |
| KAWASAKI | KLX 450R | 2015 |
| KAWASAKI | KLX 450R | 2016 |
| KAWASAKI | KLX 450R | 2017 |
| KAWASAKI | KLX 450R | 2018 |
| KAWASAKI | KLX 450R | 2019 |
| KAWASAKI | KLX 450R | 2020 |
| KAWASAKI | KX 450F | 2006 |
| KAWASAKI | KX 450F | 2007 |
| KAWASAKI | KX 450F | 2008 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 255344
FULL DESCRIPTION
Wossner Forged High-Compression Piston Kit
Upgrade your motorcycle's performance with this Wossner forged high-compression piston kit. Engineered for superior strength and optimized heat transfer, this piston kit ensures peak combustion efficiency and reliability.
Key Features:
- High-Compression Forged Piston: Delivers increased power and performance.
- Optimized Heat Transfer: Enhances operational efficiency and longevity.
- Elliptical Design: Promotes uniform bearing surface under heat expansion, reducing stress.
- Even Thrust Load Distribution: Prevents piston collapse for greater durability.
- Premium German Manufacturing: Ensures exceptional quality and precision.
Specifications:
- Bore Size: 96mm (95.95mm)
- Compression Ratio: 13.0:1
- Part Number: 8670DA
- Lock Part Number: CW19
- Pin Part Number: WP028
- Ring Set Part Number: 960ADS-2
- Rod Part Number: P4010
- Stroke: 62.10mm
- Clearance: 0.05mm
- OEM Compression Ratio: 12.0:1
- Dome Volume: +5.60 cm³
- Compression Height: 23.60mm
Cross-Reference OEM Part Numbers:
- 13001-0073
- 4901M09600
