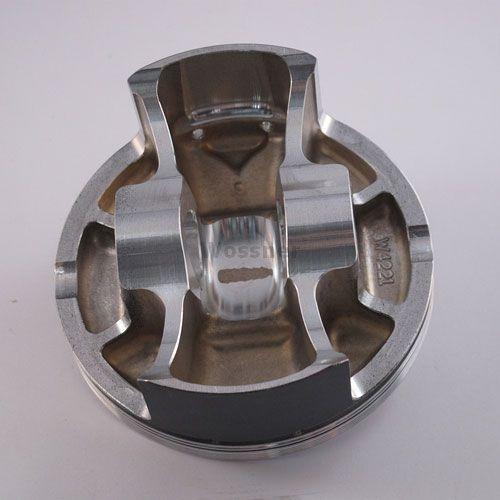

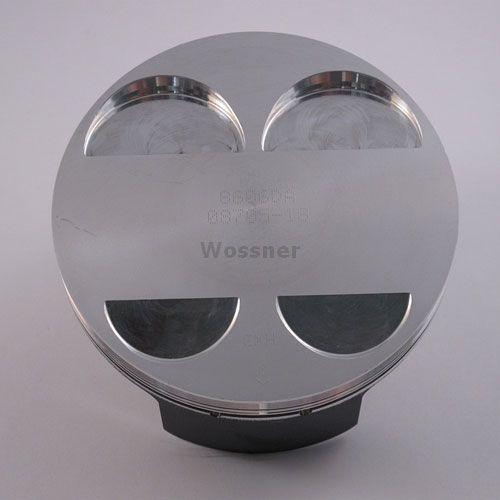

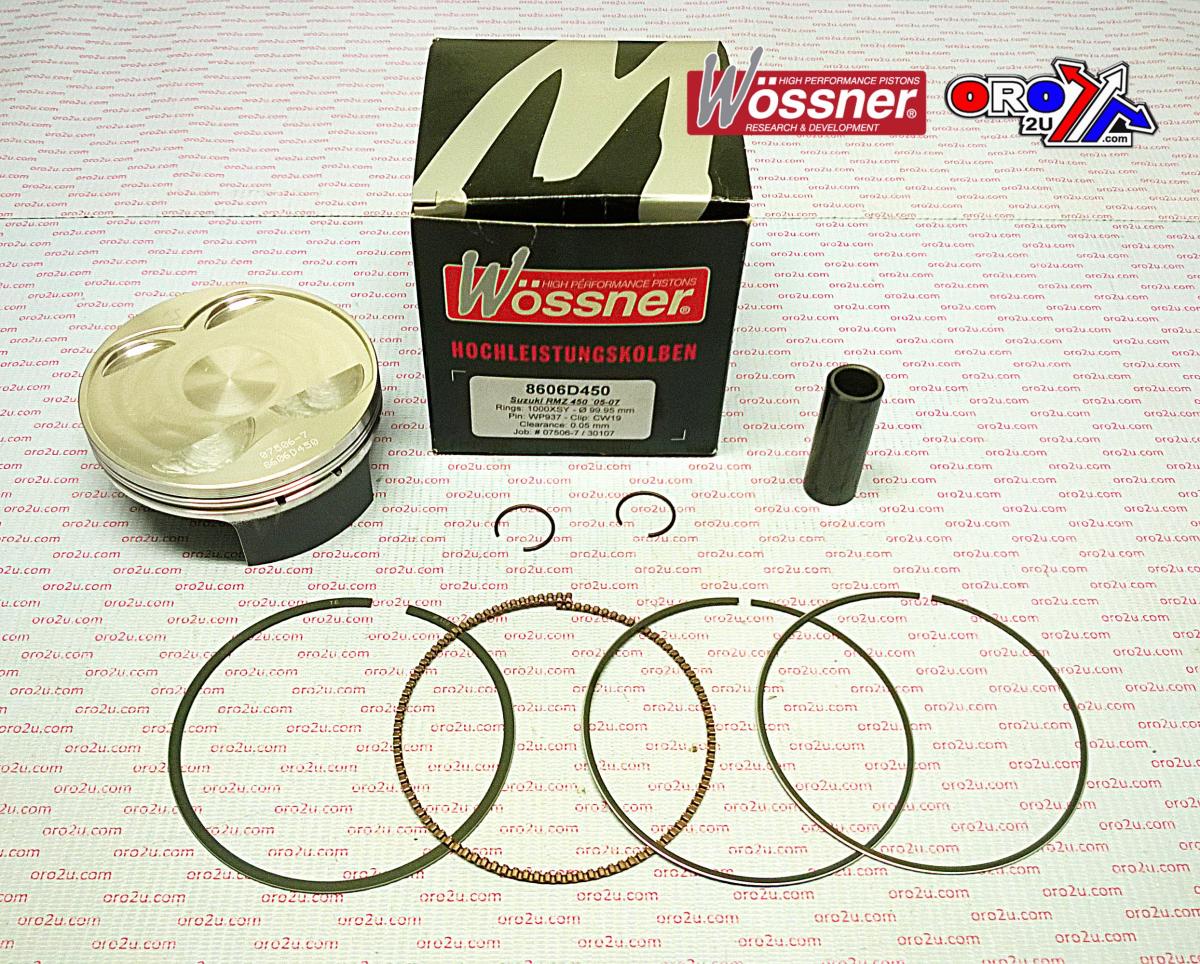

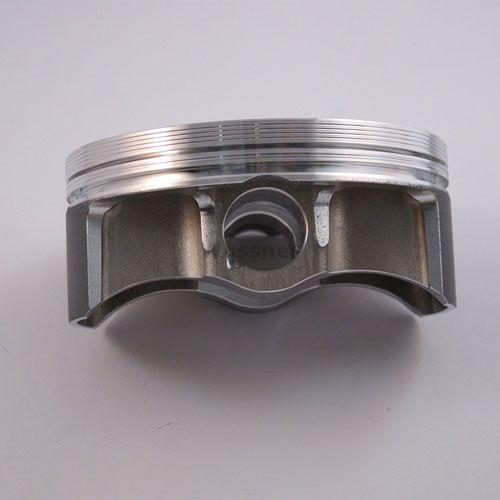

PISTON KIT 05-07 RMZ450 95.50, FORGED WOSSNER 8606DA, 12111-35G01-0F0

£191.87Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit with a 96mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany. Features: Forged piston for superior strength and design, optimized heat transfer to cylinder walls, elliptical design for uniform bearing surface and even thrust load distribution. Specifications: Bore 96mm, standard size piston (PN# 8606DA), lock part number CW19, pin part number WP037, ring set part number 955XSY, displacement 449 cm³, stroke 62.60mm, clearance 0.04mm, Wossner compression ratio OEM, OEM compression ratio 12.00:1, dome volume -3.10 cm³, compression height 22.30mm. Cross-reference OEM part number 12111-35G01-0F0.

Specifications
SKU
56-W185.P0.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (3)

MakeModelYear
SUZUKIRM-Z 4502005
SUZUKIRM-Z 4502006
SUZUKIRM-Z 4502007
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
95.50mm
Variant Id
254898
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit for Suzuki RM-Z 450

Enhance the performance and durability of your Suzuki RM-Z 450 with this high-quality Wossner forged piston kit. Engineered for precision and strength, this kit is designed to optimize combustion and provide superior heat management for demanding riding conditions.

Key Features:

  • Forged Construction: Crafted from premium forged aluminum for exceptional strength, resistance to wear, and a lightweight design.
  • Optimized Heat Transfer: Features a design that promotes efficient heat transfer to the cylinder walls, preventing localized hot spots and improving overall engine cooling.
  • Elliptical Design: The piston's elliptical shape ensures a uniform bearing surface even under extreme heat expansion, distributing thrust loads evenly and preventing piston collapse.
  • German Manufacturing: Built to exacting standards in Germany, guaranteeing precision engineering and long-lasting reliability.
  • Standard Size: This kit includes a standard size piston for a precise fit.

Specifications:

  • Bore Diameter: 96mm
  • Piston Part Number: 8606DA
  • Lock Ring Part Number: CW19
  • Pin Part Number: WP037
  • Ring Set Part Number: 955XSY
  • Engine Displacement: 449 cm³
  • Stroke: 62.60mm
  • Recommended Piston Clearance: 0.04mm
  • Dome Volume: -3.10 cm³
  • Compression Height: 22.30mm
  • OEM Compression Ratio: 12.00:1

Cross-Reference OEM Part Numbers:

  • 12111-35G01-0F0
