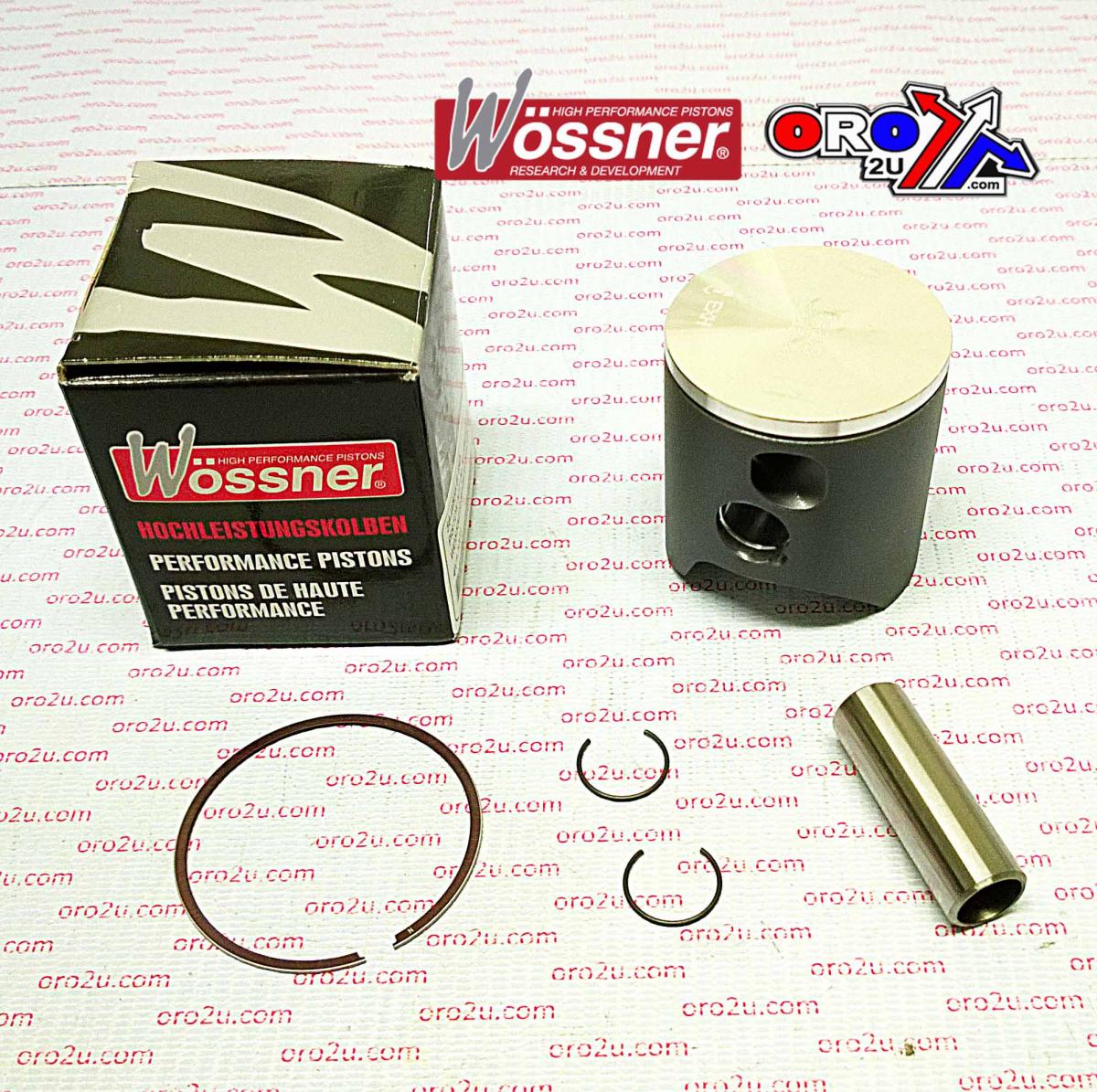

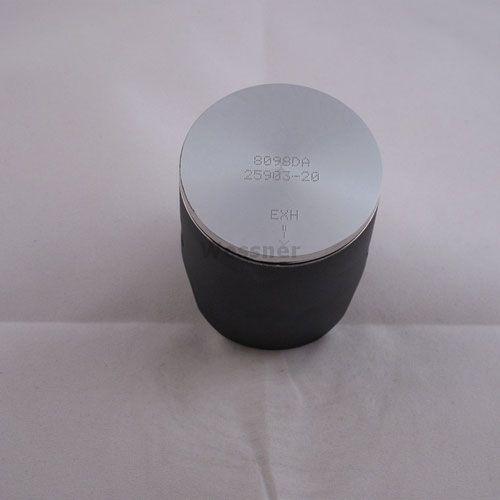

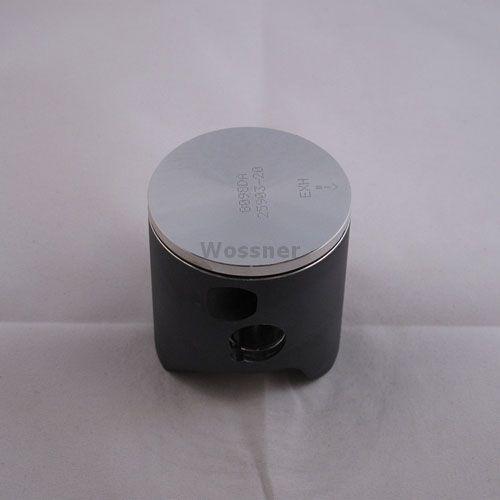

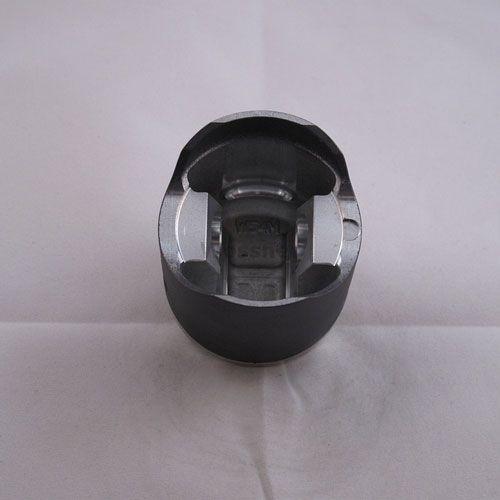

PISTON KIT 04-10 RM125 54.00 A, WOSSNER 8098DA SUZUKI MX 12110-36E31-0F0
The Wossner 8098DA piston kit is a standard-size forged piston with a 54.00mm bore and a 53.95mm piston diameter. This kit is designed for high strength and consistent thermal performance in two-stroke engines. Its elliptical shape ensures even expansion and load distribution, minimising wear and preventing piston collapse. Precision-manufactured in Germany, this component offers long-lasting reliability and performance under demanding conditions. Features include forged piston construction for superior durability, engineered heat transfer from the combustion chamber to cylinder walls, an elliptical design for even thrust load distribution, and high-precision manufacturing standards. Specifications include a 54.00 mm bore, 53.95 mm piston diameter, 125 cm³ displacement, 54.50 mm stroke, 0.05 mm piston clearance, 29.50 mm compression height, 2-stroke compression ratio (Wossner and OEM), CW15 lock part number, WP032 pin part number, RSB5400 ring set part number, and P2016 rod part number. Cross-reference OEM part numbers include 12110-36E31-0F0, 09104823, 835M05400, 12101-36821, 12110-36F00-0F0, 12141-36F00, 12151-01B41, and 09381-15001. The product weighs 180 grams.
- SKU
- 56-W835.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (22)
| Make | Model | Year |
|---|---|---|
| KTM | 125 SX | 2001 |
| KTM | 125 SX | 2002 |
| KTM | 125 SX | 2003 |
| KTM | 125 SX | 2004 |
| KTM | 125 SX | 2005 |
| KTM | 125 SX | 2006 |
| KTM | 125 SX | 2007 |
| KTM | 125 SX | 2008 |
| KTM | 125 SX | 2009 |
| KTM | 125 SX | 2010 |
| KTM | 125 SX | 2011 |
| KTM | 125 SX | 2012 |
| KTM | 125 SX | 2013 |
| KTM | 125 SX | 2014 |
| SUZUKI | RM 125 | 2004 |
| SUZUKI | RM 125 | 2005 |
| SUZUKI | RM 125 | 2006 |
| SUZUKI | RM 125 | 2007 |
| SUZUKI | RM 125 | 2008 |
| SUZUKI | RM 125 | 2009 |
| SUZUKI | RM 125 | 2010 |
| SUZUKI | RM 125 | 2011 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 54.00mm
- Variant Id
- 257958
FULL DESCRIPTION
Wossner Piston Kit 8098DA for Suzuki RM125
This high-performance Wossner piston kit, part number 8098DA, is engineered for Suzuki RM125 motorcycles. It features a standard 54.00mm bore and is constructed from a forged aluminum alloy for exceptional strength and durability. Designed for optimal thermal management, this piston ensures consistent performance in demanding racing and riding conditions. The precision elliptical shape of the piston aids in even load distribution and thermal expansion, contributing to reduced wear and extended engine life. Manufactured in Germany to exacting standards, this piston kit offers reliability and performance.
Key Features
- Forged piston construction for superior strength and durability.
- Engineered for efficient heat transfer from the combustion chamber to the cylinder walls.
- Elliptical design promotes even thrust load distribution and minimizes localized stress.
- High-precision manufacturing standards achieved in Germany.
Specifications
- Bore: 54.00 mm
- Piston Diameter: 53.95 mm
- Displacement: 125 cm³
- Stroke: 54.50 mm
- Piston Clearance: 0.05 mm
- Compression Height: 29.50 mm
- Lock Part Number: CW15
- Pin Part Number: WP032
- Ring Set Part Number: RSB5400
- Rod Part Number: P2016
Cross-Reference OEM Part Numbers
- 12110-36E31-0F0
- 09104823
- 835M05400
- 12101-36821
- 12110-36F00-0F0
- 12141-36F00
- 12151-01B41
- 09381-15001
