PISTON KIT 04-09 KX125 54.00 A, WOSSNER 8167DA KAWASAKI MX 13001-0009
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

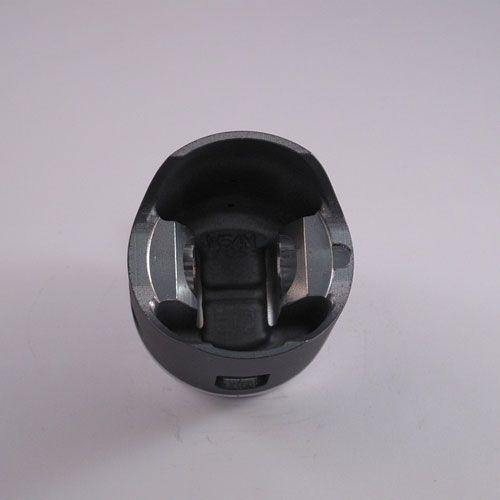

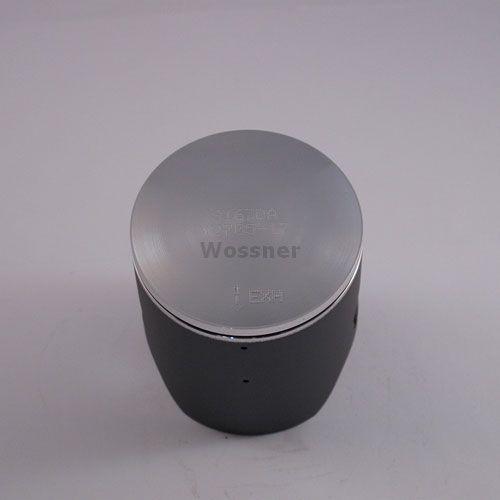

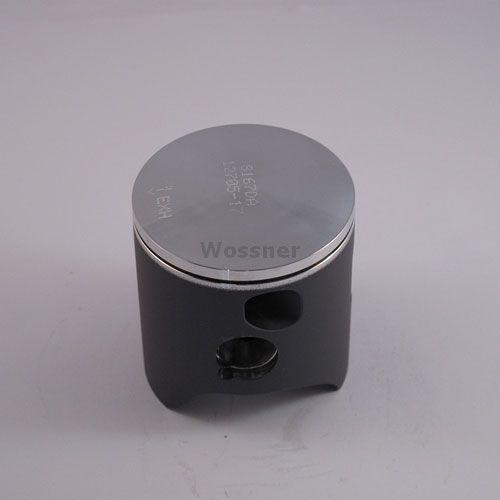

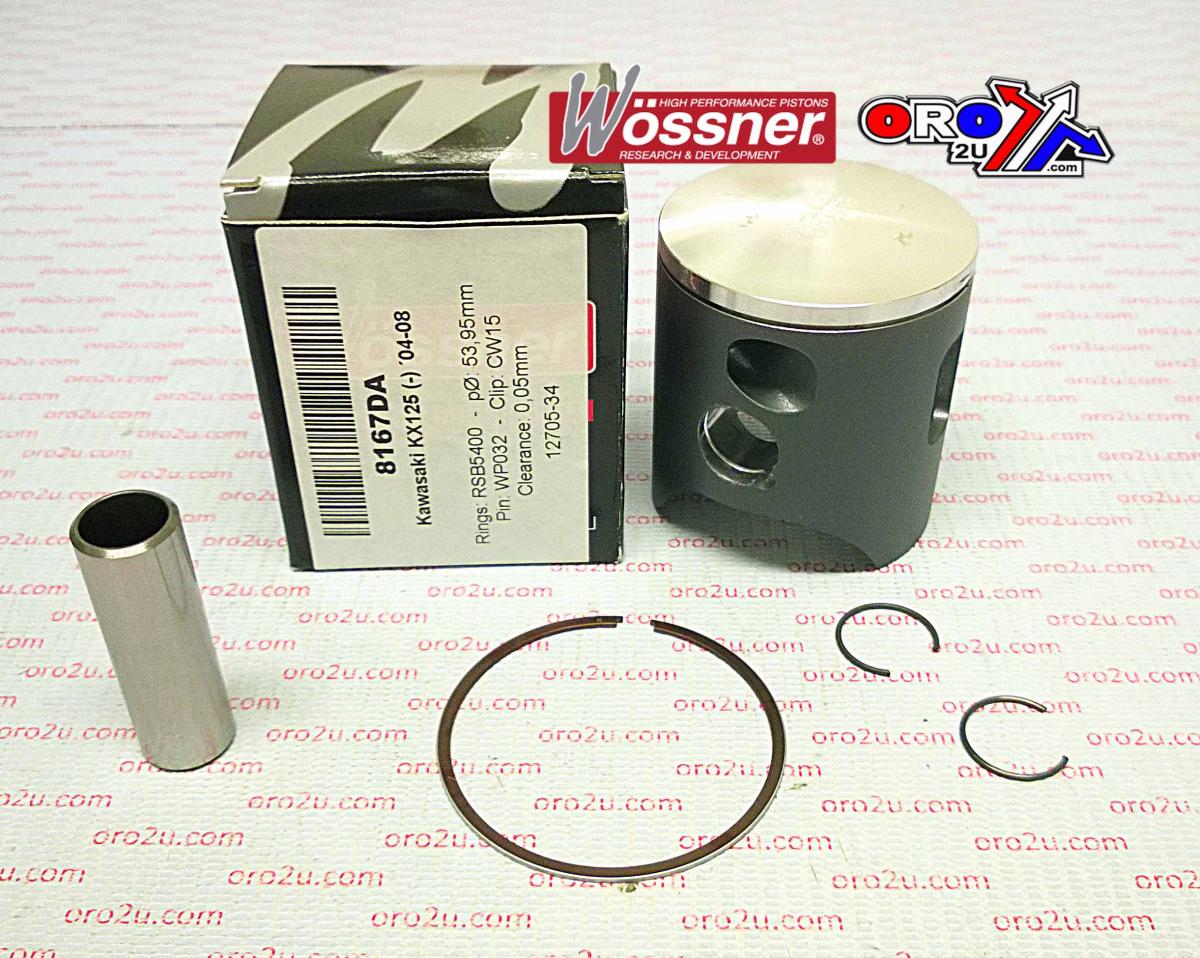

Wossner 8167DA piston kit is a standard-size forged piston with a 54.00mm bore and 53.95mm piston diameter. It features an elliptical design for uniform bearing surface and to prevent piston collapse. The kit includes lock part number CW15, pin part number WP032, ring set part number RSB5400, and connecting rod kit part number P2010. Specifications include a 125 cm³ displacement, 54.50 mm stroke, 0.05 mm piston clearance, 29.30 mm compression height, and a 2-stroke compression ratio. Manufactured in Germany. Cross-reference OEM part numbers: 13001-0009, 09104857, 834M05400.
- SKU
- 56-W834.A.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (9)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 125 | 2001 |
| KAWASAKI | KX 125 | 2002 |
| KAWASAKI | KX 125 | 2003 |
| KAWASAKI | KX 125 | 2004 |
| KAWASAKI | KX 125 | 2005 |
| KAWASAKI | KX 125 | 2006 |
| KAWASAKI | KX 125 | 2007 |
| KAWASAKI | KX 125 | 2008 |
| KAWASAKI | KX 125 | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 54.00mm
- Variant Id
- 257942
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KX125 (2004-2009)
Enhance the performance and reliability of your Kawasaki KX125 with this premium Wossner forged piston kit. Engineered for the 2004-2009 model years, this standard-size piston is designed to meet the demanding needs of high-performance two-stroke engines.
Key Features:
- Forged Piston Construction: Offers superior strength and durability for extended service life under demanding conditions.
- Optimized Thermal Efficiency: Designed for effective heat transfer from the combustion chamber to the cylinder walls, crucial for consistent performance.
- Elliptical Design: Ensures a uniform bearing surface and prevents piston collapse by adapting to thermal expansion, significantly reducing the risk of engine failure.
- Precision Manufacturing: Proudly manufactured in Germany to exacting standards, ensuring exceptional quality and precision.
Specifications:
- Bore: 54.00 mm
- Piston Diameter: 53.95 mm
- Display Displacement: 125 cm³
- Stroke: 54.50 mm
- Piston Clearance: 0.05 mm
- Compression Height: 29.30 mm
- Compression Ratio (Wossner and OEM): 2-stroke
- Lock Part Number: CW15
- Pin Part Number: WP032
- Ring Set Part Number: RSB5400
- Connecting Rod Kit Part Number: P2010
