PISTON KIT 04-08 KFX700 82mm, WOSSNER 8679DA KAWASAKI 13001-1658
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
The Wossner 8679DA forged piston kit features an 82.00mm bore and is designed for high-compression applications. Made in Germany, this piston offers enhanced strength and improved thermal performance through its advanced forging and elliptical design. Features include a forged piston designed for high-compression performance, engineered for efficient heat transfer to cylinder walls, an elliptical profile that ensures uniform pressure distribution during heat expansion, and minimizes localized pressure and reduces the risk of piston collapse. Manufactured in Germany. Specifications include a bore of 82.00 mm, actual bore diameter of 81.93 mm, display of 697 cm³, hub stroke of 66.00 mm, clearance of 0.07 mm, compression height of 26.30 mm, dome volume of +3.20 cm³, Wossner compression ratio of 11.30:1, and OEM compression ratio of 9.90:1. Theoretical weight is not specified. Cross-reference OEM part numbers include Piston: 8679DA, Lock: CW20, Pin: WP038, Ring Set: 820XSY, Part No.: 56-W4896.WO, and OEM Reference: 13001-1658, 4896M08200.
- SKU
- 56-W4896.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (12)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KFX 700 | 2004 |
| KAWASAKI | KFX 700 | 2005 |
| KAWASAKI | KFX 700 | 2006 |
| KAWASAKI | KFX 700 | 2007 |
| KAWASAKI | KFX 700 | 2008 |
| KAWASAKI | KFX 700 | 2009 |
| KAWASAKI | KFX 700 | 2010 |
| KAWASAKI | KVF PRAIRIE 700 | 2004 |
| KAWASAKI | KVF PRAIRIE 700 | 2005 |
| KAWASAKI | KVF PRAIRIE 700 | 2006 |
| SUZUKI | LT V TWIN PEAKS F 700 | 2004 |
| SUZUKI | LT V TWIN PEAKS F 700 | 2005 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 82mm
- Variant Id
- 256308
FULL DESCRIPTION
Wossner Forged Piston Kit - High Compression Performance
This Wossner forged piston kit is engineered for superior performance in high-compression applications. Manufactured in Germany, it features an 82.00mm bore and an advanced forging process for enhanced strength and improved thermal efficiency. The elliptical design ensures uniform pressure distribution, minimizing stress and reducing the risk of piston collapse during heat expansion.
Key Features:
- Forged piston for high-compression power enhancement
- Optimized for efficient heat transfer to cylinder walls
- Elliptical profile for balanced pressure during expansion
- Reduces localized pressure points and the risk of piston failure
- German manufacturing ensures quality and durability
Specifications:
- Bore: 82.00 mm
- Actual Bore Diameter: 81.93 mm
- Displacement: 697 cm³
- Stroke: 66.00 mm
- Clearance: 0.07 mm
- Compression Height: 26.30 mm
- Dome Volume: +3.20 cm³
- Wossner Compression Ratio: 11.30:1
- OEM Compression Ratio: 9.90:1

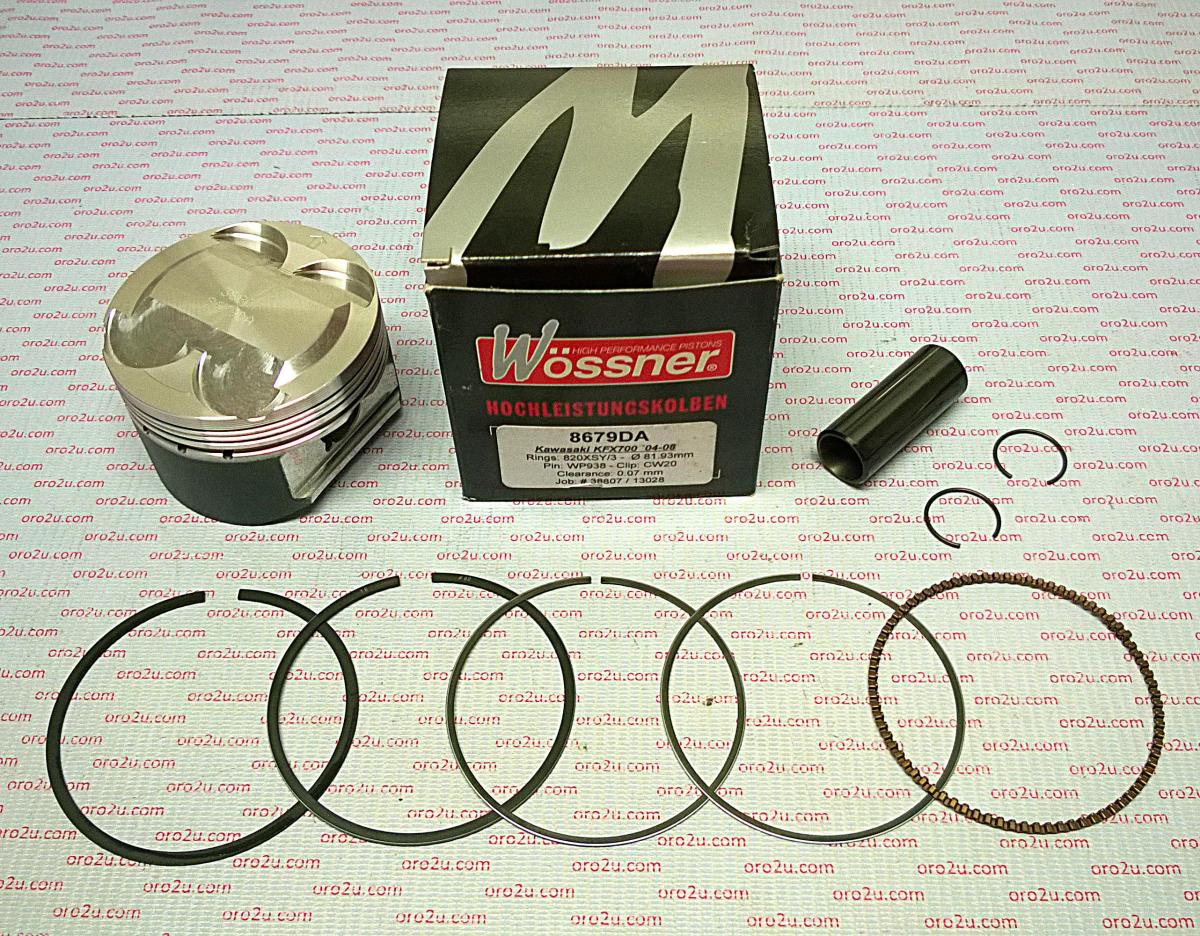

Component Details:
- Piston Part Number: 8679DA
- Lock Ring: CW20
- Piston Pin: WP038
- Ring Set: 820XSY
Cross-Reference OEM Part Numbers:
- 13001-1658
- 4896M08200
