PISTON KIT 04-05 TRX450 94.00, FORGED WOSSNER 8609DC
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner 94.02mm forged piston kit designed for efficient heat transfer and uniform expansion. Features an elliptical design to distribute thrust loads evenly and prevent piston collapse. Manufactured in Germany to high-quality standards. Bore size 94.02mm (93.97mm), oversize +0.02mm, displacement 450cc, stroke 64.80mm, clearance 0.05mm, compression ratio OEM (10.50:1), dome volume -0.70cm³, compression height 26.00mm. Includes lock part number CW21, pin part number WP051, ring set part number 940XSY, gasket part number D4009, and rod part number P4022. Weight 460g.
- SKU
- 56-W131+00C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 94mm
- Variant Id
- 254629
FULL DESCRIPTION

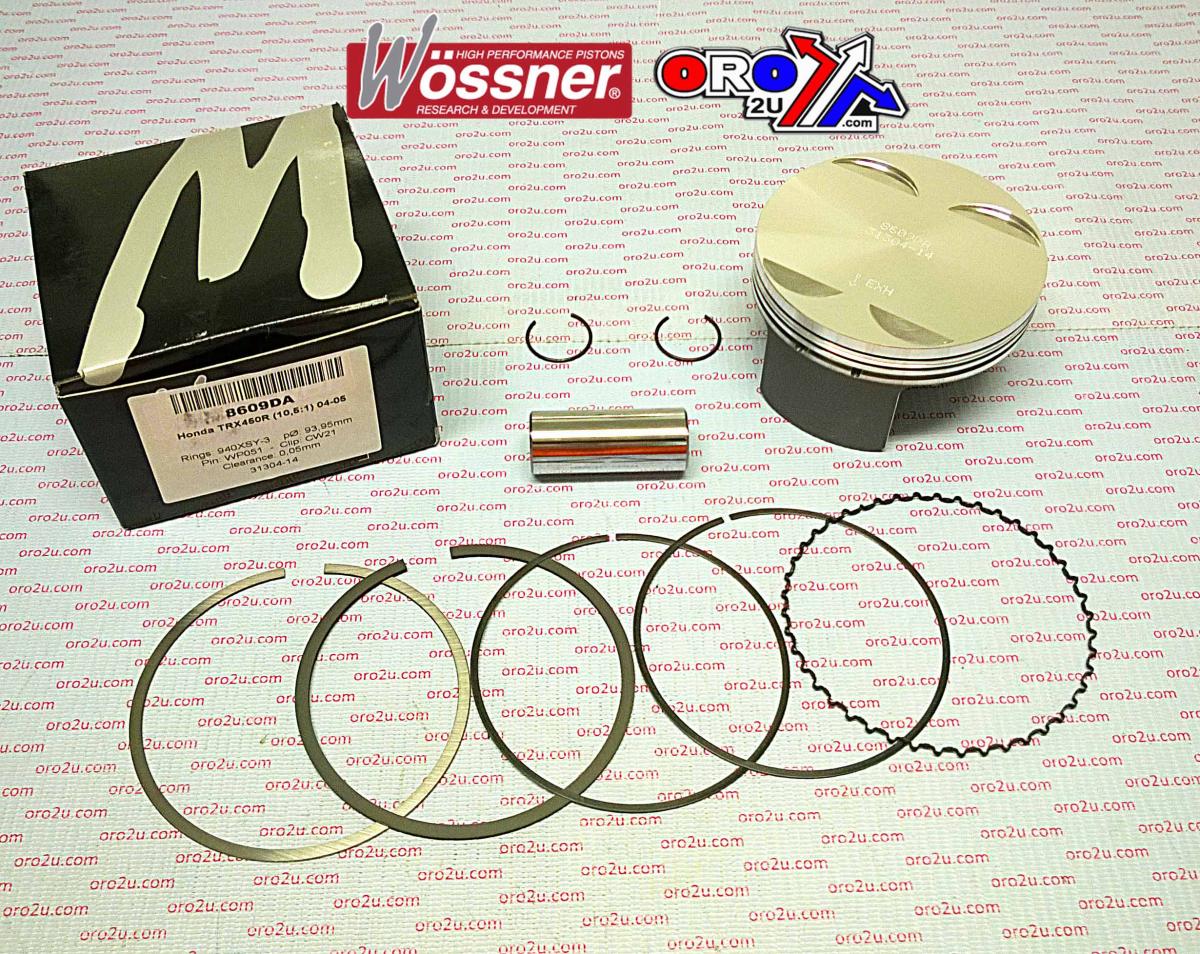

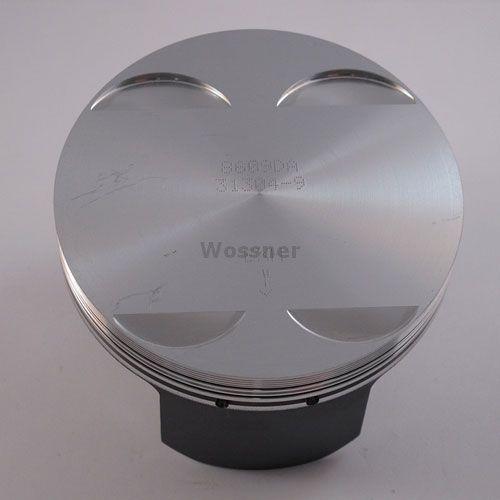

Wossner Forged Piston Kit for Honda TRX 450R (2004-2005)
Enhance the performance and durability of your Honda TRX 450R with this premium forged piston kit from Wossner. Engineered with precision in Germany, this piston is designed to deliver superior strength and optimized combustion efficiency for your 450cc engine.
The advanced elliptical design of the Wossner piston ensures uniform bearing surface distribution, effectively reducing localized pressure and preventing piston collapse. This design also promotes efficient heat transfer to the cylinder walls, leading to uniform expansion and improved overall engine reliability.
Key Features:
- Wossner Forged Piston: Offers exceptional strength and long-lasting durability for demanding applications.
- Optimized Heat Transfer: Promotes uniform expansion and efficient combustion.
- Elliptical Design: Guarantees even thrust load distribution, minimizing wear and preventing piston collapse.
- Precision Engineering: Manufactured to exacting standards in Germany for reliable performance.
Specifications:
- Bore Size: 94.02mm (93.97mm)
- Oversize: +0.02mm
- Displacement: 450cc
- Stroke: 64.80mm
- Clearance: 0.05mm
- Compression Ratio: OEM (10.50:1)
- Dome Volume: -0.70cm³
- Compression Height: 26.00mm
- Lock Part Number: CW21
- Pin Part Number: WP051
- Ring Set Part Number: 940XSY
- Gasket Part Number: D4009
- Rod Part Number: P4022
