PISTON KIT 03-09 RM250 66.40 A, WOSSNER 8086DA 2-RING SUZUKI 12110-37E42-0F0
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Wossner forged piston kit for RM250 models 2003-2012. Features a high-strength forged piston for improved reliability and performance, efficient heat transfer, and elliptical piston design for uniform load distribution. Manufactured in Germany. Specifications include a bore size of 66.40 mm, piston diameter of 66.34 mm, compression height of 38.00 mm, stroke of 72.00 mm, clearance of 0.06 mm, 2-stroke compression ratio, and 249 cm³ displacement. Cross-references include Wossner Piston Kit 8086DA, alternate reference 56-W823.A.WO, lock CW18, pin WP033, ring set RSB6640 x2, rod P2025, and OEM Part Numbers 12110-37E42-0F0, 823M06640. Weight 330g.
- SKU
- 56-W823.A.WO
- Brand
- Wossner
- Availability
- Out of Stock
Fitments (10)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 250 | 2003 |
| SUZUKI | RM 250 | 2004 |
| SUZUKI | RM 250 | 2005 |
| SUZUKI | RM 250 | 2006 |
| SUZUKI | RM 250 | 2007 |
| SUZUKI | RM 250 | 2008 |
| SUZUKI | RM 250 | 2009 |
| SUZUKI | RM 250 | 2010 |
| SUZUKI | RM 250 | 2011 |
| SUZUKI | RM 250 | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.40mm
- Variant Id
- 257879
FULL DESCRIPTION

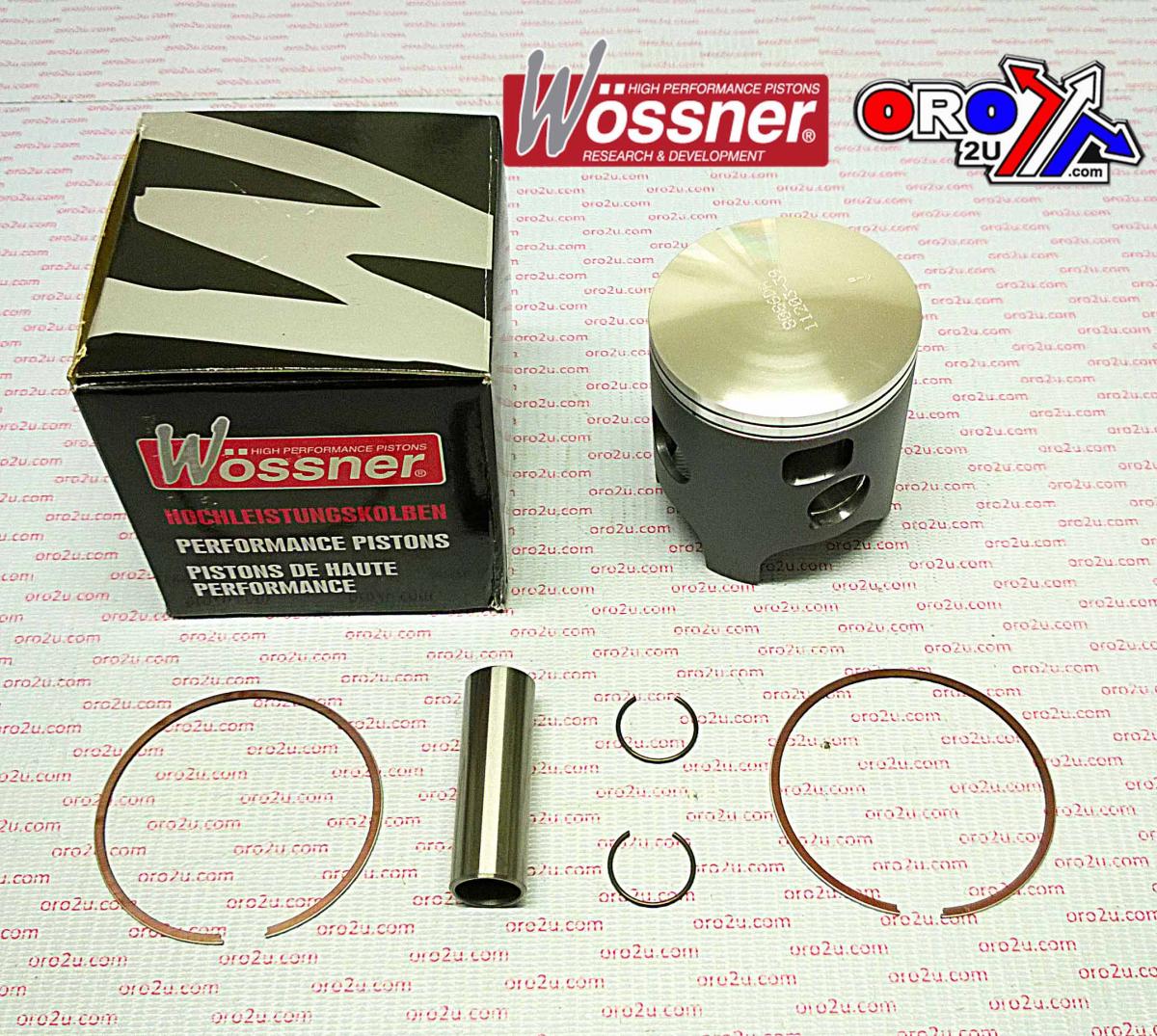

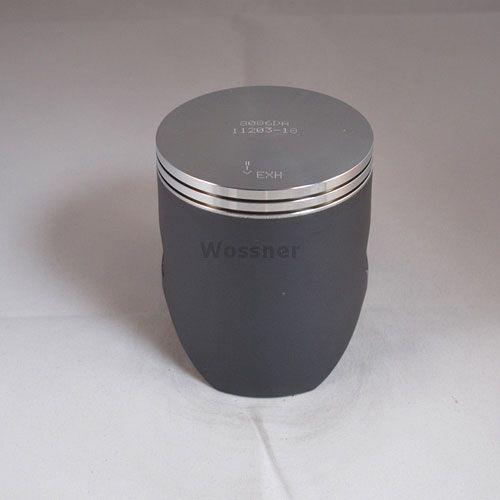

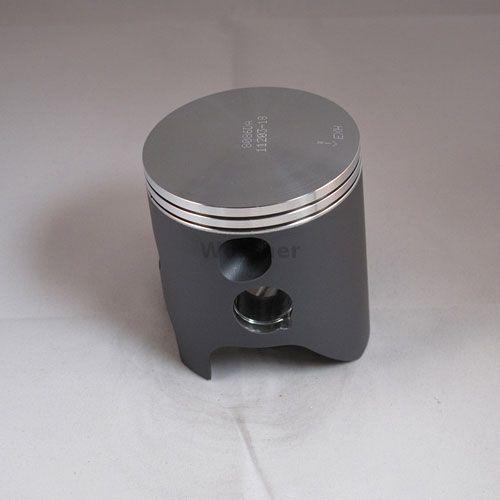

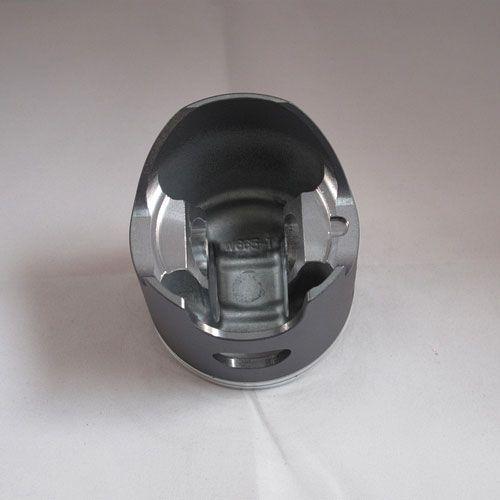

Wossner Forged Piston Kit for Suzuki RM250
Enhance the performance and durability of your Suzuki RM250 with this high-quality Wossner forged piston kit. Engineered for demanding two-stroke applications, this piston kit offers superior strength and thermal efficiency. Its precision construction ensures a perfect fit and reliable operation.
Key Features
- High-strength forged piston designed for maximum reliability and performance.
- Promotes efficient heat transfer from the combustion chamber to the cylinder walls.
- Features an elliptical piston design for uniform load distribution and to prevent piston collapse.
- Manufactured in Germany, ensuring consistent quality and precision engineering.
Specifications
- Bore Size: 66.40 mm
- Piston Diameter: 66.34 mm
- Compression Height: 38.00 mm
- Stroke: 72.00 mm
- Clearance: 0.06 mm
- Compression Ratio: 2-stroke (Wossner and OEM)
- Displacement: 249 cm³
Component Details
- Wossner Piston Kit Part Number: 8086DA
- Lock: CW18
- Pin: WP033
- Ring Set: RSB6640 x2
- Rod: P2025
Cross-Reference OEM Part Numbers
- Suzuki OEM Part Numbers: 12110-37E42-0F0, 823M06640
