PISTON KIT 03-05 KTM 450 97.00, FORGED WOSSNER 8560D200

£191.87Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner 97.00mm forged piston kit engineered for strength and durability. Features optimal heat transfer for efficient combustion chamber cooling. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability. Bore Size: 97.00mm, Actual Bore Diameter: 96.96mm, Displacement: 449 cm³, Stroke: 63.40mm, Clearance: 0.04mm, Wossner Compression Ratio: OEM, OEM Compression Ratio: 12.00:1, Dome Volume: +5.80 cm³, Compression Height: 21.60mm, Lock Part Number: CW20, Pin Part Number: WP079, Ring Set Part Number: 970ADS-2. Wossner Part No: 8560D200.

Specifications
SKU
56-W4805_2.00
Brand
Wossner
Availability
In Stock (1)
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
97mm
Variant Id
256130
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

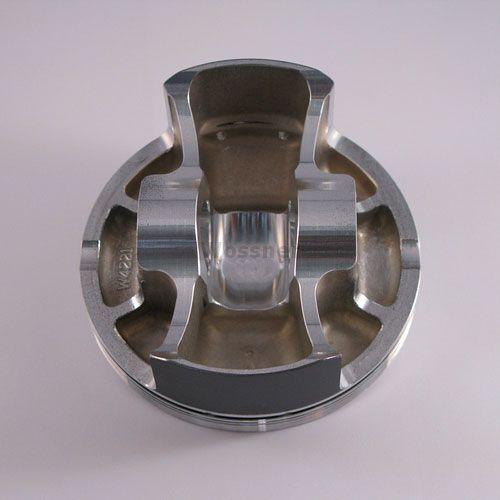

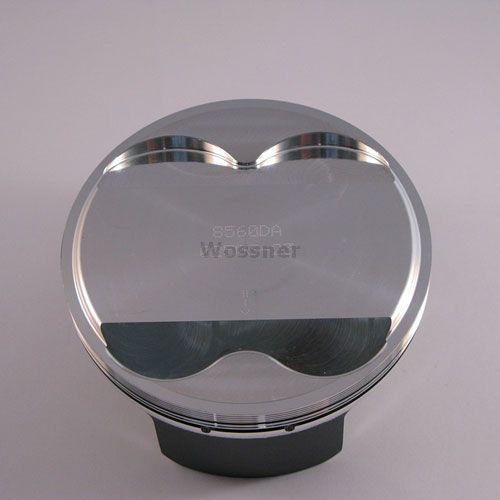

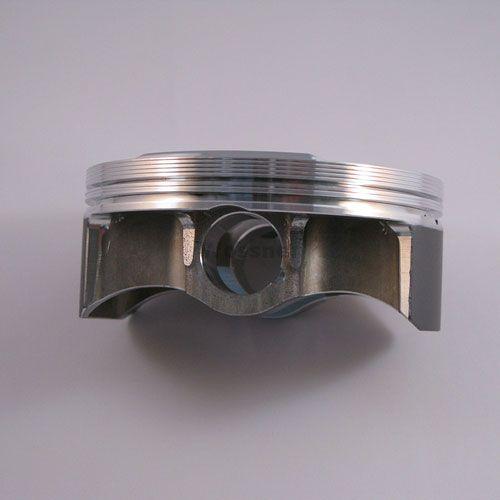

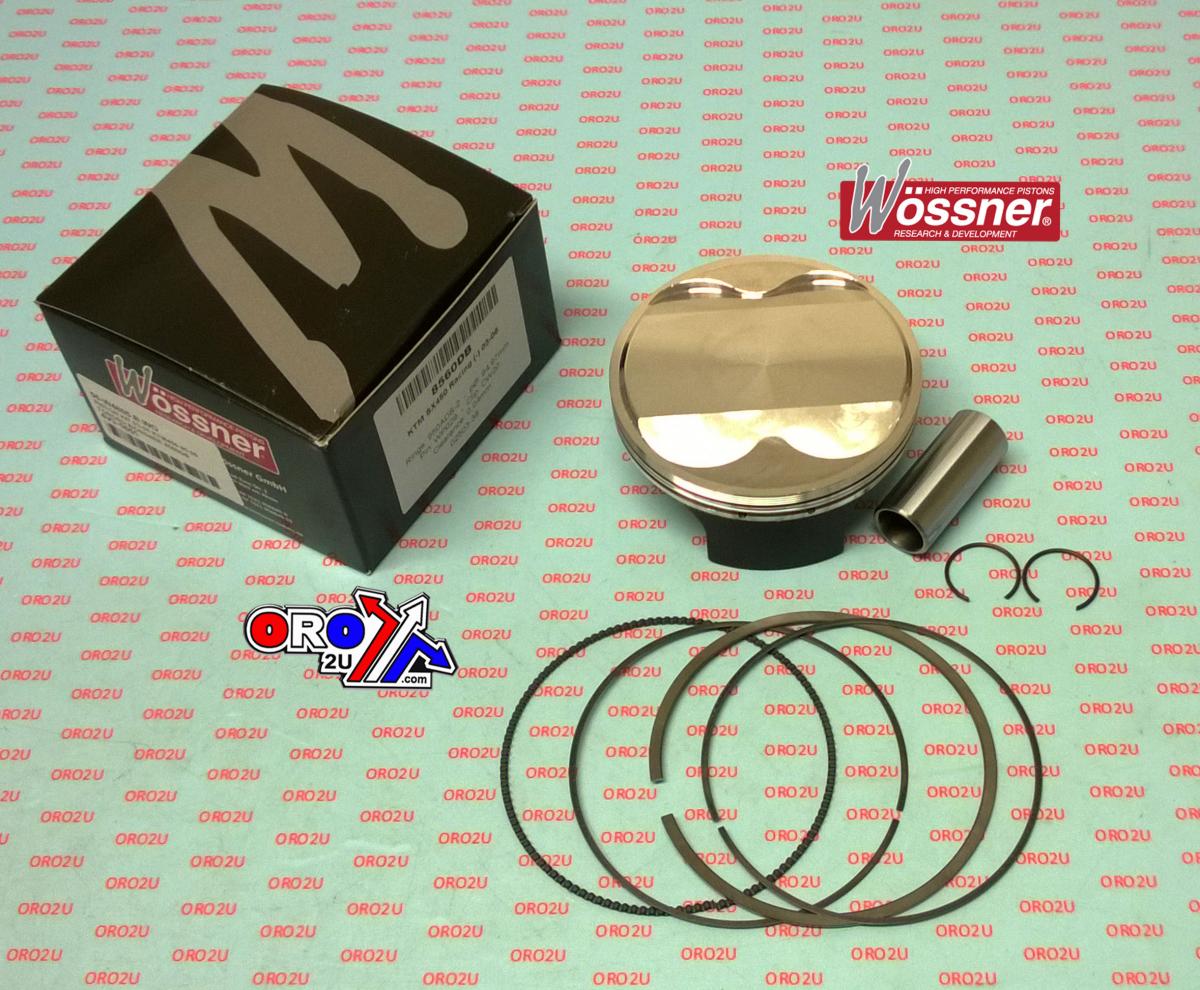

Wossner 97.00mm Forged Piston Kit

Enhance the performance and longevity of your engine with the Wossner 97.00mm forged piston kit. Engineered in Germany, this premium piston is designed for superior strength and durability under demanding conditions. Its advanced construction ensures optimal heat transfer for efficient cooling of the combustion chamber, leading to improved engine performance.

The elliptical design of this piston is a key feature, providing a uniform bearing surface. This design effectively reduces localized pressure and distributes thrust loads evenly, preventing piston collapse and ensuring consistent operation. Experience precision engineering and reliable performance with this high-quality forged piston.

Key Features:

  • Forged construction for exceptional strength and extended lifespan.
  • Optimized heat transfer capabilities for better engine cooling and performance.
  • Elliptical piston design that prevents collapse and ensures even load distribution.
  • Manufactured in Germany, adhering to strict quality and precision standards.

Specifications:

  • Bore Size: 97.00mm
  • Actual Bore Diameter: 96.96mm
  • Stroke: 63.40mm
  • Clearance: 0.04mm
  • Dome Volume: +5.80 cm³
  • Compression Height: 21.60mm
  • Lock Part Number: CW20
  • Pin Part Number: WP079
  • Ring Set Part Number: 970ADS-2
