PISTON KIT 02-18 RM85 48.00 C, WOSSNER 8103DC SUZUKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

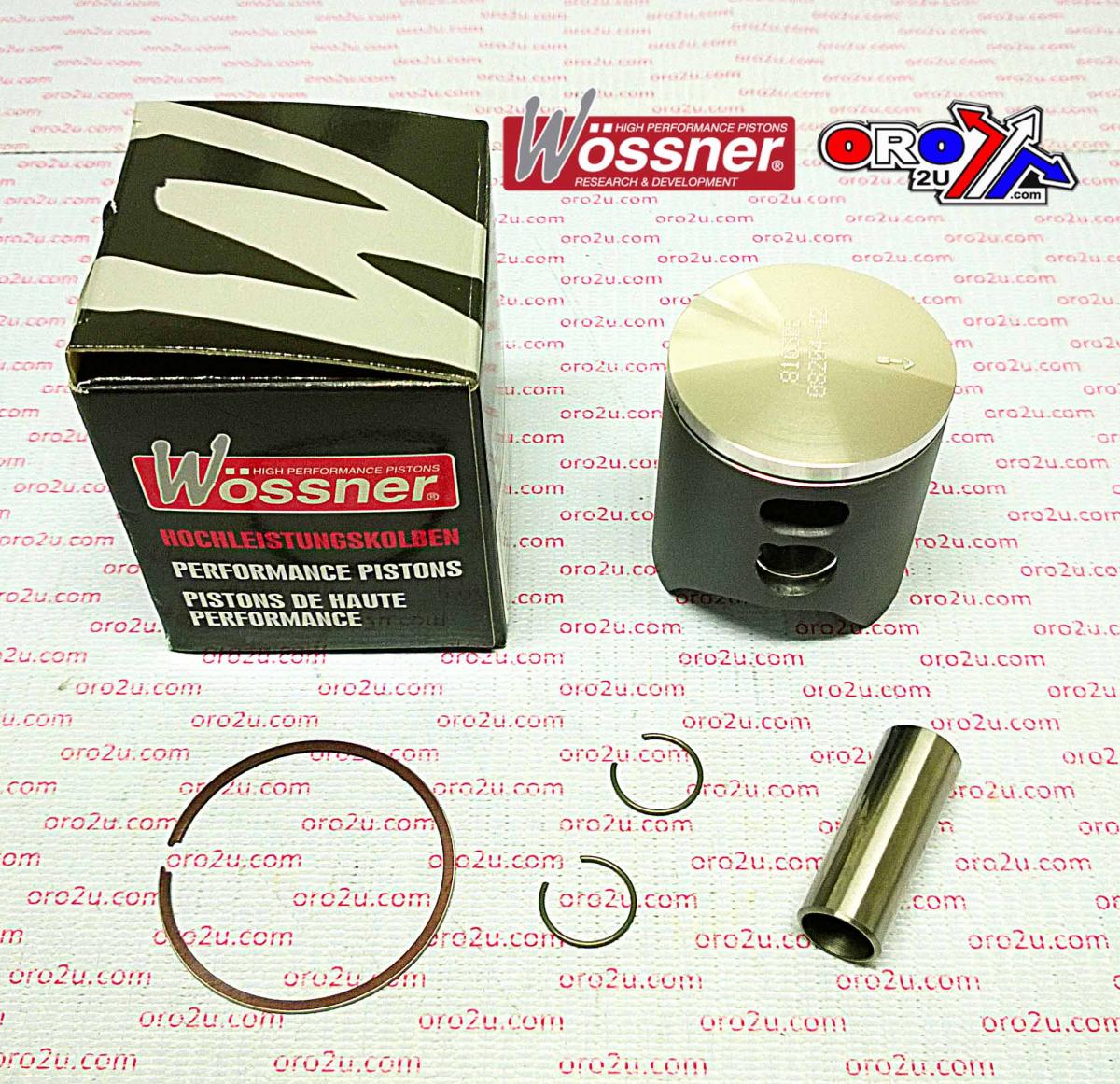

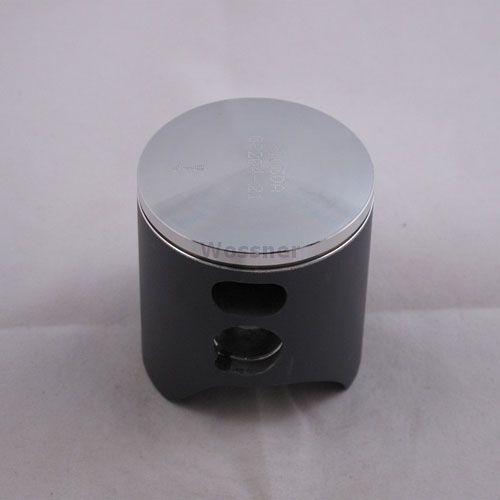

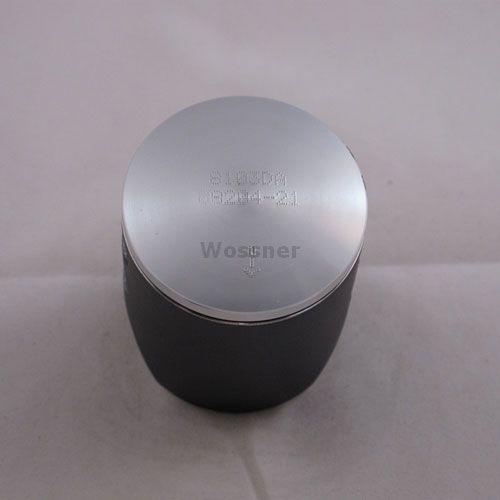

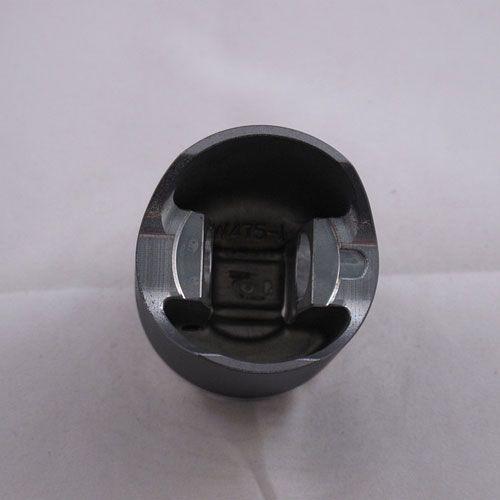

Wossner forged piston kit with a 48.02mm bore (+0.02mm oversize) for Suzuki RM85 models 2002-2018. Manufactured in Germany, this high-precision piston is optimized for performance and durability in two-stroke engines. Features forged construction for exceptional strength, optimized heat transfer, and an elliptical shape for even thrust load distribution and minimized risk of piston collapse. Specifications include a bore of 48.02mm, actual bore of 47.97mm, engine displacement of 84 cm³, stroke of 46.80mm, clearance of 0.05mm, compression ratio of 2-stroke (Wossner and OEM), compression height of 27.00mm, lock part number CW14, pin part number WP058, ring set part number RSB4800, and rod part number P2007. Weight is 156 grams.
- SKU
- 56-W806.C.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (22)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 85 | 2002 |
| SUZUKI | RM 85 | 2003 |
| SUZUKI | RM 85 | 2004 |
| SUZUKI | RM 85 | 2005 |
| SUZUKI | RM 85 | 2006 |
| SUZUKI | RM 85 | 2007 |
| SUZUKI | RM 85 | 2008 |
| SUZUKI | RM 85 | 2009 |
| SUZUKI | RM 85 | 2010 |
| SUZUKI | RM 85 | 2011 |
| SUZUKI | RM 85 | 2012 |
| SUZUKI | RM 85 | 2013 |
| SUZUKI | RM 85 | 2014 |
| SUZUKI | RM 85 | 2015 |
| SUZUKI | RM 85 | 2016 |
| SUZUKI | RM 85 | 2017 |
| SUZUKI | RM 85 | 2018 |
| SUZUKI | RM 85 | 2019 |
| SUZUKI | RM 85 | 2020 |
| SUZUKI | RM 85 | 2021 |
| SUZUKI | RM 85 | 2022 |
| SUZUKI | RM 85 | 2023 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 48.00mm
- Variant Id
- 257859
FULL DESCRIPTION
Wossner Forged Piston Kit - 48.02mm Bore
This Wossner forged piston kit is precision-engineered for high-performance two-stroke engines. Manufactured in Germany, this piston features a forged construction for exceptional strength and durability, ensuring reliability under demanding operating conditions. The elliptical profile is designed for optimal heat management and uniform load distribution, minimizing mechanical stress and preventing piston collapse.
Key Features:
- Forged construction for superior strength and longevity.
- Optimized design for efficient heat transfer.
- Elliptical piston shape ensures even thrust load distribution.
- Manufactured in Germany to high-quality standards.
Specifications:
- Bore Size: 48.02mm
- Actual Bore: 47.97mm
- Engine Displacement: 84 cm³
- Stroke: 46.80mm
- Piston Clearance: 0.05mm
- Compression Ratio: Compatible with 2-stroke (Wossner and OEM)
- Compression Height: 27.00mm
- Lock Part Number: CW14
- Pin Part Number: WP058
- Ring Set Part Number: RSB4800
- Rod Part Number: P2007
