PISTON KIT 02-04 KX250 66.40 C, WOSSNER 8088DC KAWASAKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 66.42mm bore is a +0.02mm oversized option. Precision-engineered for enhanced strength and optimal performance, it features advanced thermal management and load distribution characteristics. Manufactured in Germany, this piston kit ensures durability under extreme operating conditions and is ideal for performance rebuilds. Features: Forged for superior strength and high durability. Optimised combustion heat transfer to cylinder walls. Elliptical design enhances bearing surface consistency and prevents localised pressure. Made in Germany. Specifications: Bore: 66.42mm. Actual Bore: 66.36mm. Engine Displacement: 249 cm³. Stroke: 72.00mm. Clearance: 0.06mm. Compression Ratio: 2-stroke (Wossner and OEM). Compression Height: 37.00mm. Lock Part Number: CW18. Pin Part Number: WP033. Ring Set Part Number: RSB6640 x 2. Rod Part Number: P2022. Weight: 324g.
- SKU
- 56-W799.C.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250 | 2002 |
| KAWASAKI | KX 250 | 2003 |
| KAWASAKI | KX 250 | 2004 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.4mm
- Variant Id
- 257787
FULL DESCRIPTION

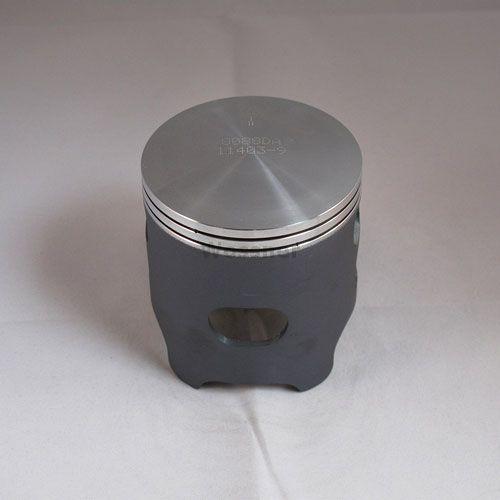

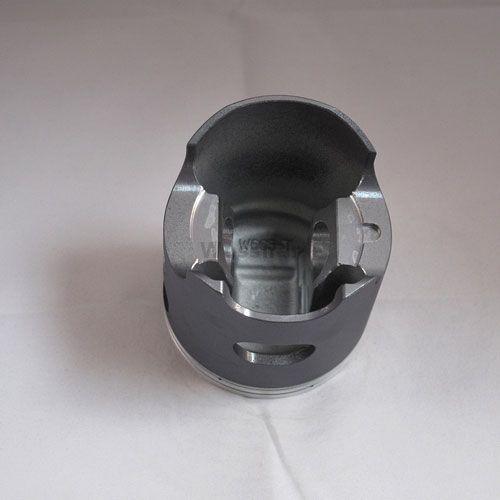

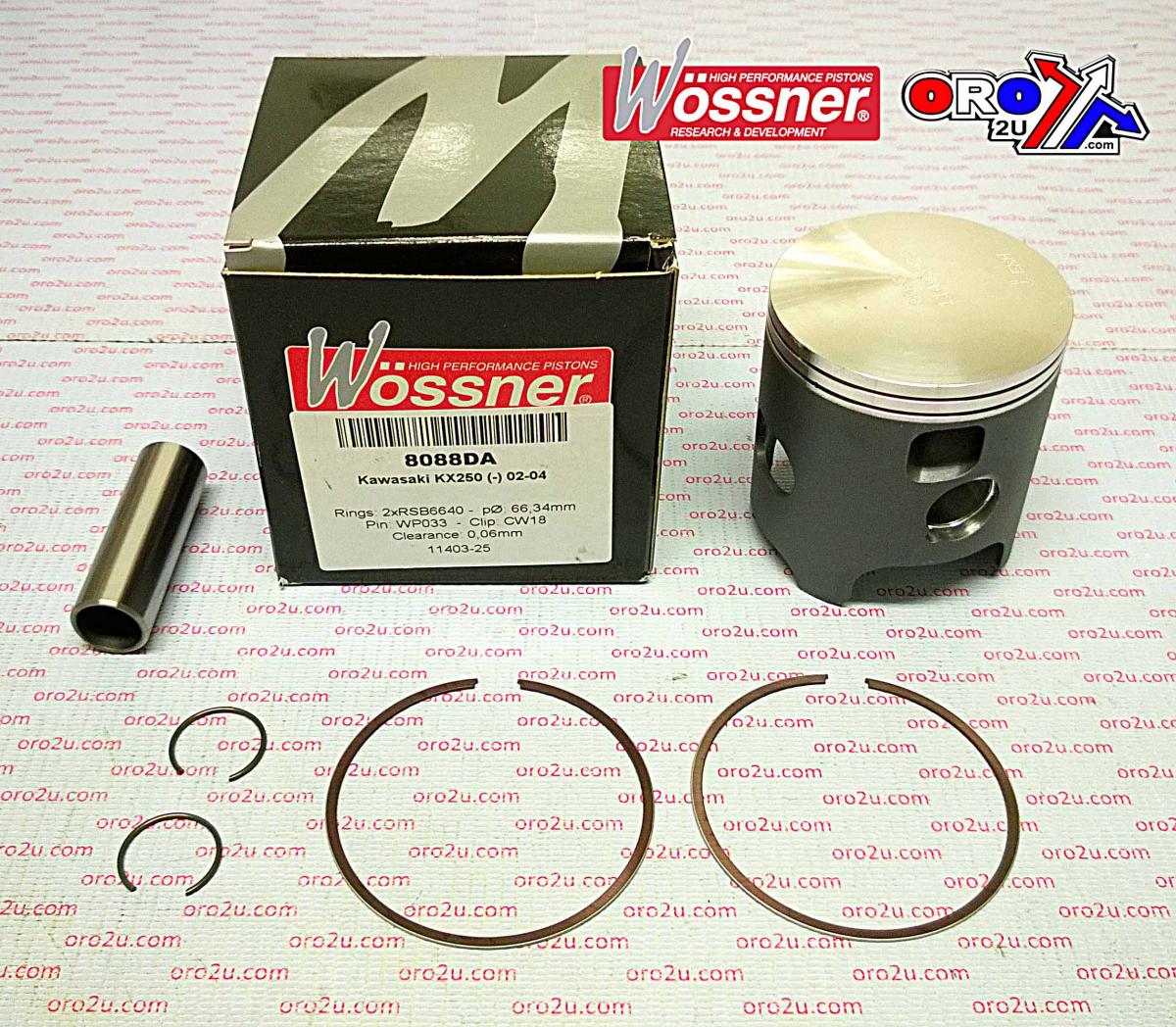

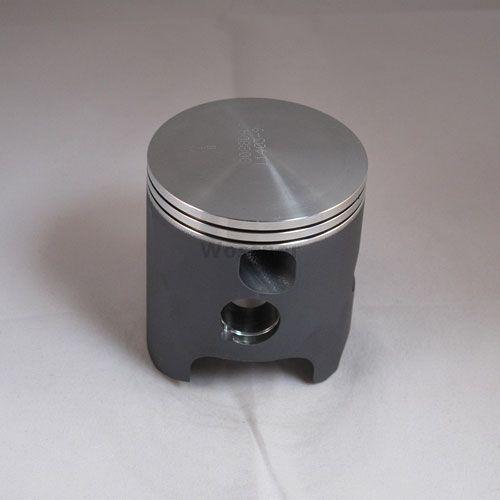

Wossner Forged Piston Kit - High Performance Rebuilds
Upgrade your engine with this Wossner forged piston kit, precision-engineered for enhanced strength and optimal performance. This kit features advanced thermal management and load distribution, ensuring durability under extreme operating conditions. Manufactured in Germany, it's the ideal choice for performance rebuilds and achieving peak engine power.
Key Features:
- Forged Construction: Provides superior strength and high durability for demanding use.
- Optimised Heat Transfer: Facilitates efficient combustion heat transfer to cylinder walls for better cooling.
- Elliptical Design: Enhances bearing surface consistency and prevents localised pressure points for smoother operation.
- German Engineering: Manufactured in Germany for guaranteed quality and reliability.
Specifications:
- Bore: 66.42mm
- Actual Bore: 66.36mm
- Engine Displacement: 249 cm³
- Stroke: 72.00mm
- Clearance: 0.06mm
- Compression Ratio: 2-stroke (Wossner and OEM)
- Compression Height: 37.00mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB6640 x 2
- Rod Part Number: P2022
